Fish Passage Site 20303798

Coordinates (dec. deg.): 60.51610°, -151.23009°
Legal Description: S005N011W21
Region: South Central
Road Name: Kalifornsky Beach Road

Datum: NAD83
Quad Name / ITM: Kenai C-4
AWC Stream #: 244-30-10100-2008
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Sep 13, 2018

Survey UPDATE-KEN30

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Lucas Byker

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:

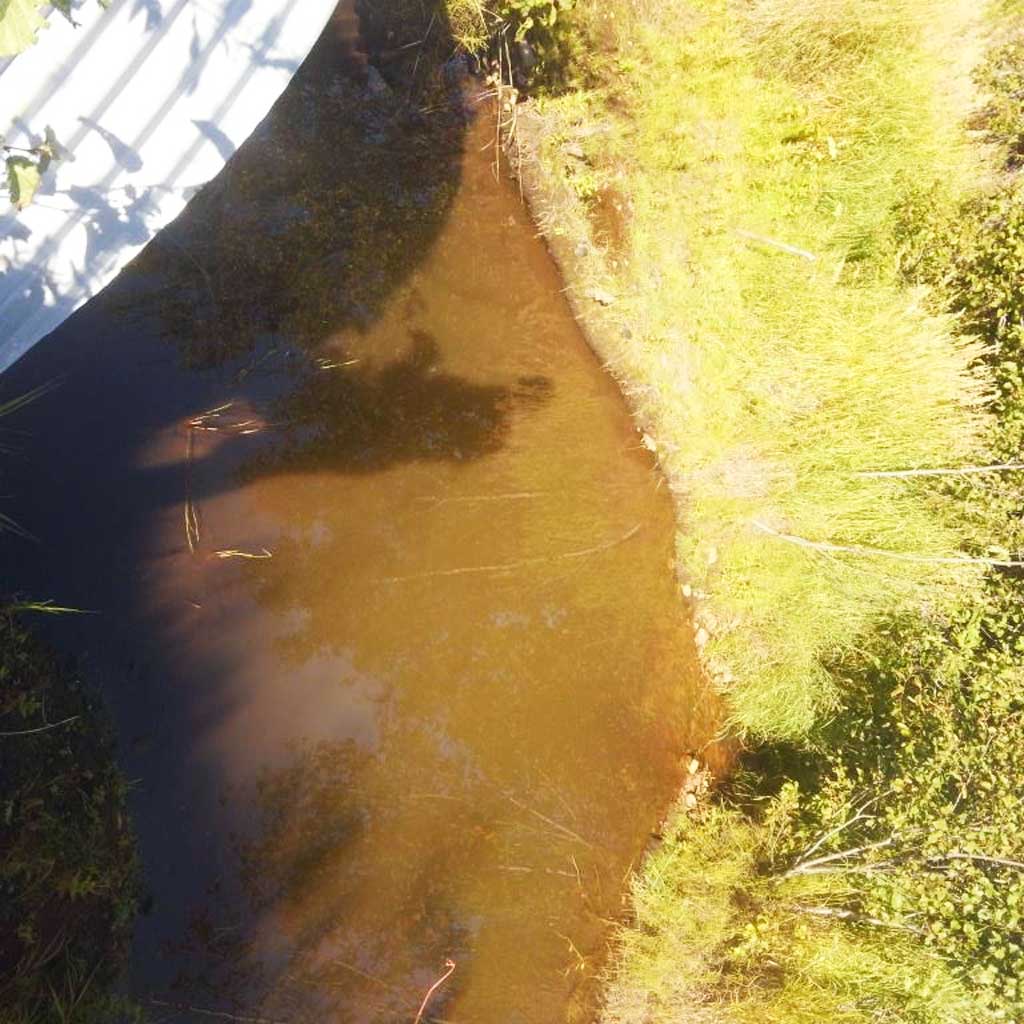

Comments: Site information and photos submitted by Lucas Byker, Habitat Biologist, ADF&G. Pooling above and below culvert.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Sand
Outlet Substrate: Sand
InletOutlet
Width(ft):8.0
Height(ft):5.25
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Maybe
Baffles Present: No
Embedded?: Maybe
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

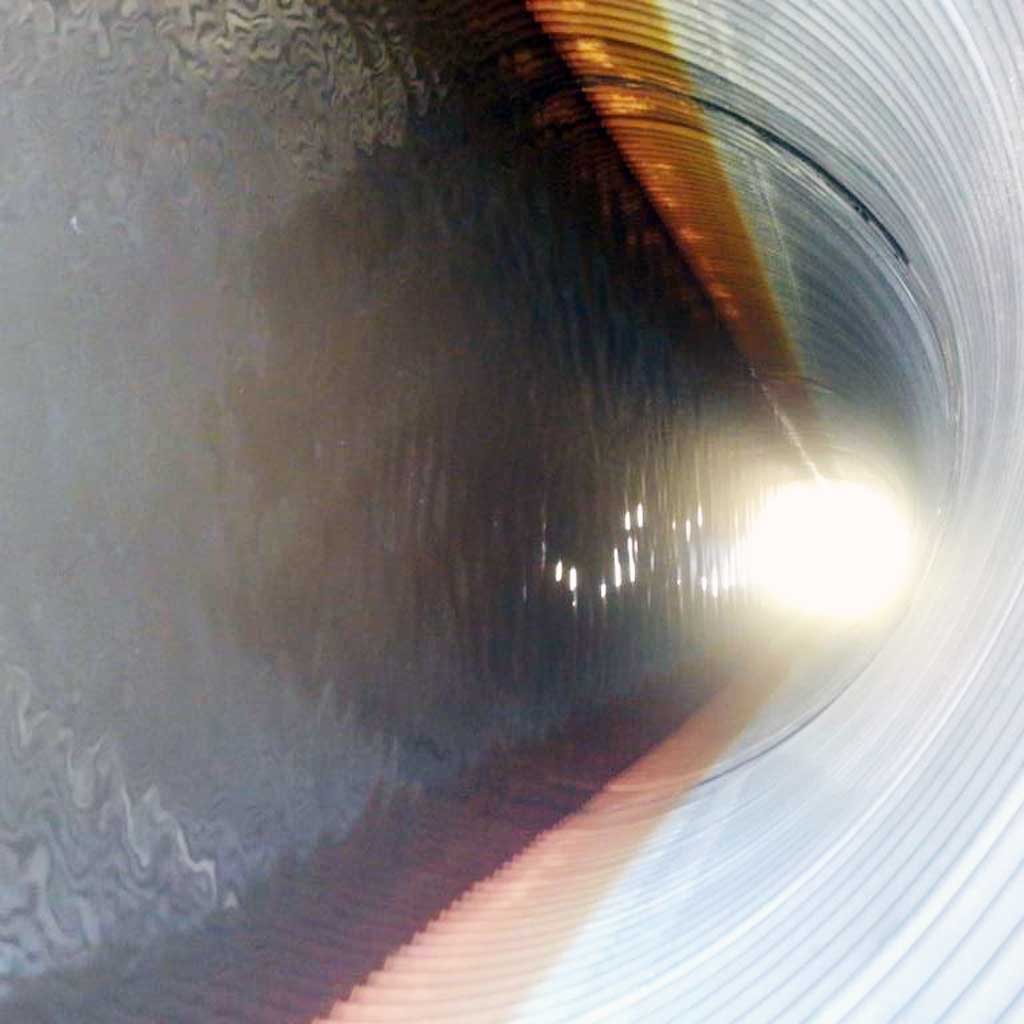

Comments: Water surface appears flat and slow moving through culvert. Culvert maybe backwatered and/or embedded. Culvert length estimated using aerial imagery at 110 ft. Culvert opening measured.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 0.3

Gear Type: Minnow Trap (B) Trap Duration(h): 0.4

Fish Observations

Species: juvenile/adult rainbow trout Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 125 Max: 125 Mean: 125
Collected/Observed by Gear Type: Upstream Minnow Trap (1)

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 180 Max: 180 Mean: 180
Collected/Observed by Gear Type: Upstream Minnow Trap (1)

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 11 Fish Measured: 11 Fork Lengths (mm) Min: 30 Max: 85 Mean: 62
Collected/Observed by Gear Type: Downstream Minnow Trap (5)  Upstream Minnow Trap (6)
