Fish Passage Site 20303794

Coordinates (dec. deg.): 60.69042°, -151.25500°
Legal Description: S007N011W17
Region: South Central
Road Name: Parson's Road

Datum: NAD83
Quad Name / ITM: Kenai C-4
AWC Stream #: 247-90-10030
Stream Name: Bishop Creek

Elevation:

Site Comments: Outlet for Parson's Lake. Mapped as Vandevere Road but submitted as Parsons Road

Survey Date: Sep 07, 2018

Survey UPDATE-PRA01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Lucas Byker

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:


Comments: Site information and photos submitted by Lucas Byker, Habitat Biologist, ADF&G. Almost undefined channel upstream and downstream from crossing.

Culvert Measurements

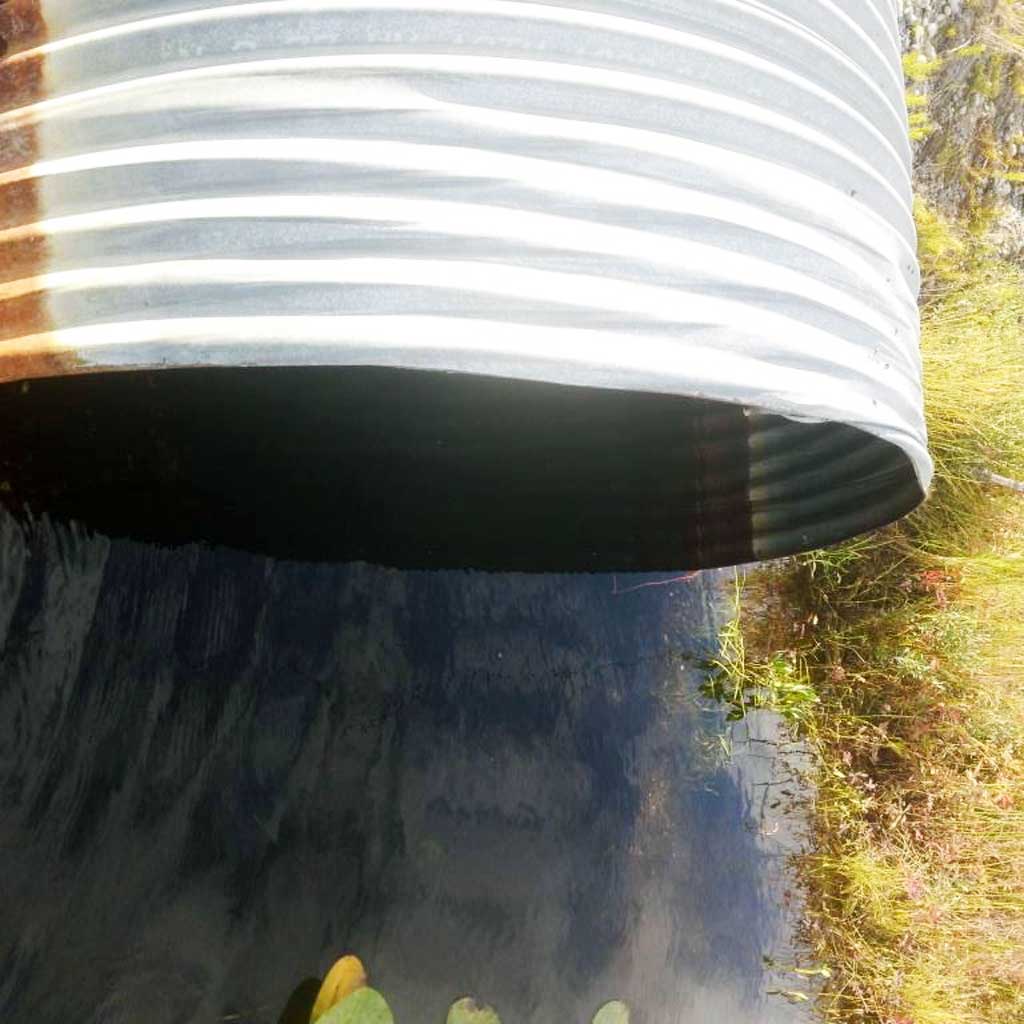

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 48.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):6.0
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Maybe
Baffles Present: No
Embedded?: Unknown
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Water looks flat through site, does not appear to be a barrier. Culvert length estimated using aerial imagery to be about 48 feet. Culvert width was measured.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 0.25

Fish Observations

Species: threespine stickleback Life History: Resident
Total Fish Observed: 3 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Upstream Minnow Trap (3)
