Fish Passage Site 20303793

Coordinates (dec. deg.): 60.71701°, -151.15951°
Legal Description: S007N011W11
Region: South Central
Road Name: Taurianen Trail

Datum: NAD83
Quad Name / ITM: Kenai C-4
AWC Stream #: 247-90-10030-2032
Stream Name: Daniels Creek

Elevation:

Site Comments: None

Survey Date: Sep 07, 2018

Survey UPDATE-TTL01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Lucas Byker

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Comments: Culvert information and photos submitted by Lucas Byker, ADFG, HB.

Culvert Measurements

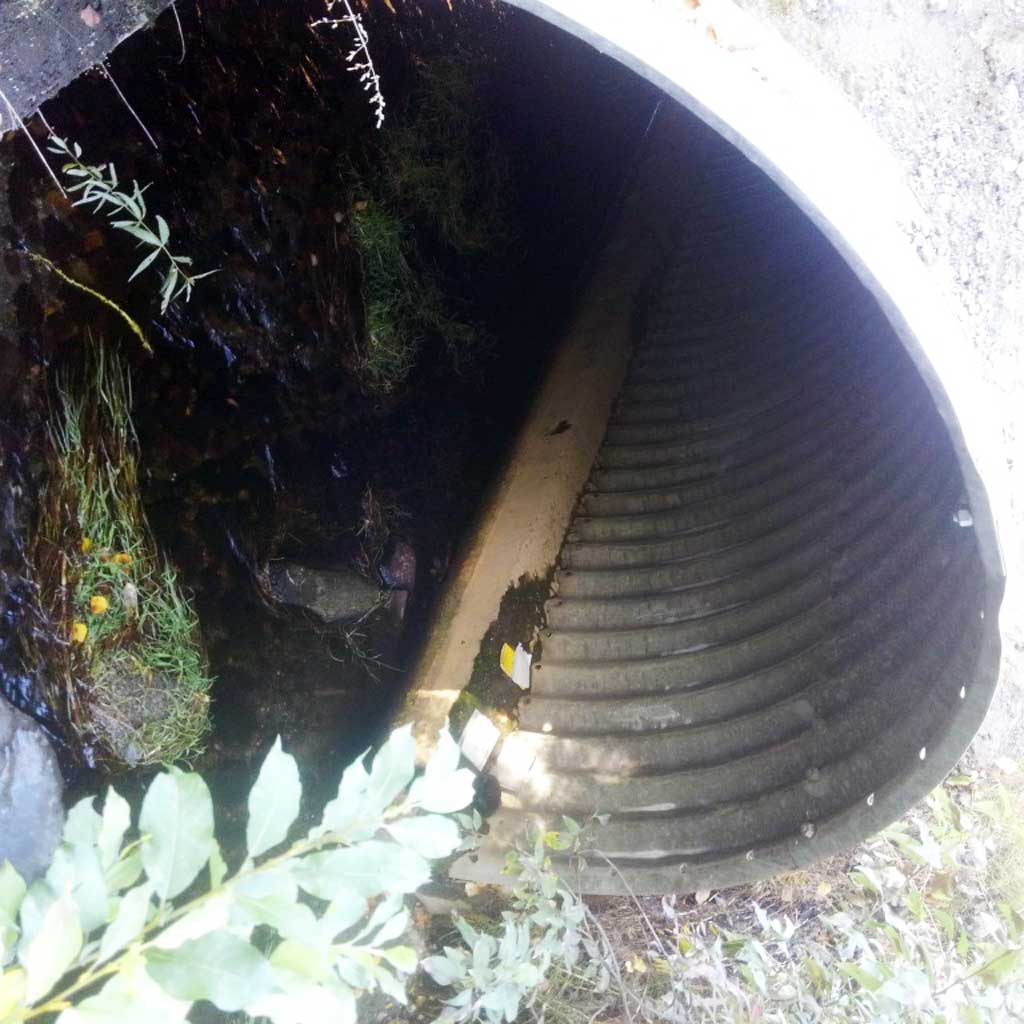

ID: 1 Structure Type: Open-bottom arch (Structural steel plate) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):8.5
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

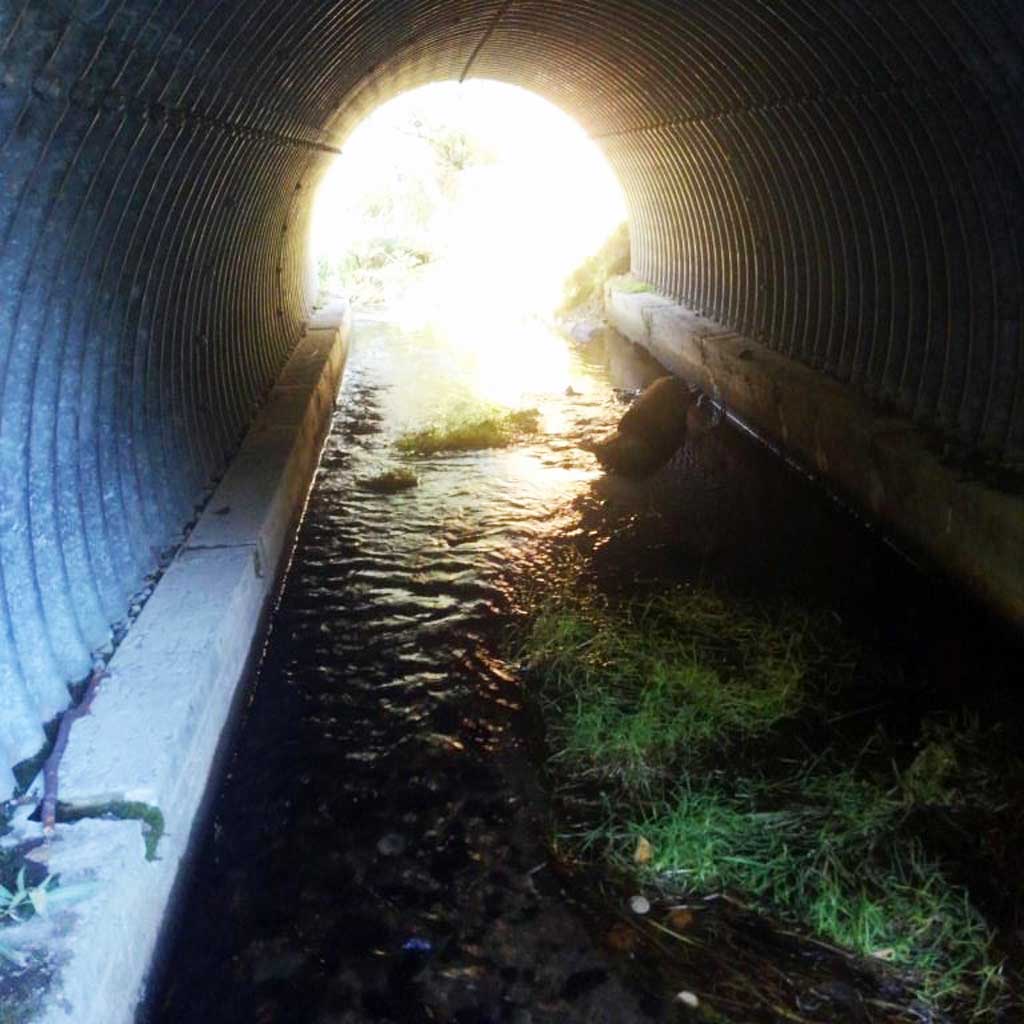

Comments: No obvious barriers to fish passage present. Open bottom arch culvert on exposed concrete footers. Cuvlert length estimated at about 50 feet. Culvert width was measured.

Stream Measurements

Stream SubstratesUpstreamDownstream

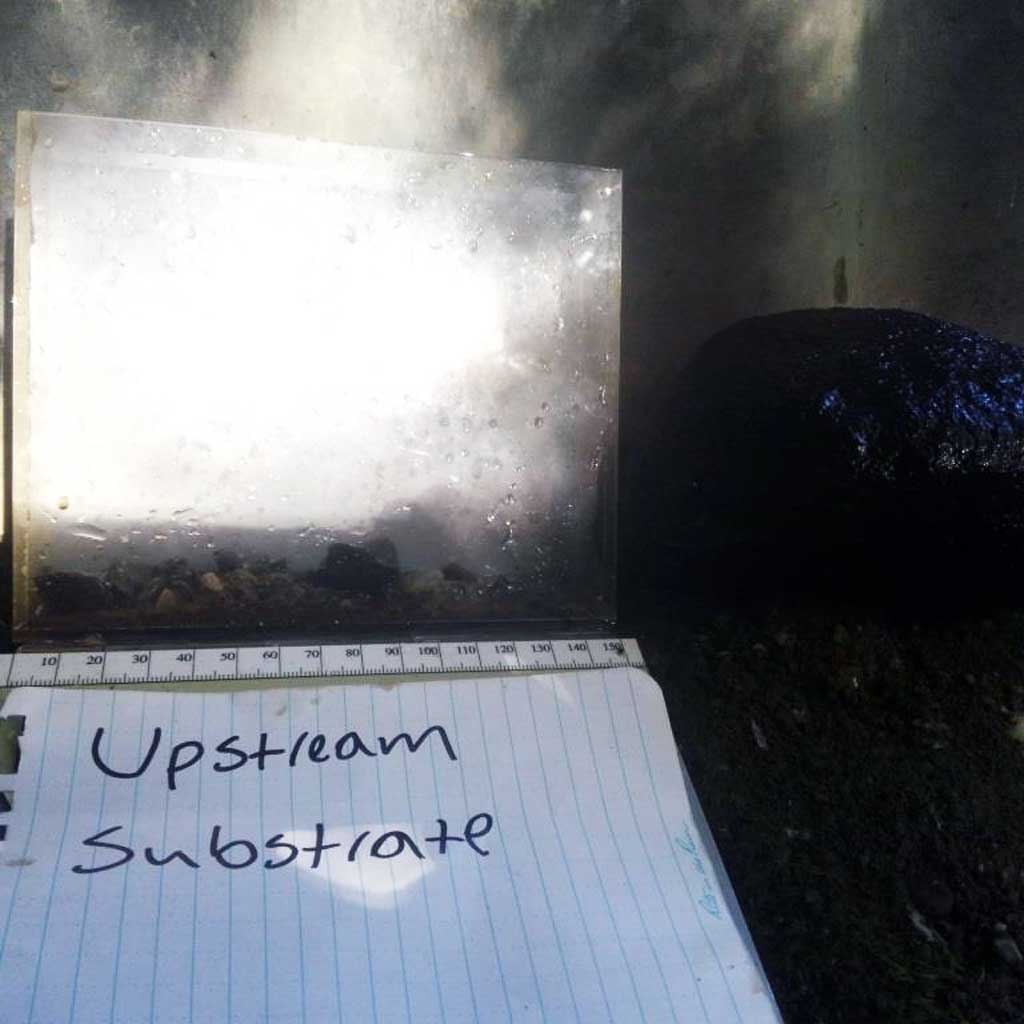

Dominant:GravelCobble
Subdominant:CobbleBoulder
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A)

Gear Type: Minnow Trap (B)

Fish Observations

Species: juvenile/adult rainbow trout Life History: Unknown
Total Fish Observed: 2 Fish Measured: 2 Fork Lengths (mm) Min: 105 Max: 130 Mean: 117
Collected/Observed by Gear Type: Upstream Minnow Trap (2)

Species: threespine stickleback Life History: Resident
Total Fish Observed: 1 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (1)
