Fish Passage Site 20303754

Coordinates (dec. deg.): 60.54675°, -150.75394°
Legal Description: S005N008W06
Region: South Central
Road Name: Driveway

Datum: NAD83
Quad Name / ITM: Kenai C-3
AWC Stream #: 244-30-10010-2063-3003
Stream Name: Unnamed

Elevation:

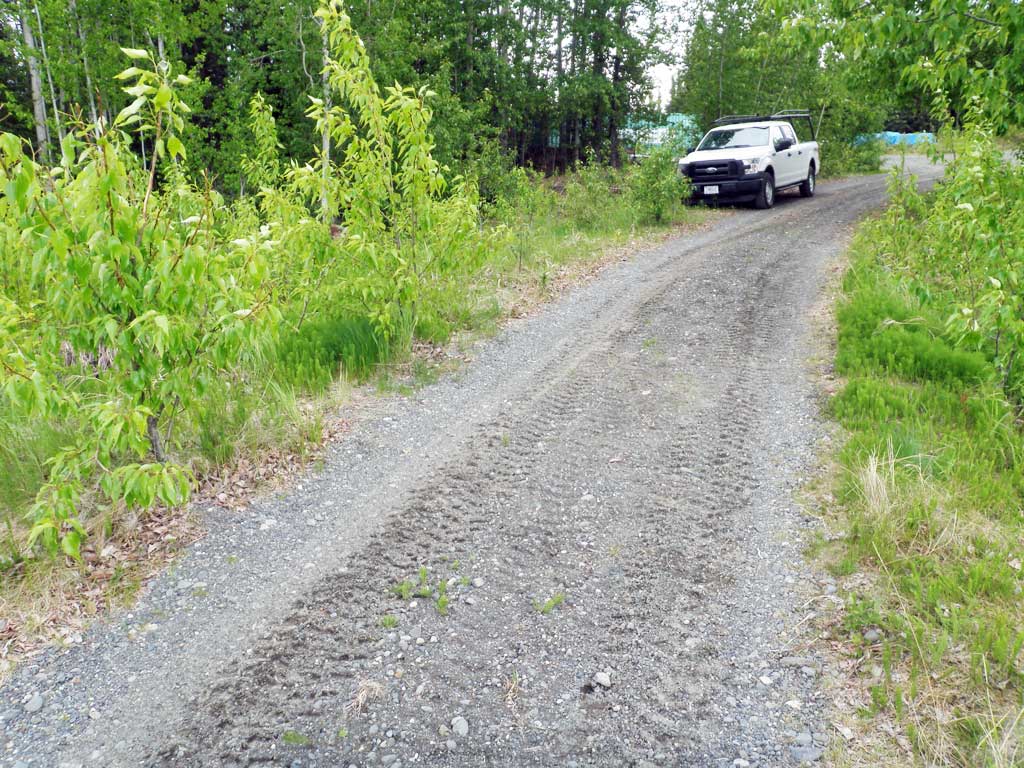

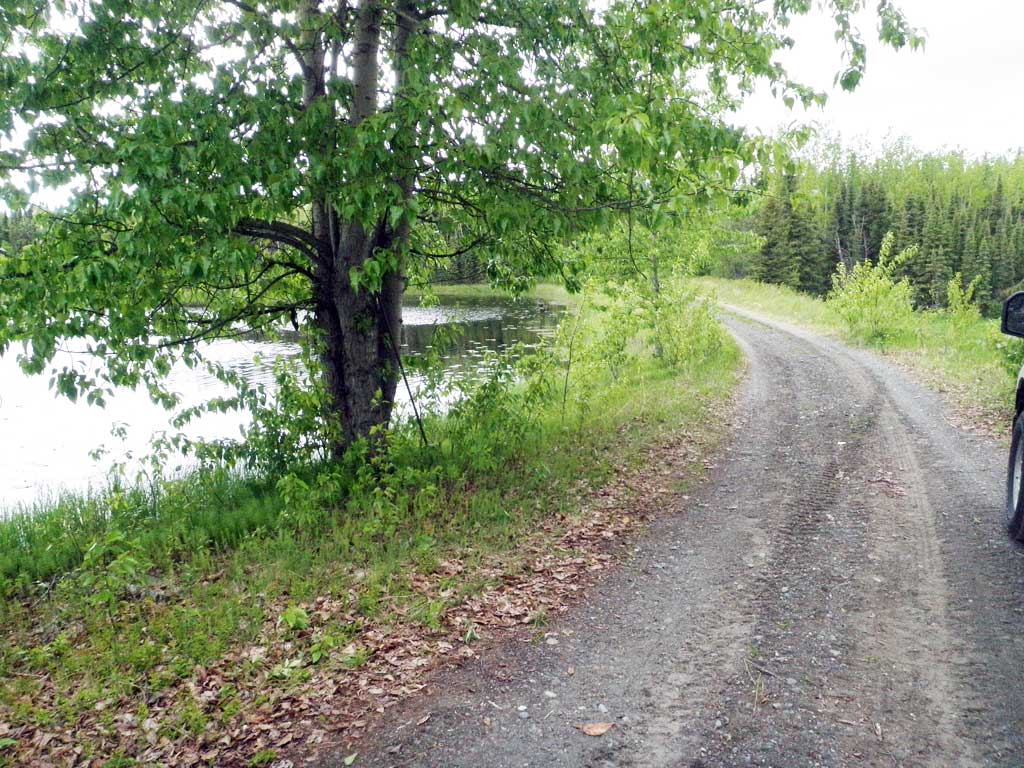

Site Comments: Site is driveway off Moose River Drive

Survey Date: Jun 11, 2017

Survey KEN17-MRD-R

Observers: Elise Idle, Maggie Schaffer

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

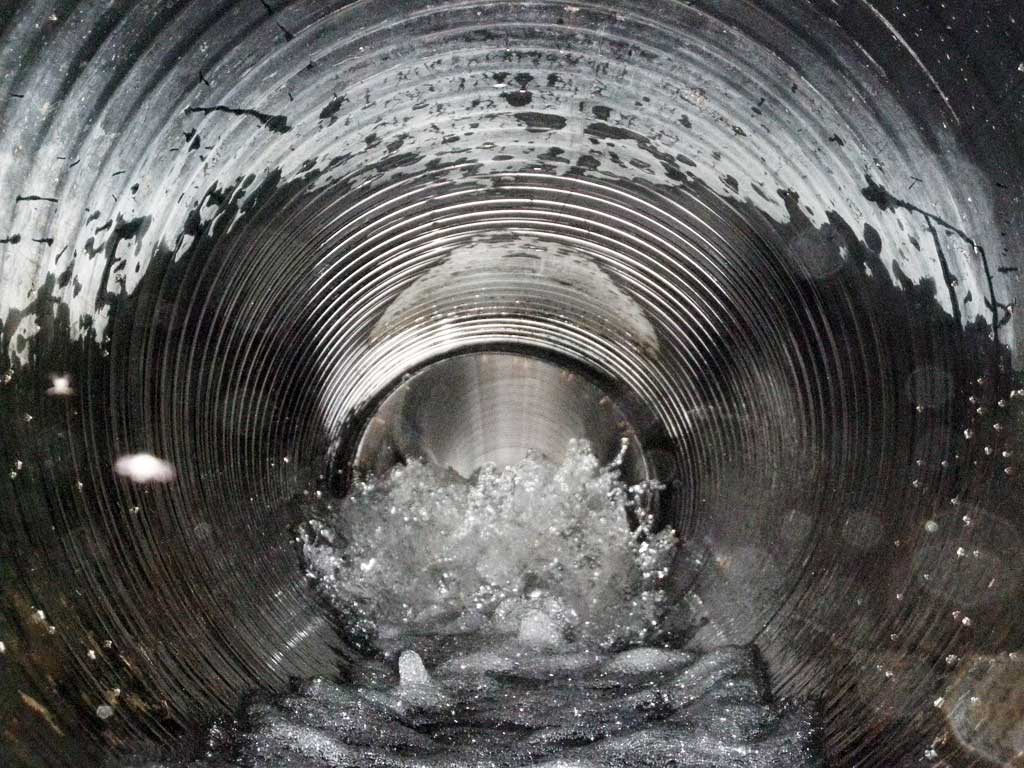

  2. Compound gradient in pipe
  3. Culvert gradient red

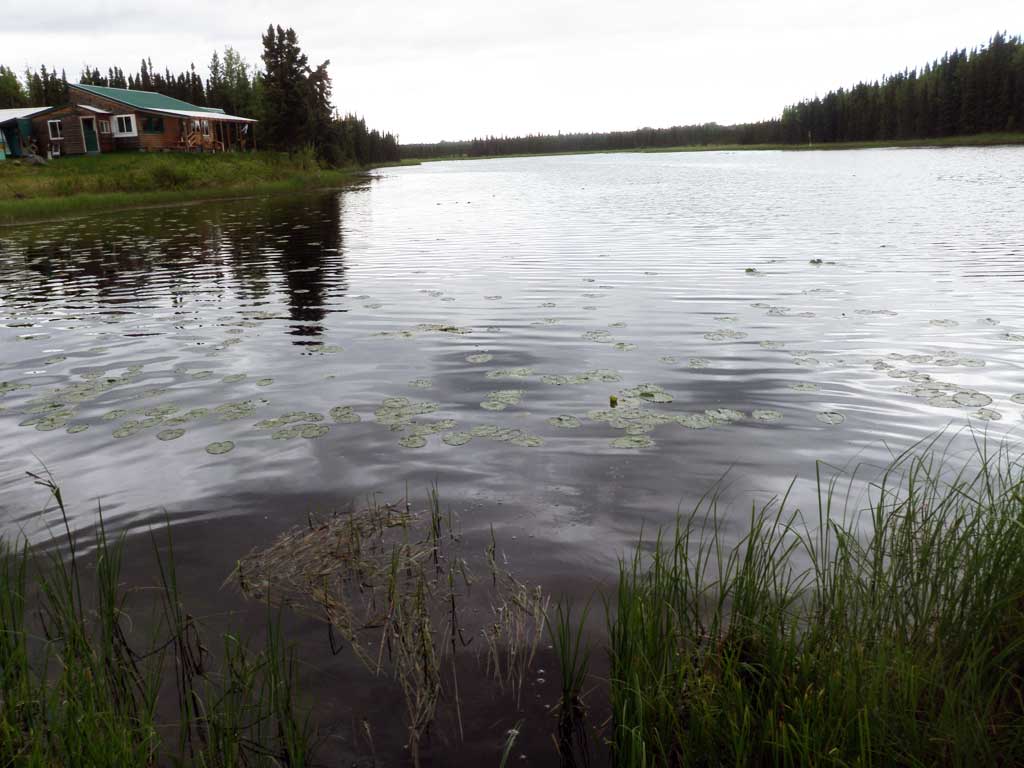

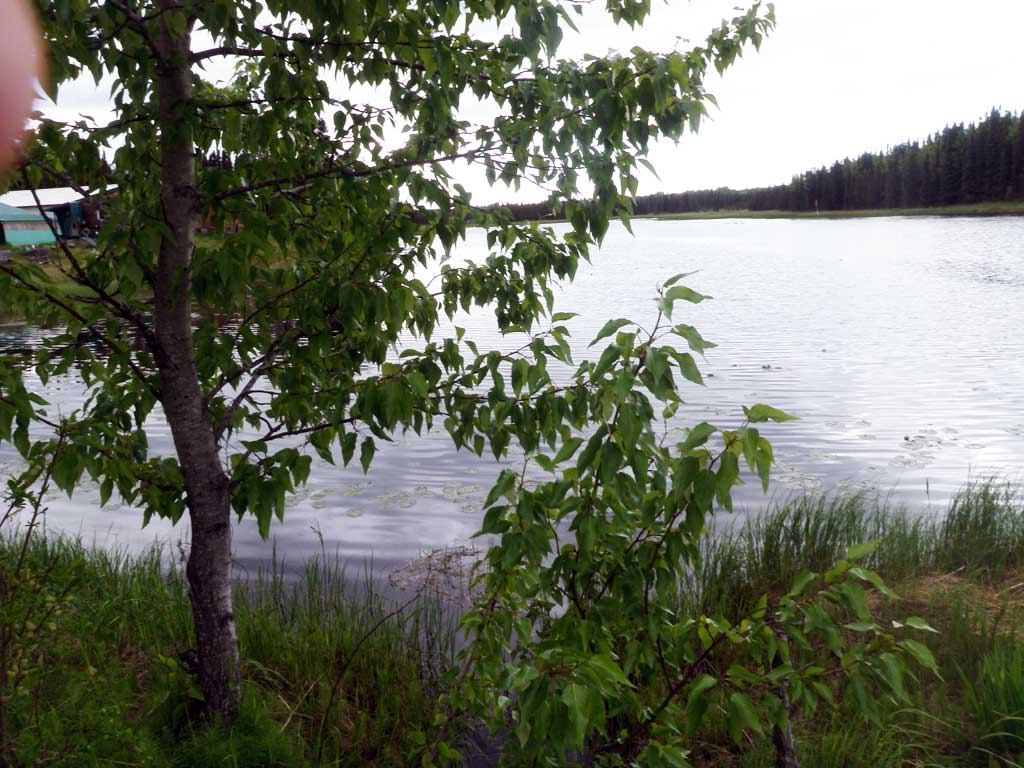

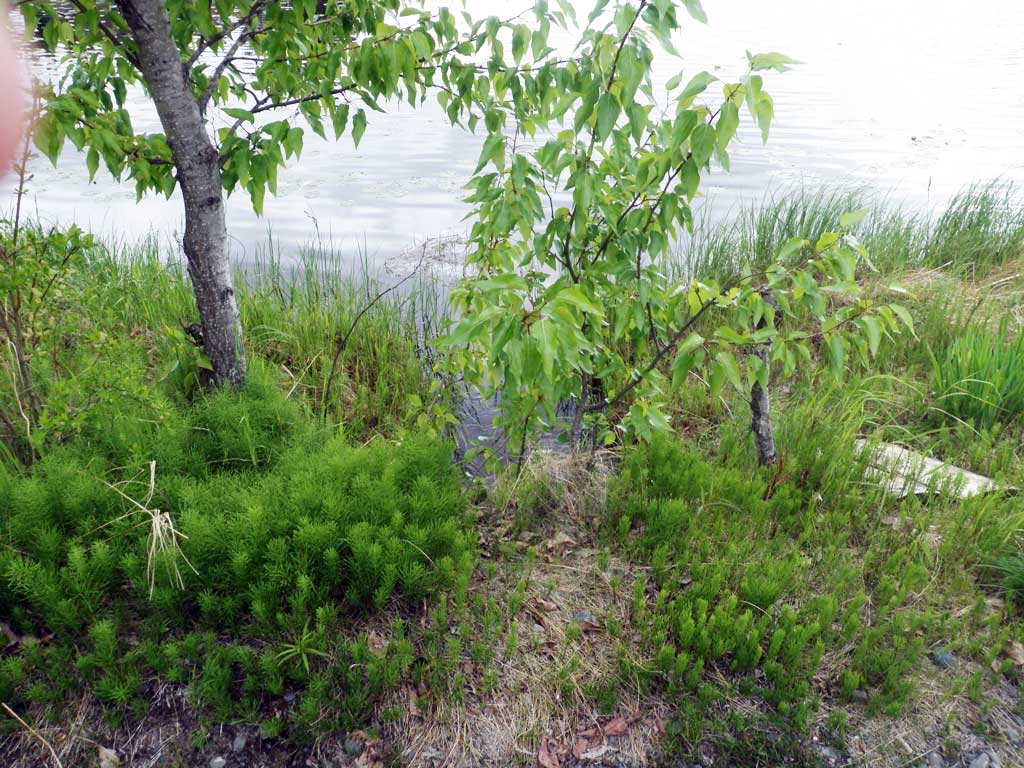

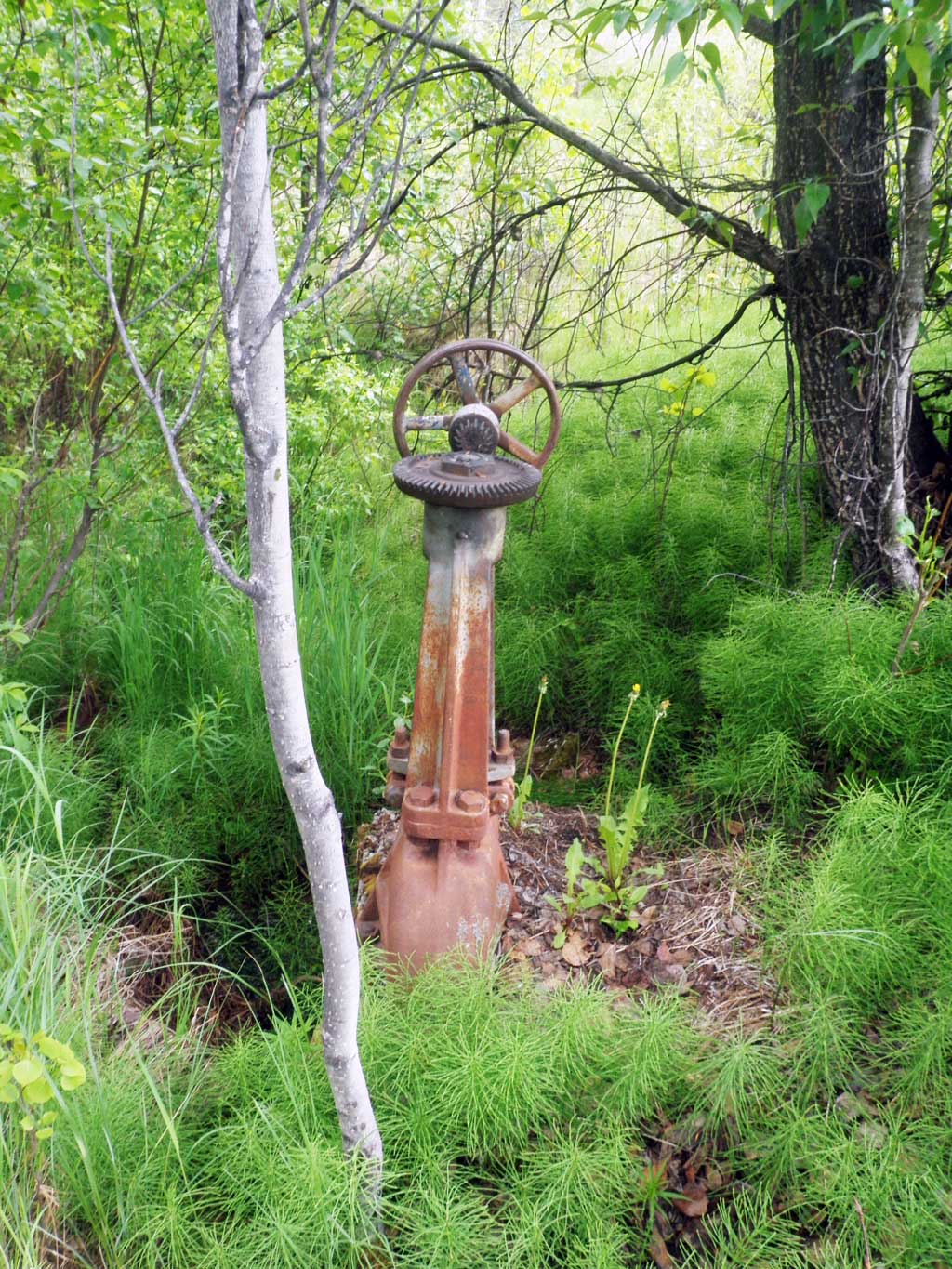

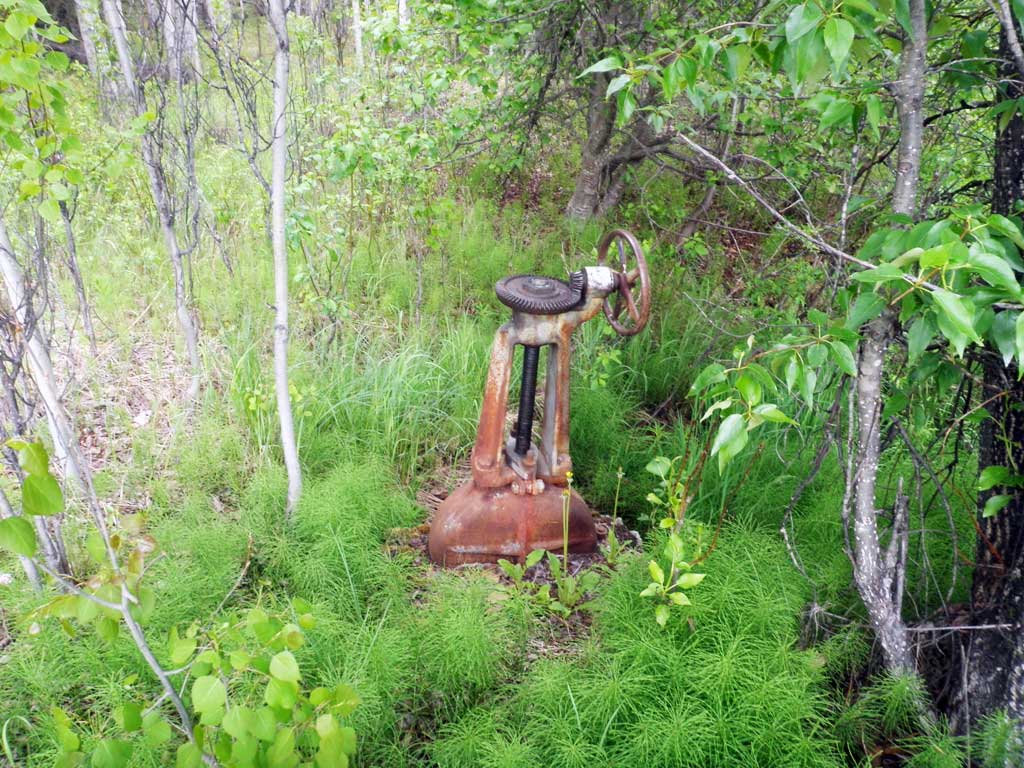

Comments: Culvert information and assessment data collected and submitted by USFWS. Photos site only. Outlet for upstream pond. Downstream creek is cataloged for rearing Coho.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Red

Length(ft):

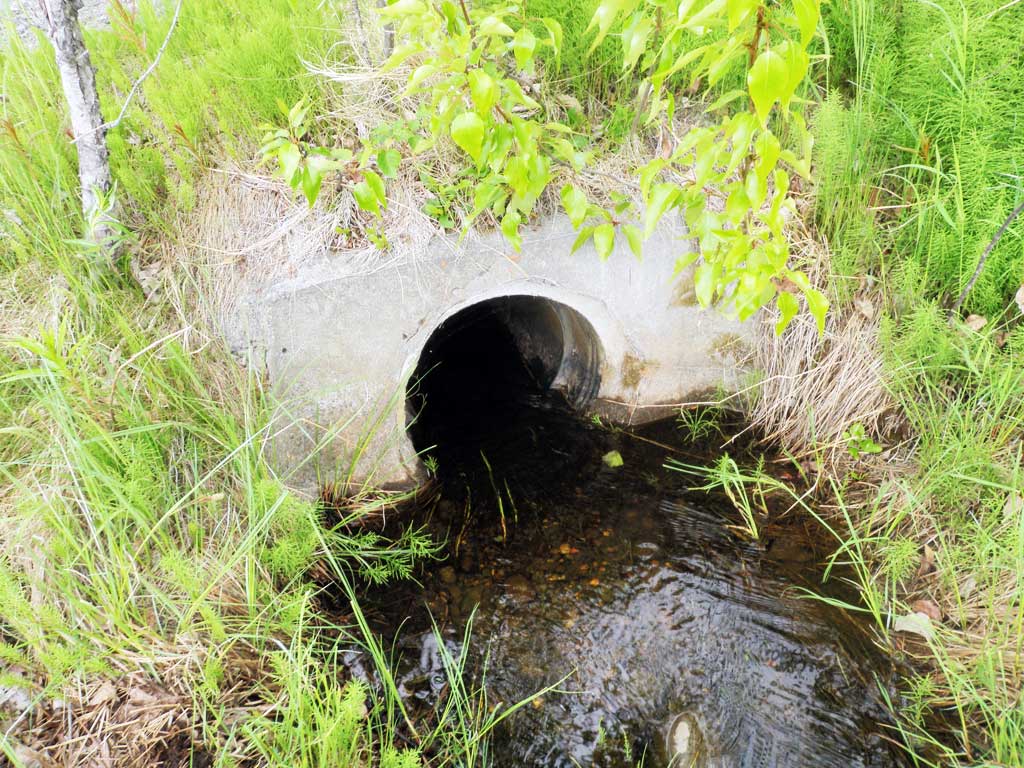

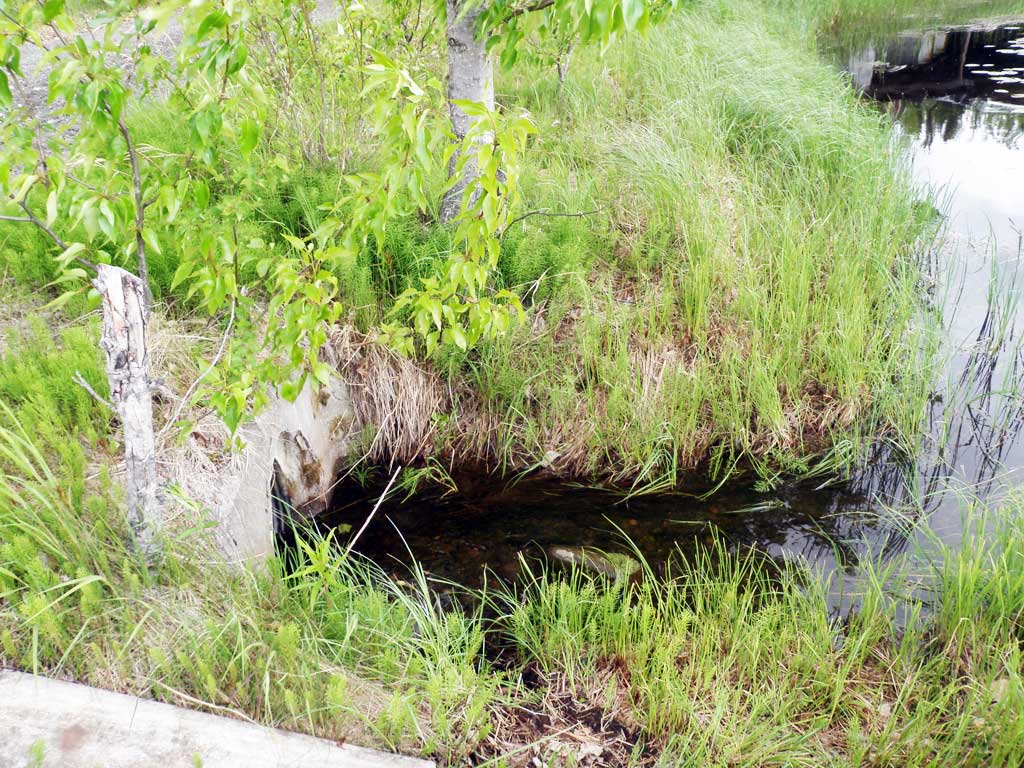

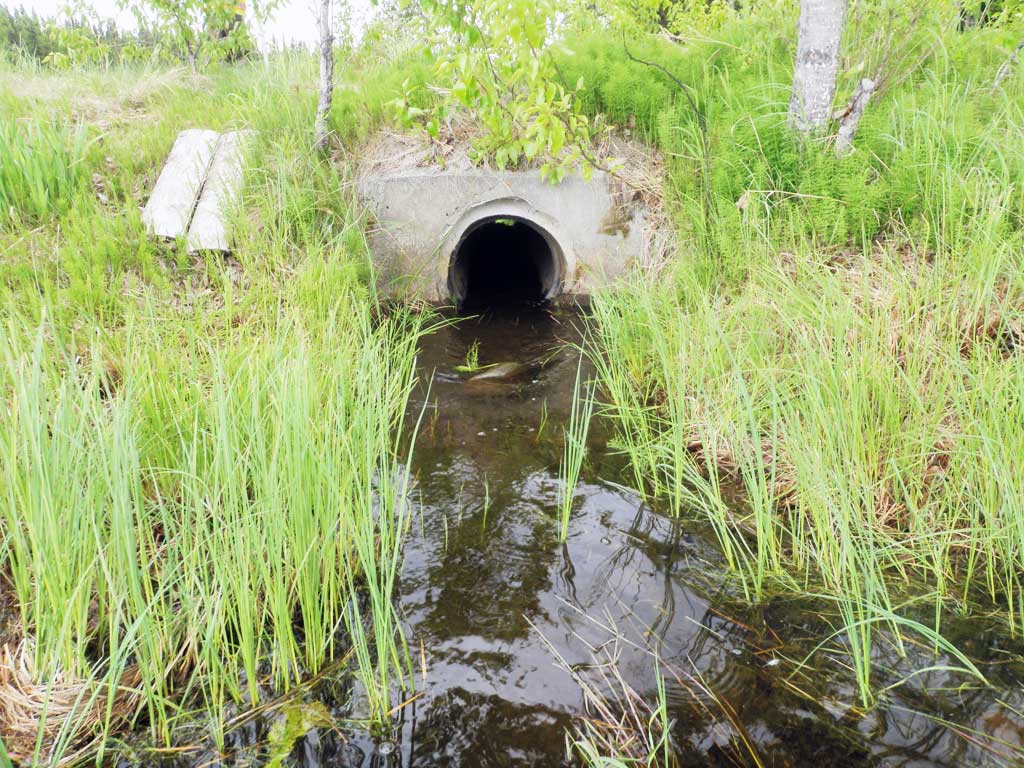

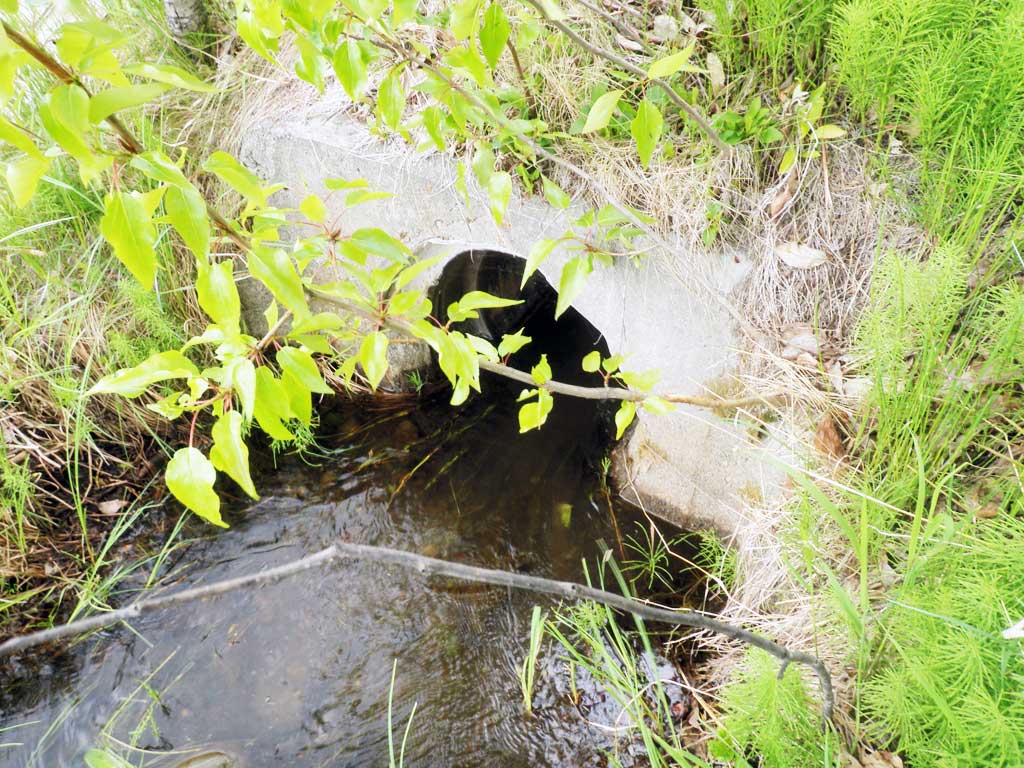

Inlet Type: Headwall

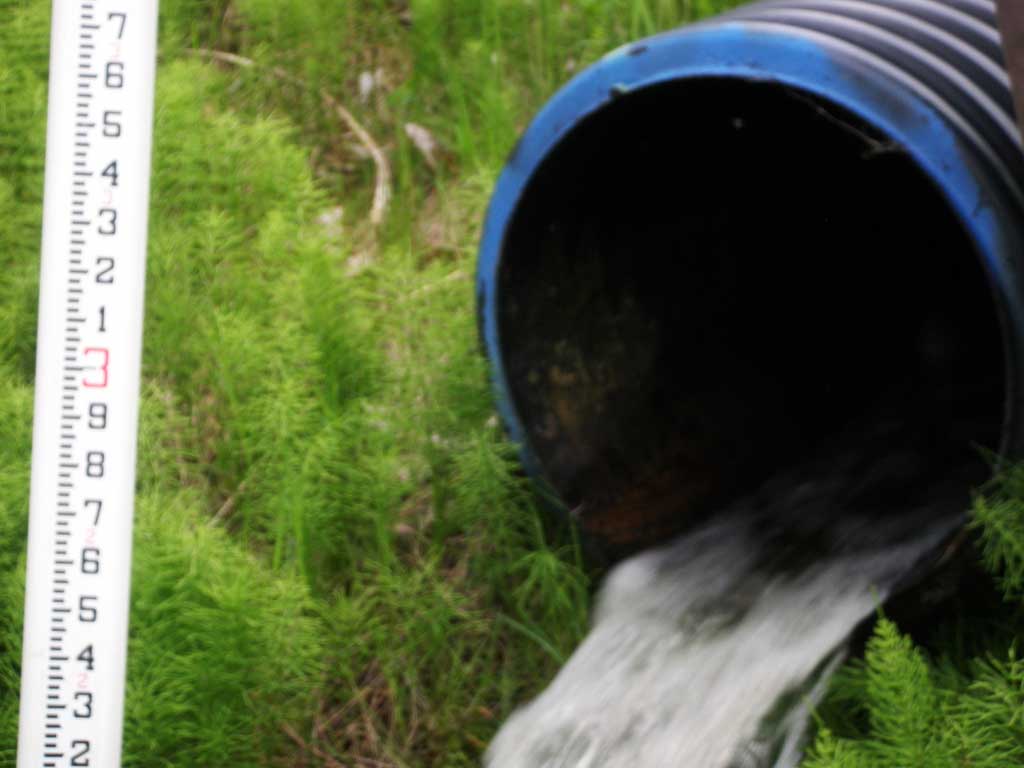

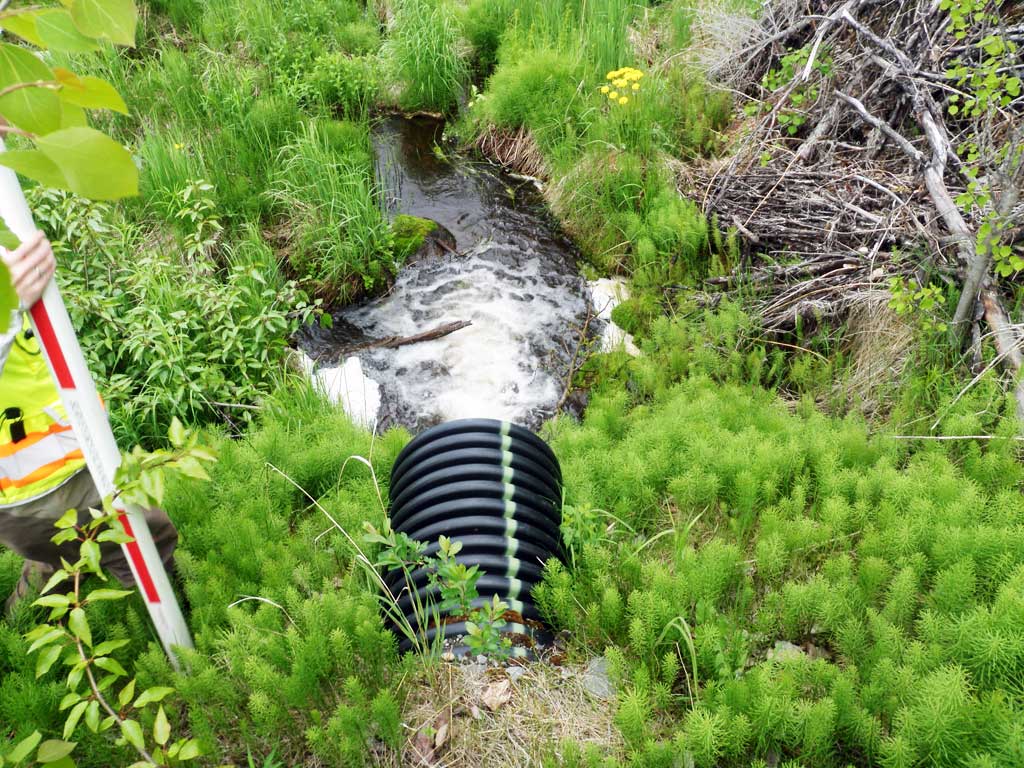

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:

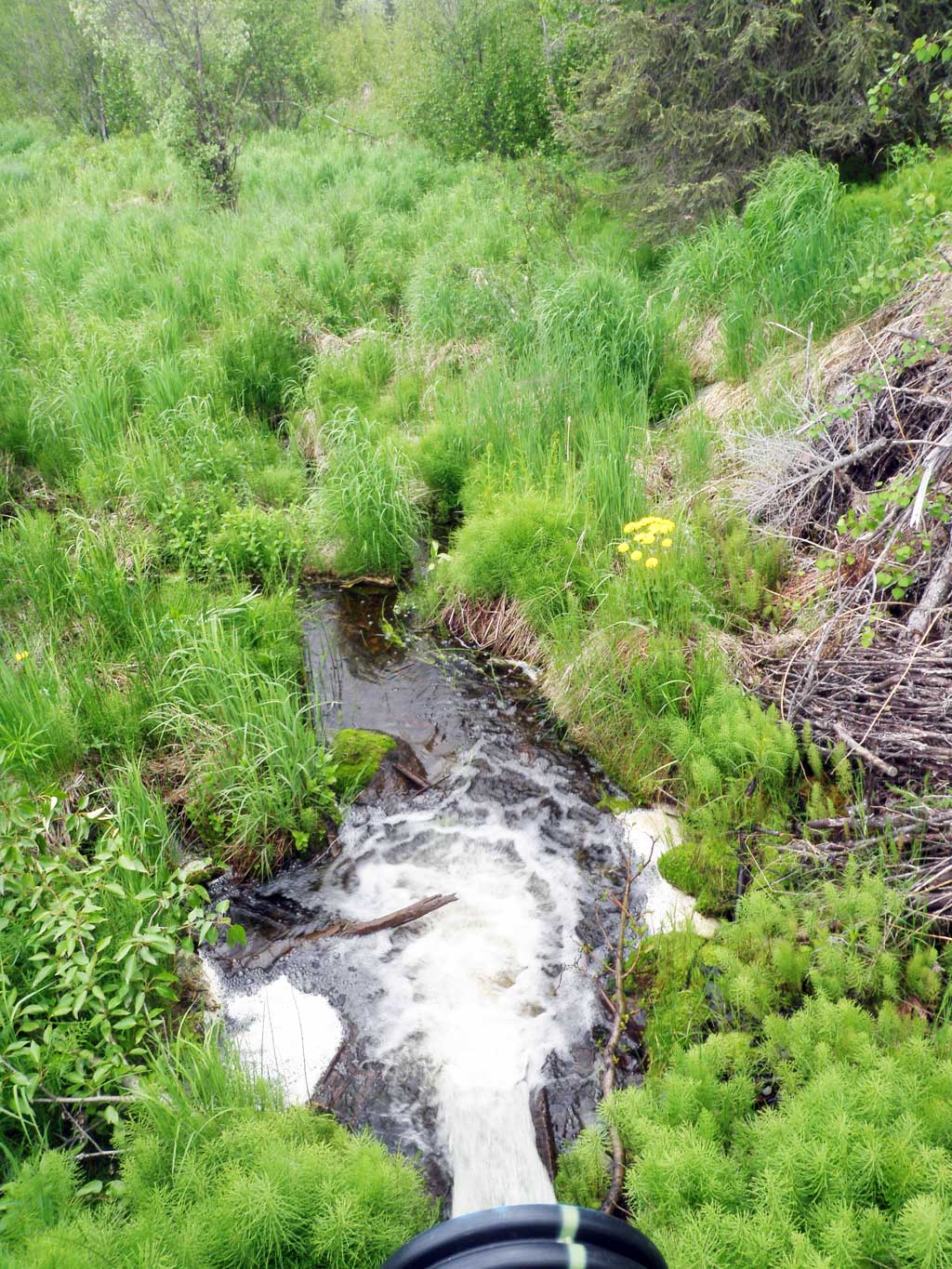

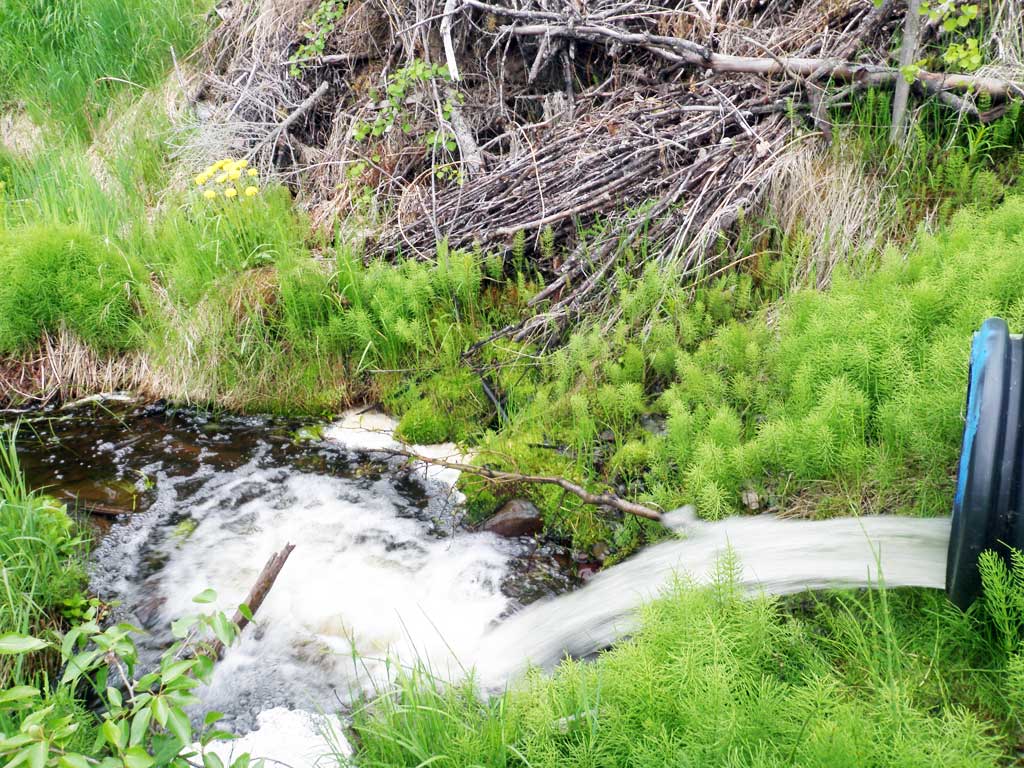

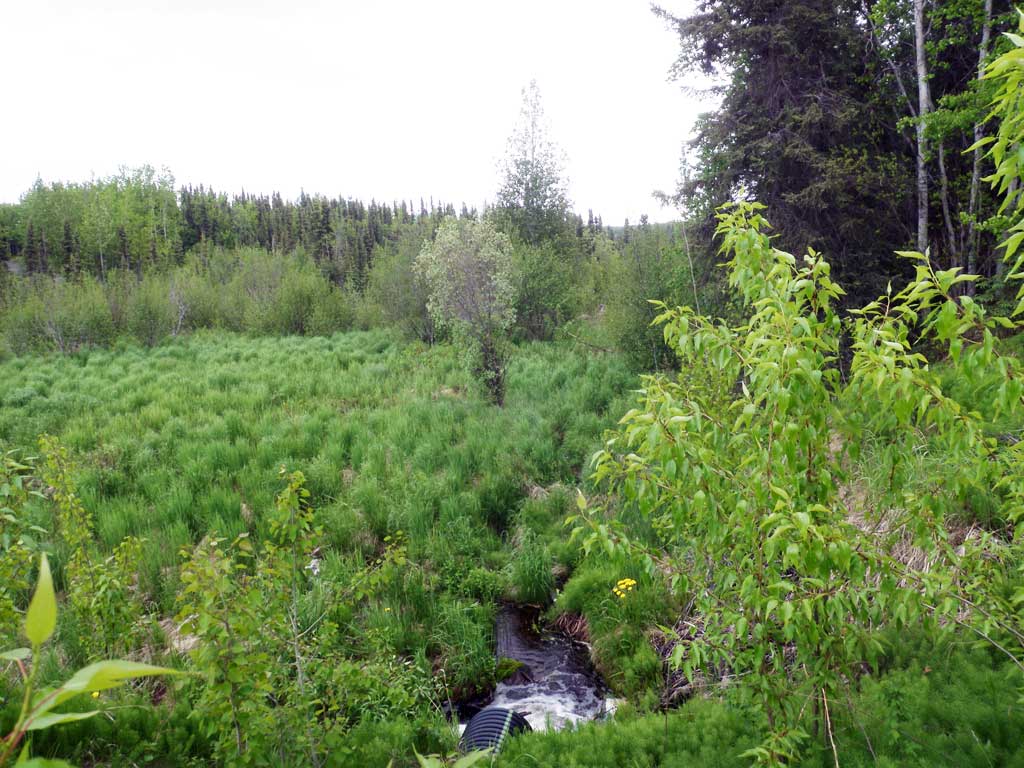

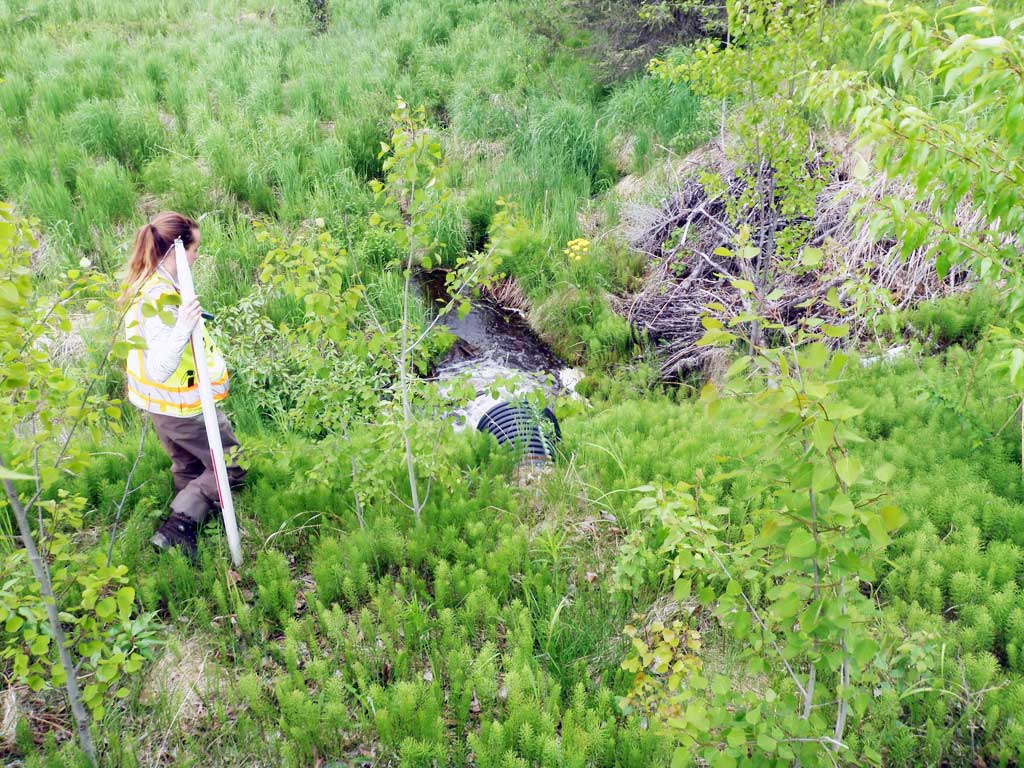

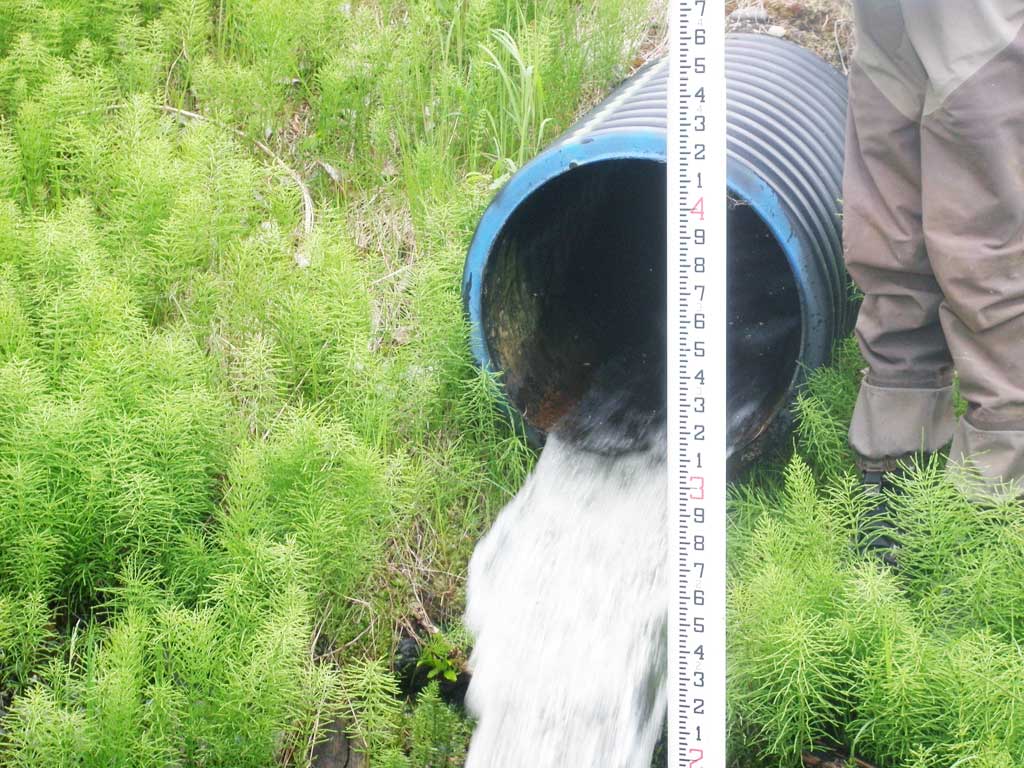

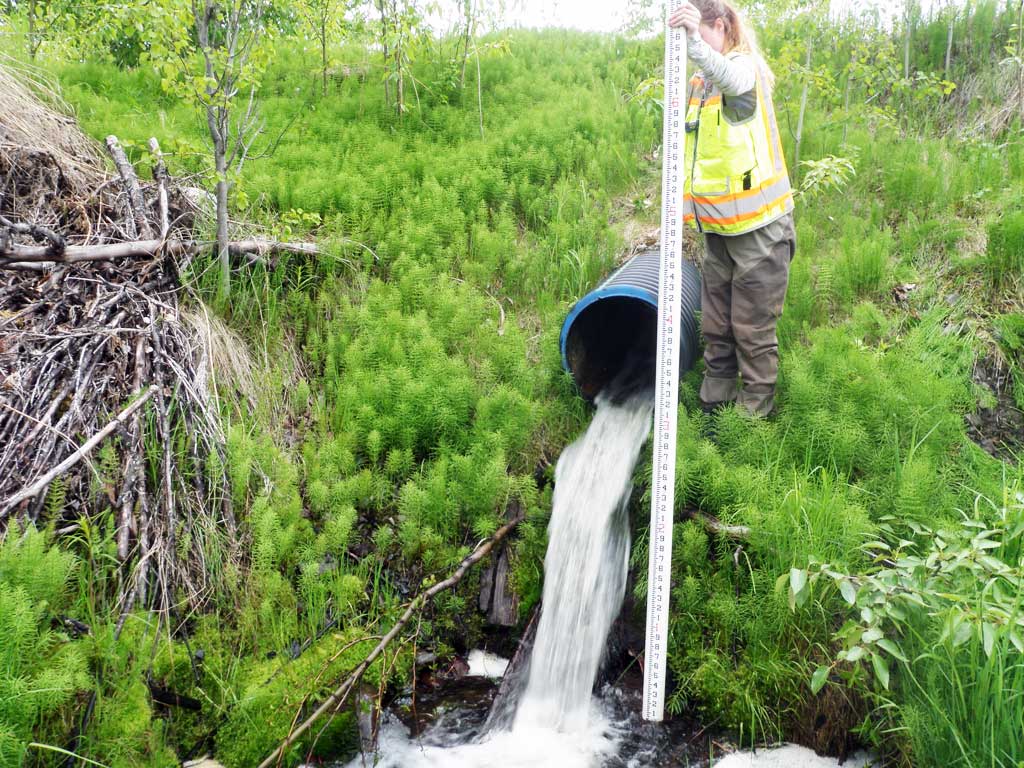

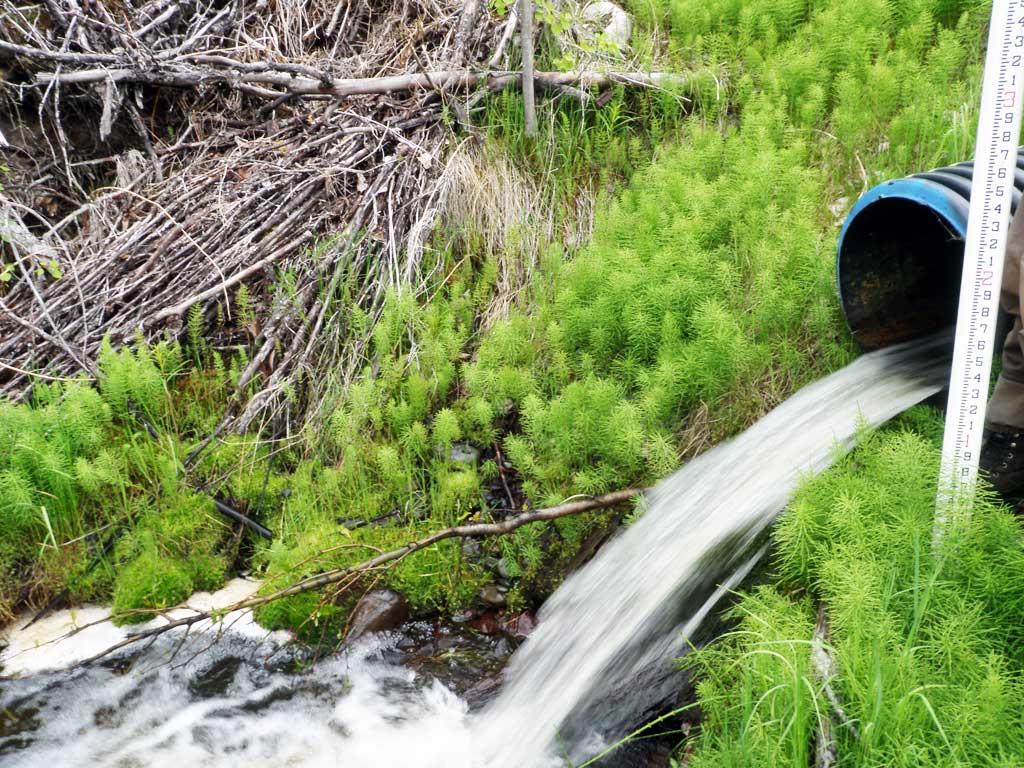

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red

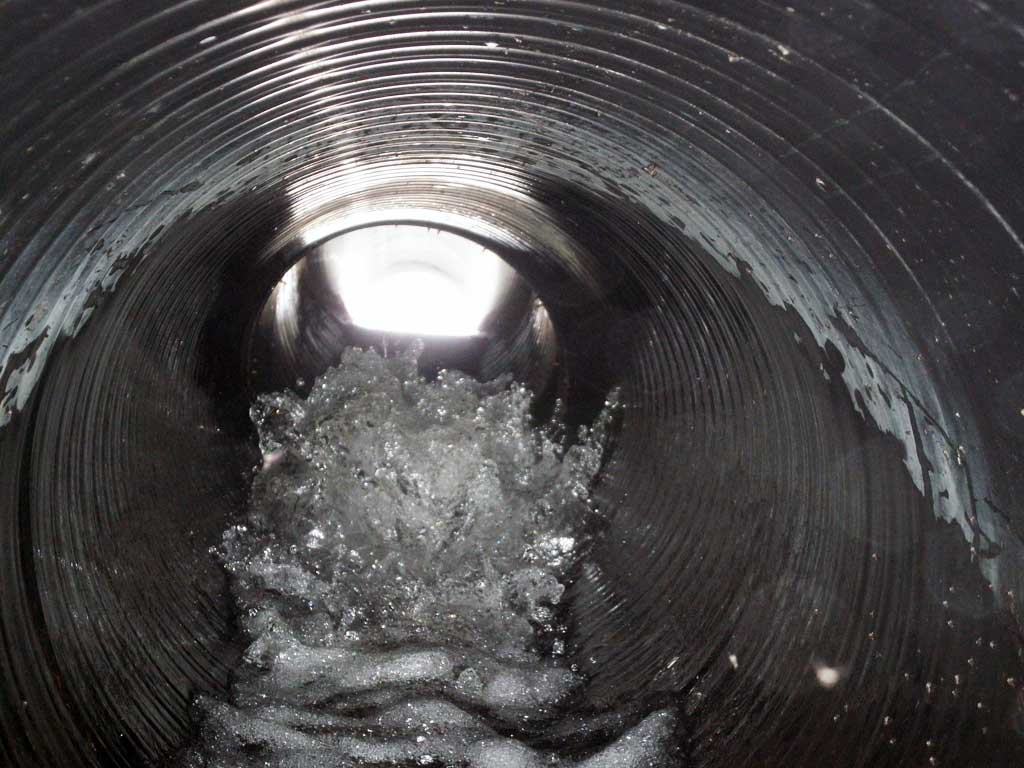

  2. Compound gradient in pipe

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
