Fish Passage Site 20303747

Coordinates (dec. deg.): 60.50280°, -151.11831°
Legal Description: S005N011W24
Region: South Central

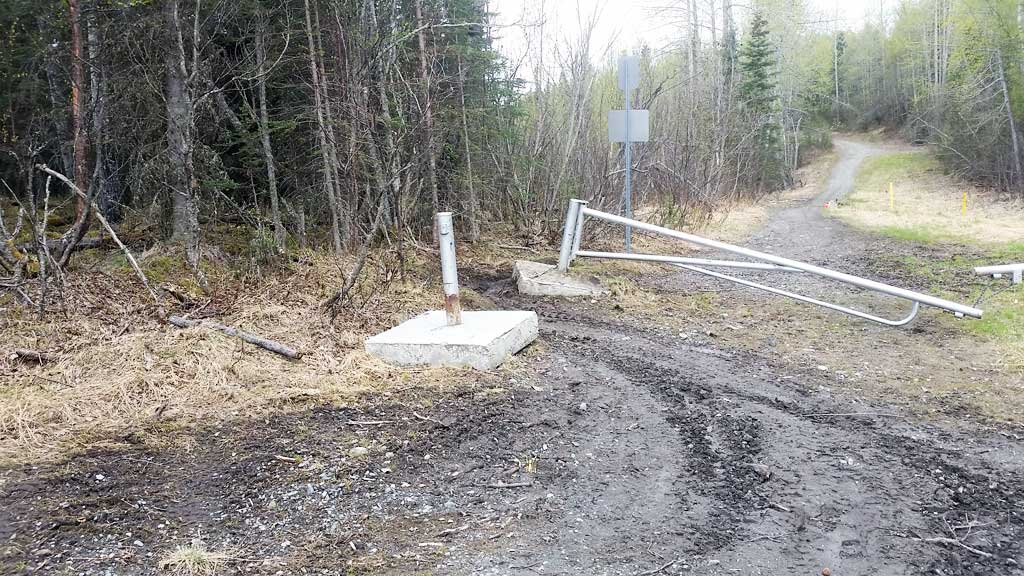

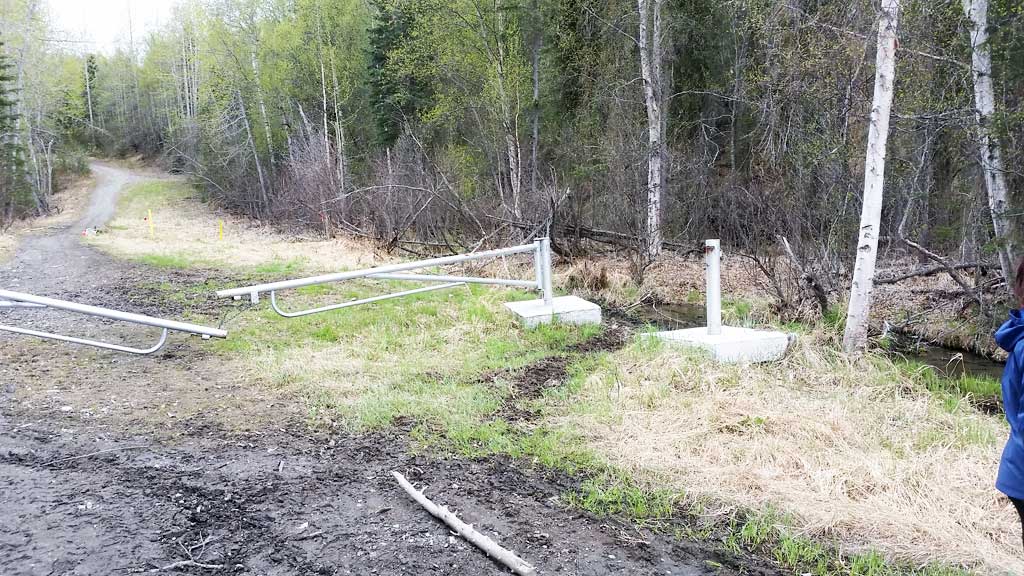

Road Name: Enstar Pipeline Access Rd

Datum: NAD83
Quad Name / ITM: Kenai C-3
AWC Stream #: 244-30-10010-2036
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey KEN17-EPC

Observers: Elise Idle, Maggie Schaffer, Jeff Sires

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio red
  2. Outfall height gray

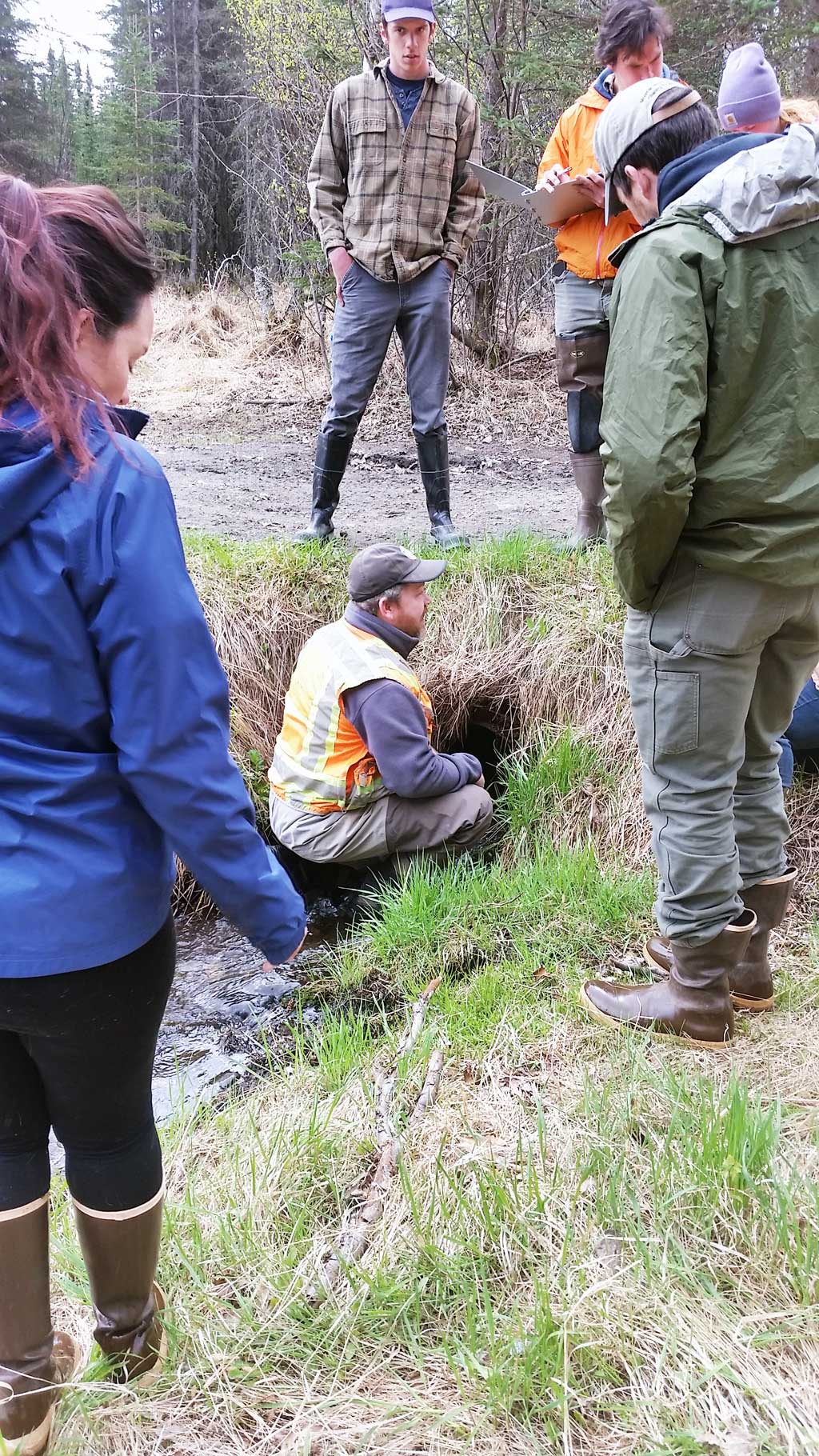

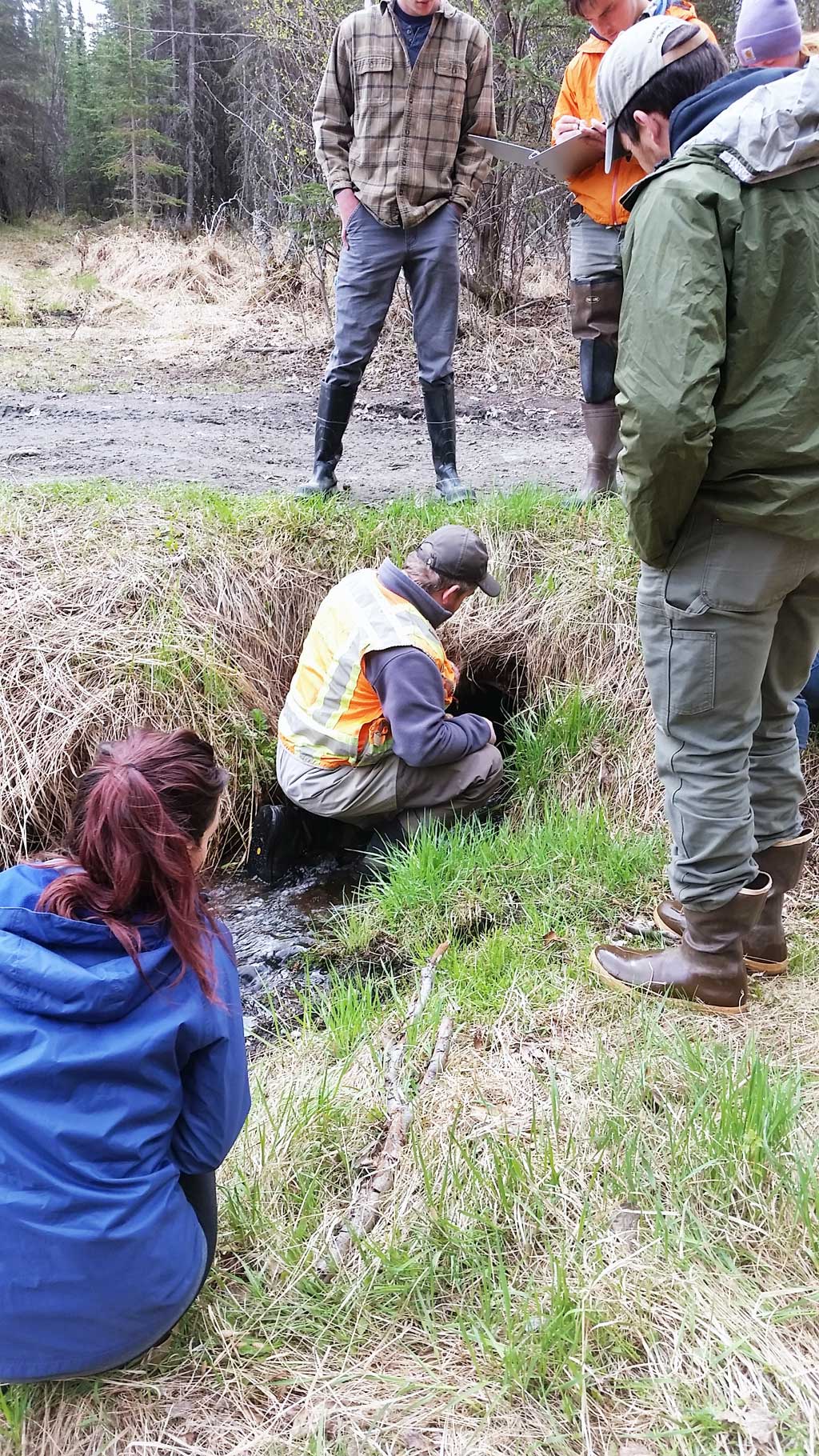

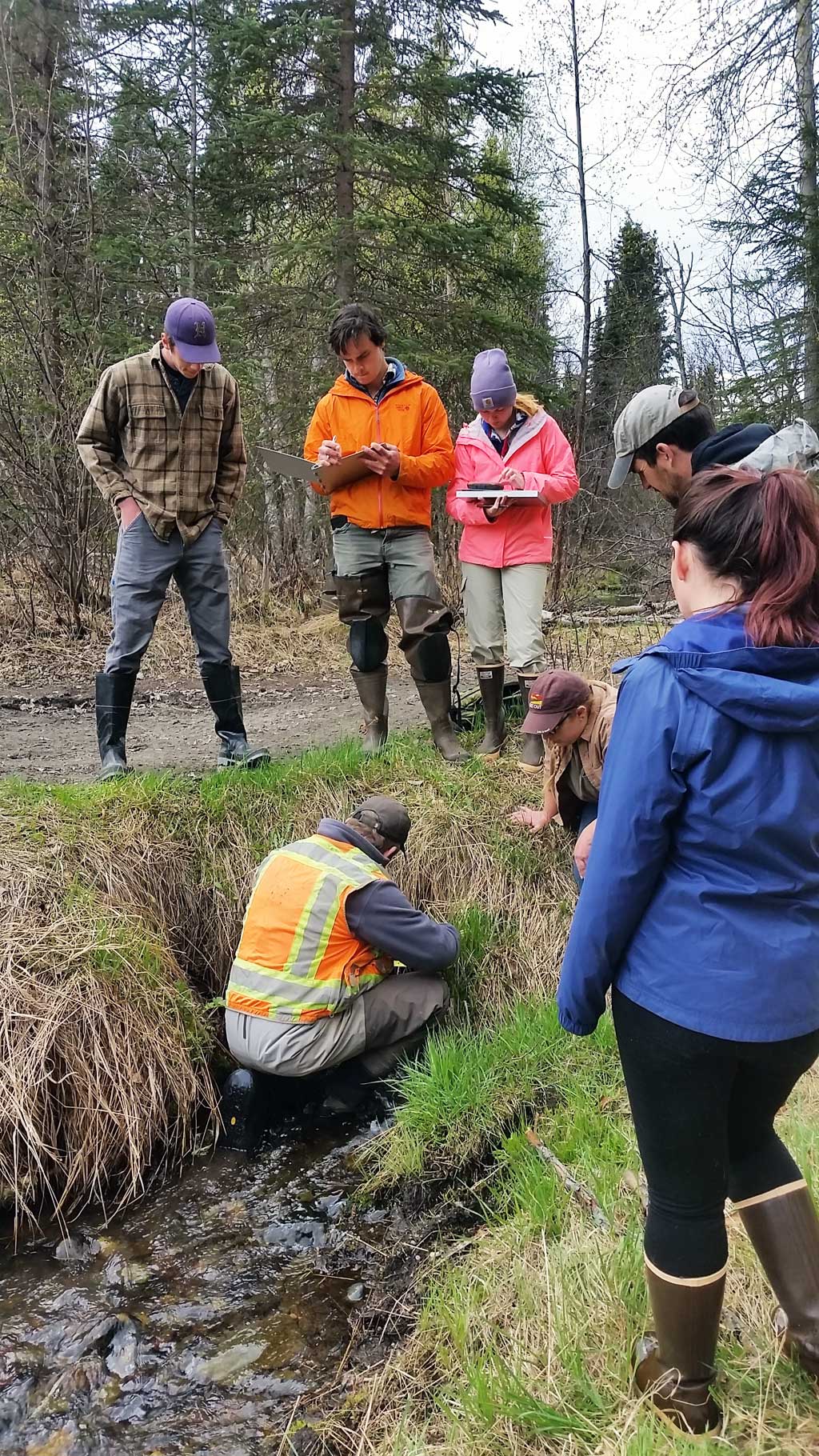

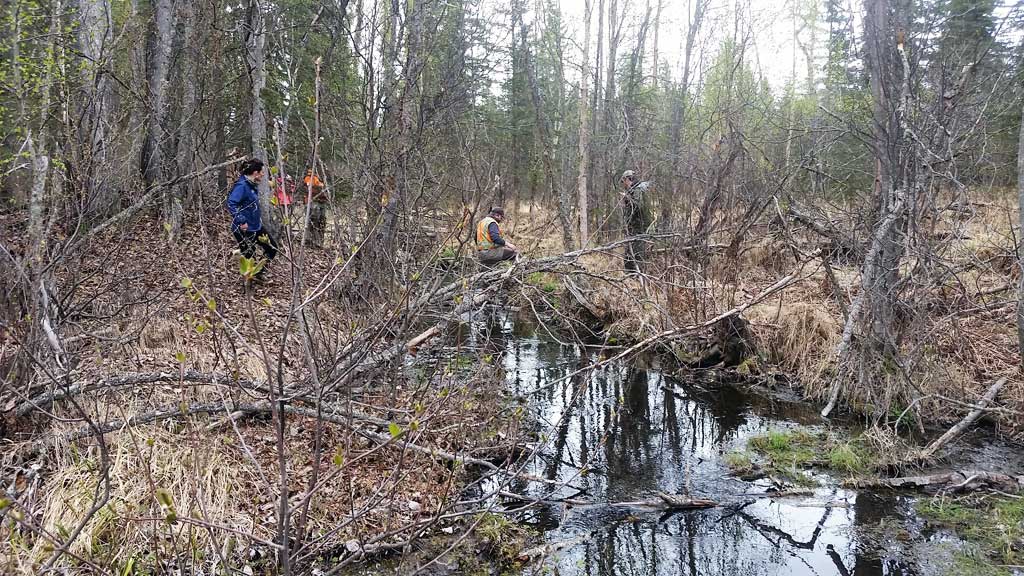

Comments: Site was a training site for USFWS and KWF on fish passage assessments. Site was surveyed.

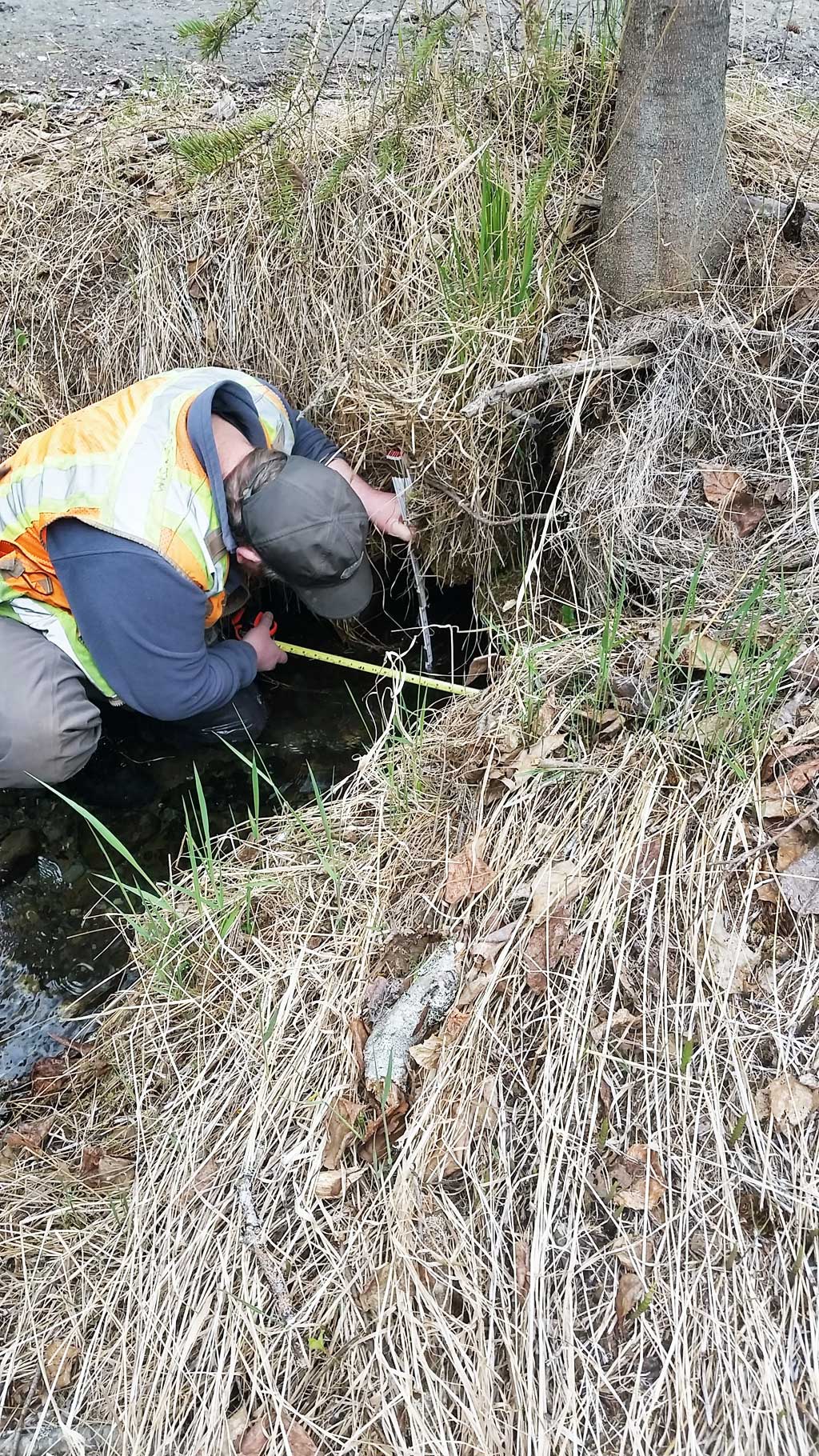

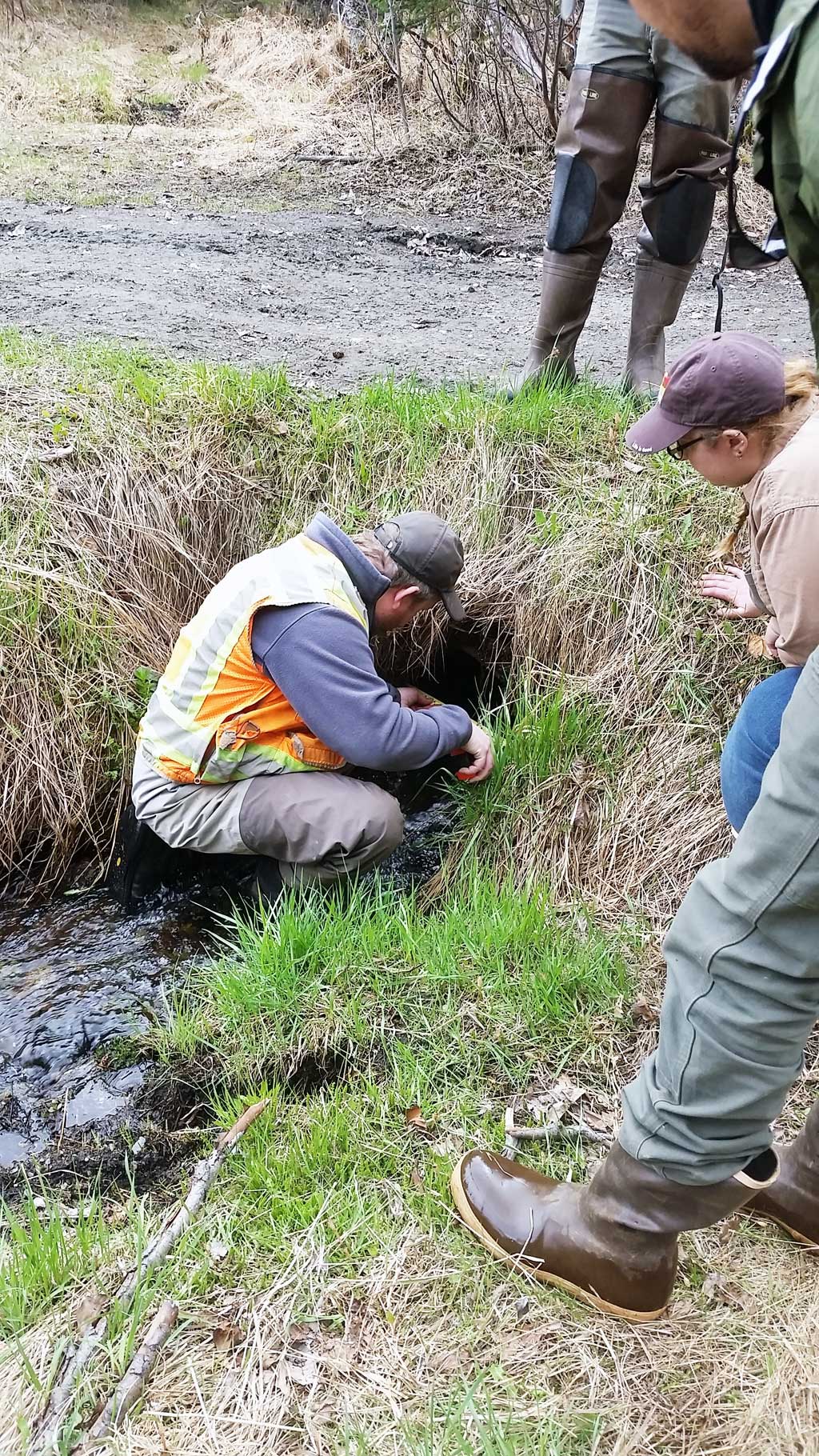

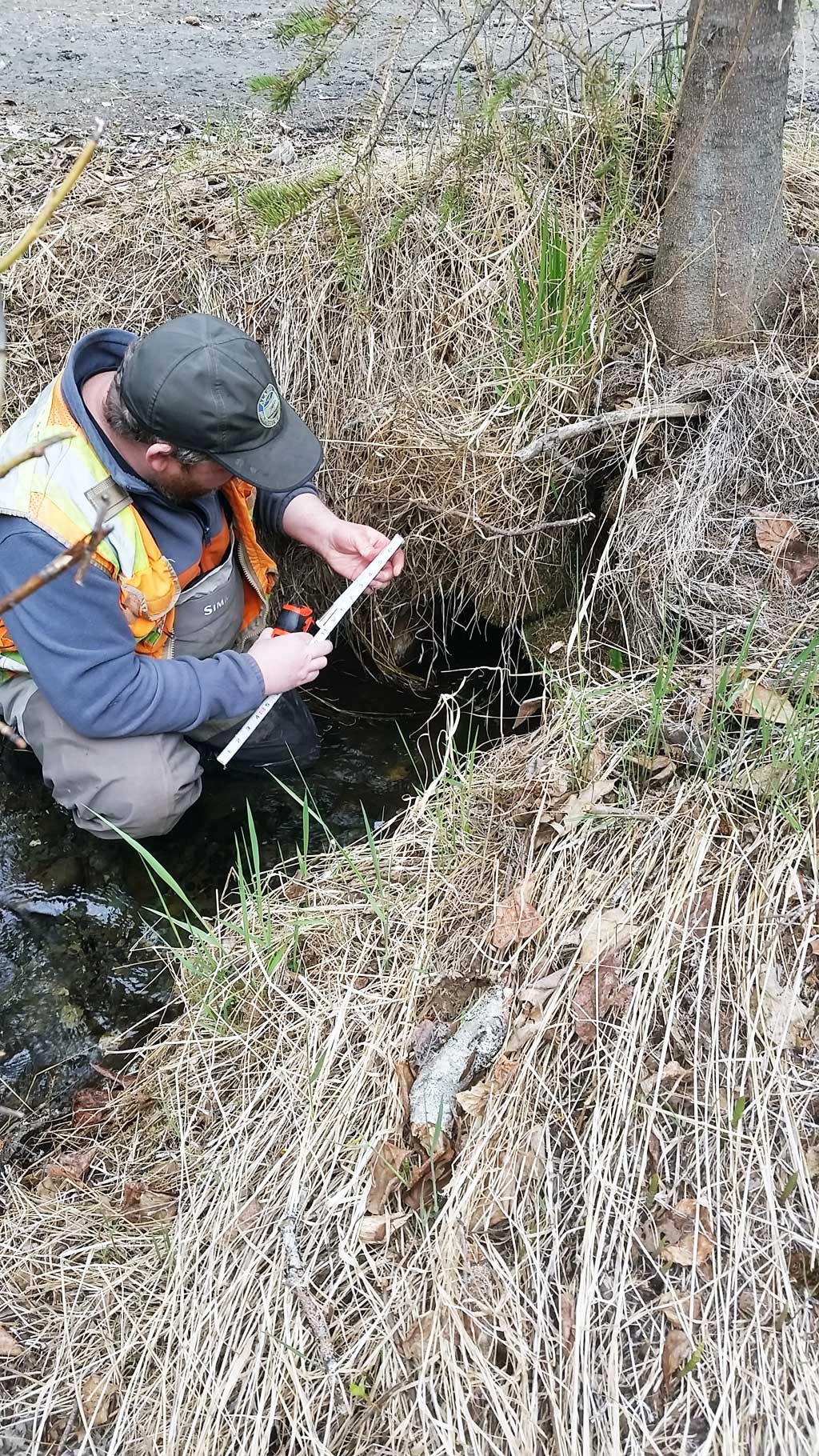

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Red

Length(ft): 18.1
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):1.35 1.3
Height(ft):1.3 1.25
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.27
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio red
  2. Outfall height gray

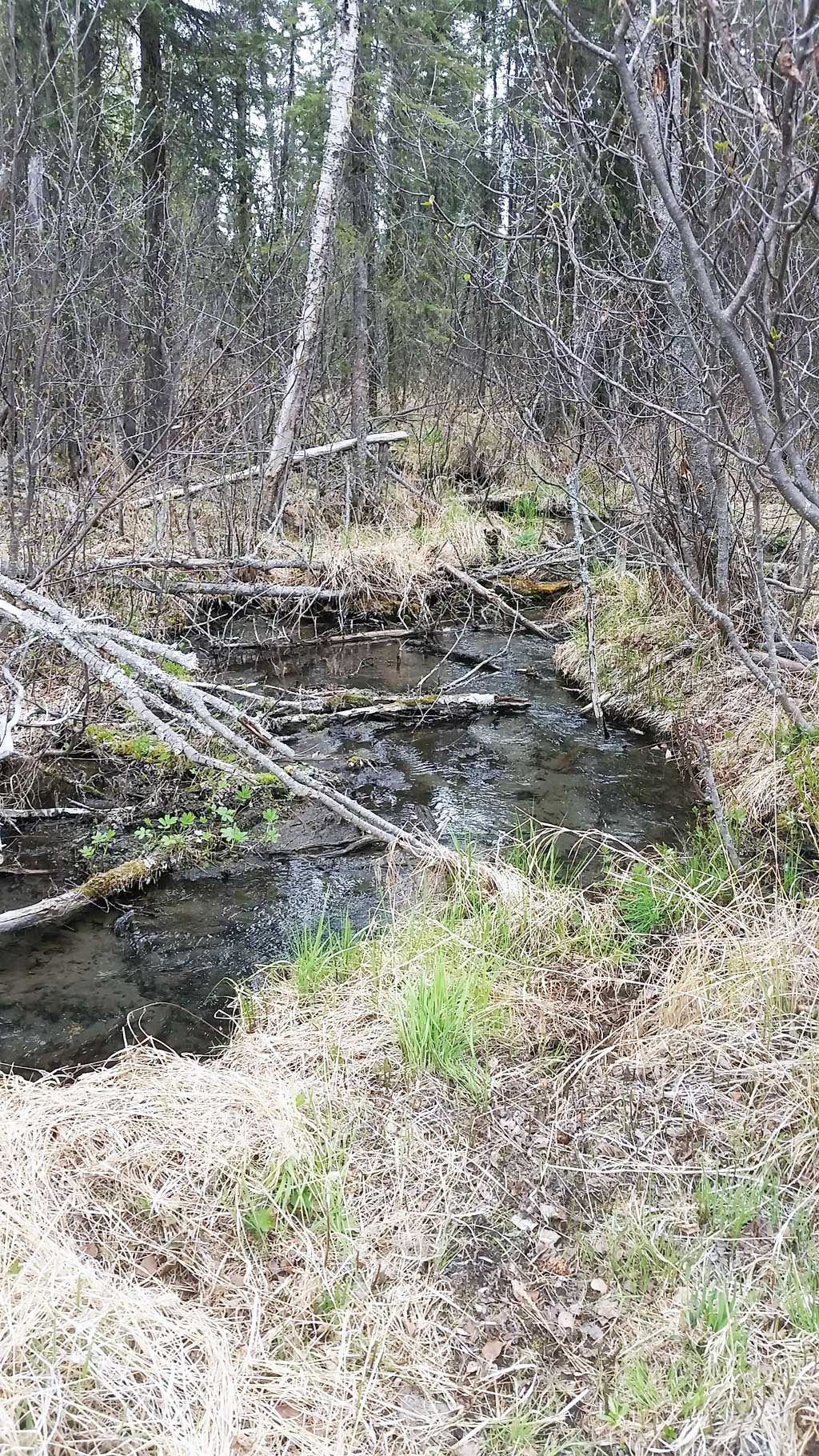

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:SandSand
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):2.8
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 150.0 7.20
Upstream ordinary high water 250.0 4.30
Upstream ordinary high water 350.0 3.10

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
