Fish Passage Site 20303701
Coordinates (dec. deg.): 60.96150°, -149.14490°
Legal Description: S010N002E17
Region: South Central
Road Name: Alyeska Highway
Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #:
Stream Name: Unnamed
Elevation:
Site Comments: None
Survey UPDATE-GIRD4
Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost
Overall Fish Passage Rating:
Tidal:
Backwatered:
Step Pools:
Construction Year: 2016
Comments: Site submitted by Will Frost has not been assessed.
Culvert Measurements

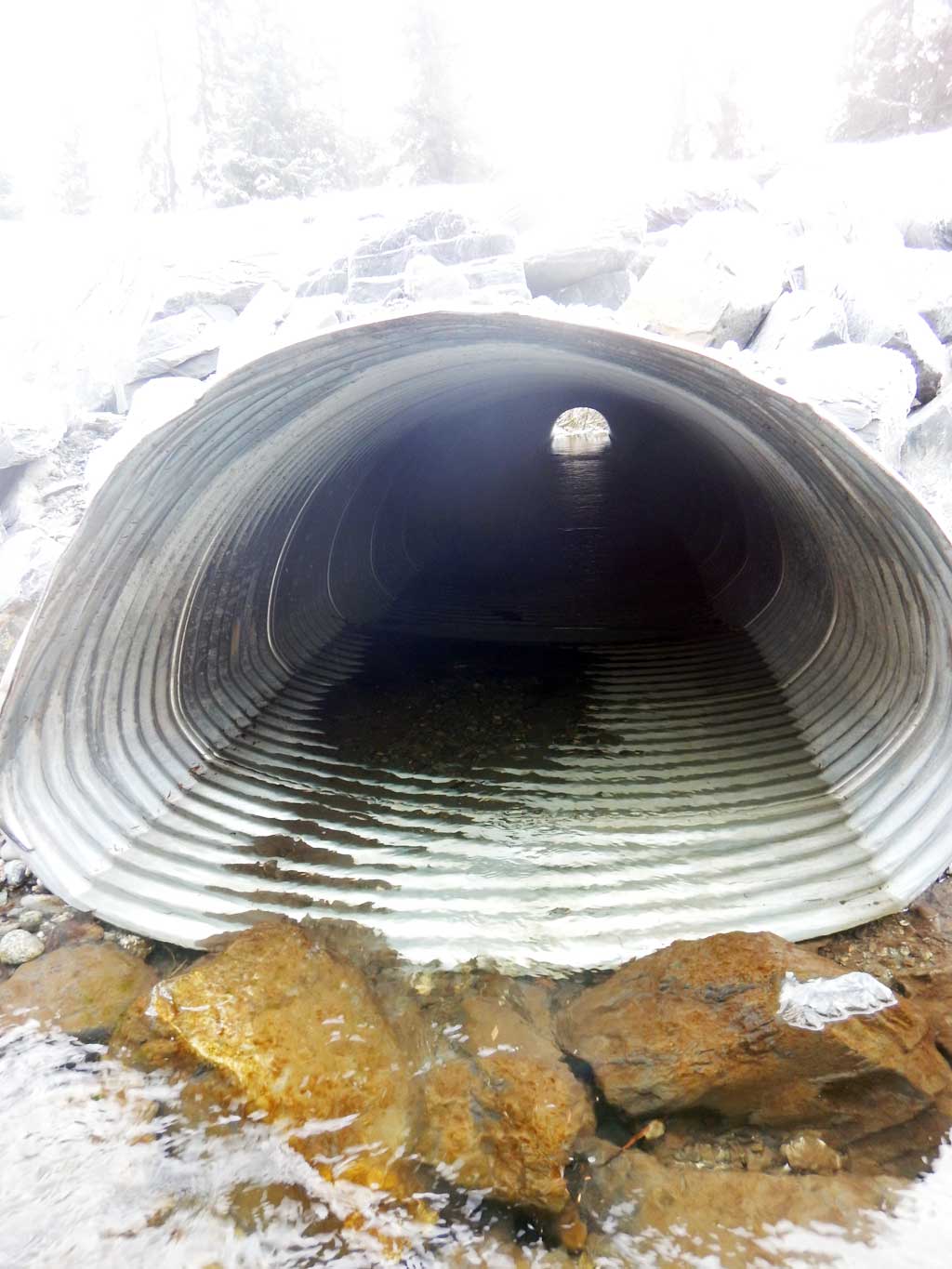

ID: 1 | Structure Type: Pipe-arch (Corrugated aluminum) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||
Comments: All culvert measurements taken from habitat permit and have not been verified. Permit calls for 6 inch baffles be placed every 8.5 within culvert. Culvert width 4.75 ft. Culvert height 3.16 ft. Culvert length 76 ft. Culvert gradient 1.8%. |
Stream Measurements
|
|
No stream width data available.
Elevations
No elevation data available.
Fish Sampling Efforts
No fish sampling occurred during this survey.
Fish Observations
No fish observations occurred during this survey.
