Fish Passage Site 20303515

Coordinates (dec. deg.): 60.97443°, -149.09525°
Legal Description: S010N002E09
Region: South Central
Road Name: Arlberg Avenue

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #: 247-60-10250-2018-3132
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-ALB01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools:
Construction Year: 2016


Comments: None

Culvert Measurements

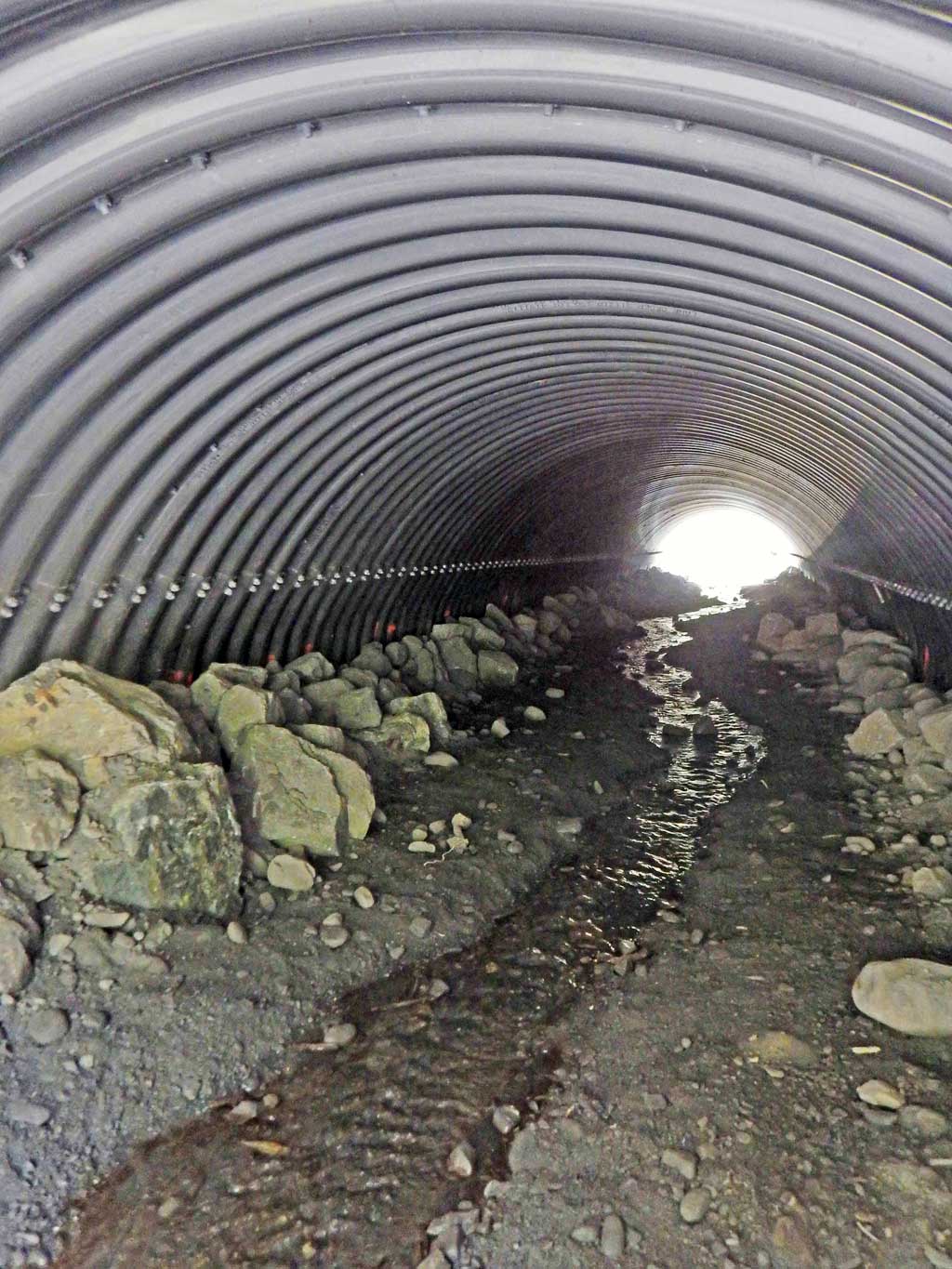

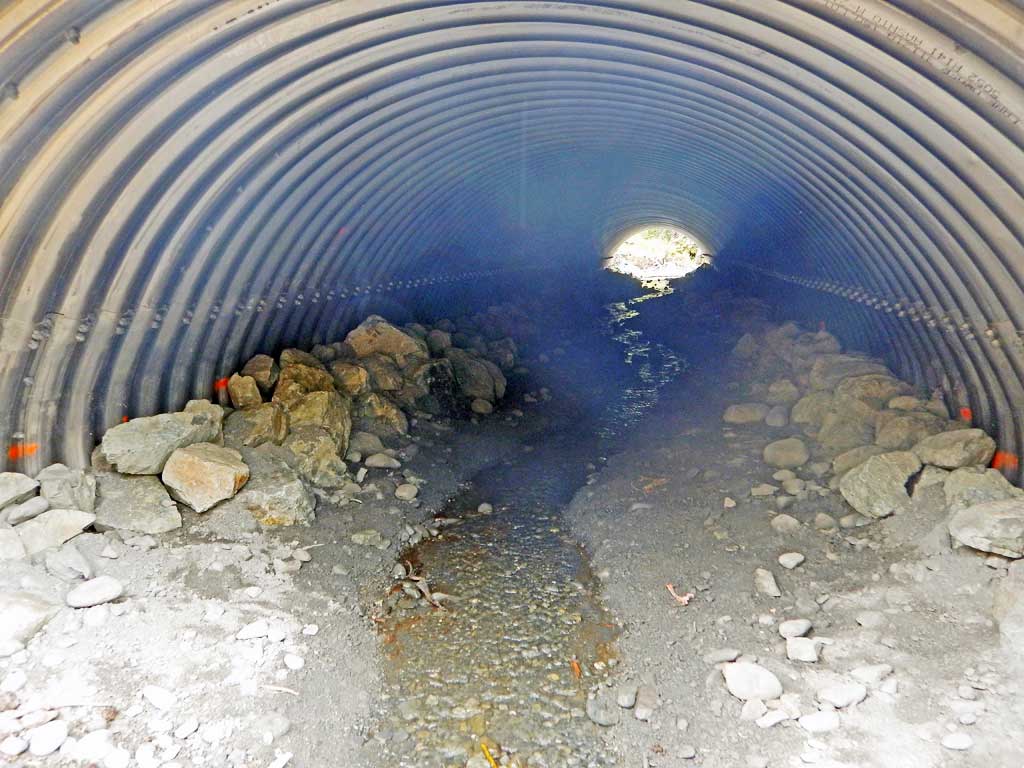

ID: 1 Structure Type: Pipe-arch (Structural aluminum plate) Fish Passage Rating: Black

Length(ft):

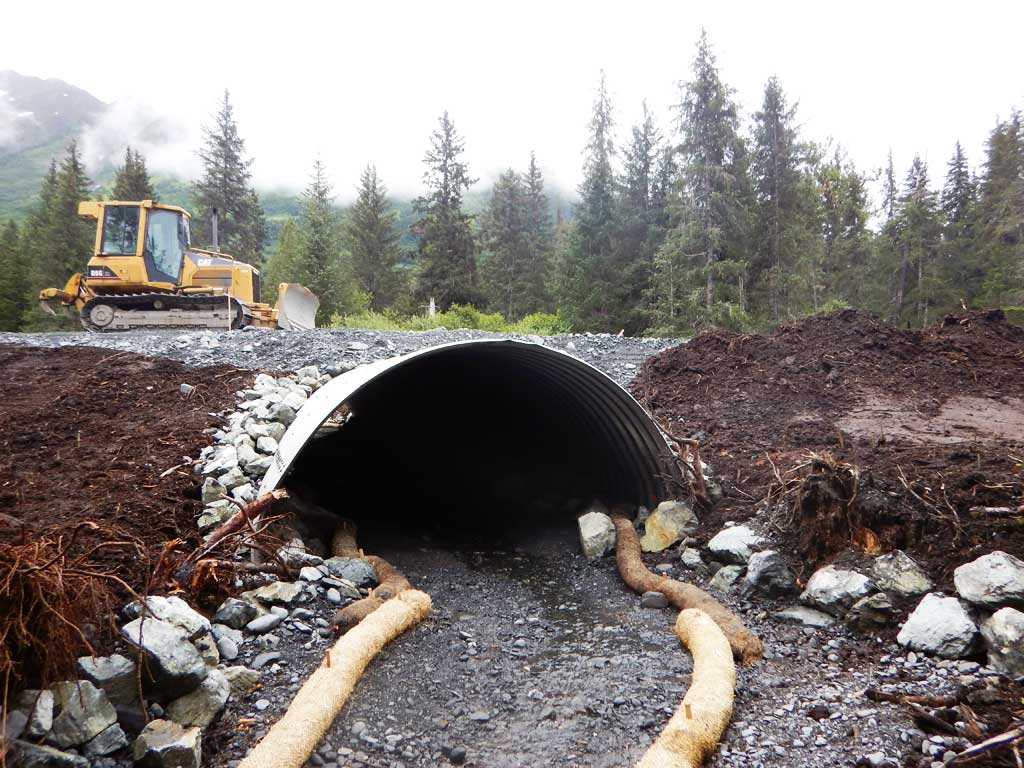

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: All measurements are taken from site plans and have not been verified. Cuvlert width 16.5 ft. Cuvlert height 6.66 ft to top of substate. Substrate depth 1.3 ft. Cuvlert length 85.5 ft. Cuvlert slope 3.7%.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):3.74
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
