Fish Passage Site 20300980

Coordinates (dec. deg.): 60.35517°, -151.26484°
Legal Description: S003N011W18
Region: South Central
Road Name: Kalifornsky Beach Road

Datum: NAD83
Quad Name / ITM: Kenai B-4
AWC Stream #: 244-30-10050-2015
Stream Name: Coal Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-1

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gillian O'Doherty

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2010

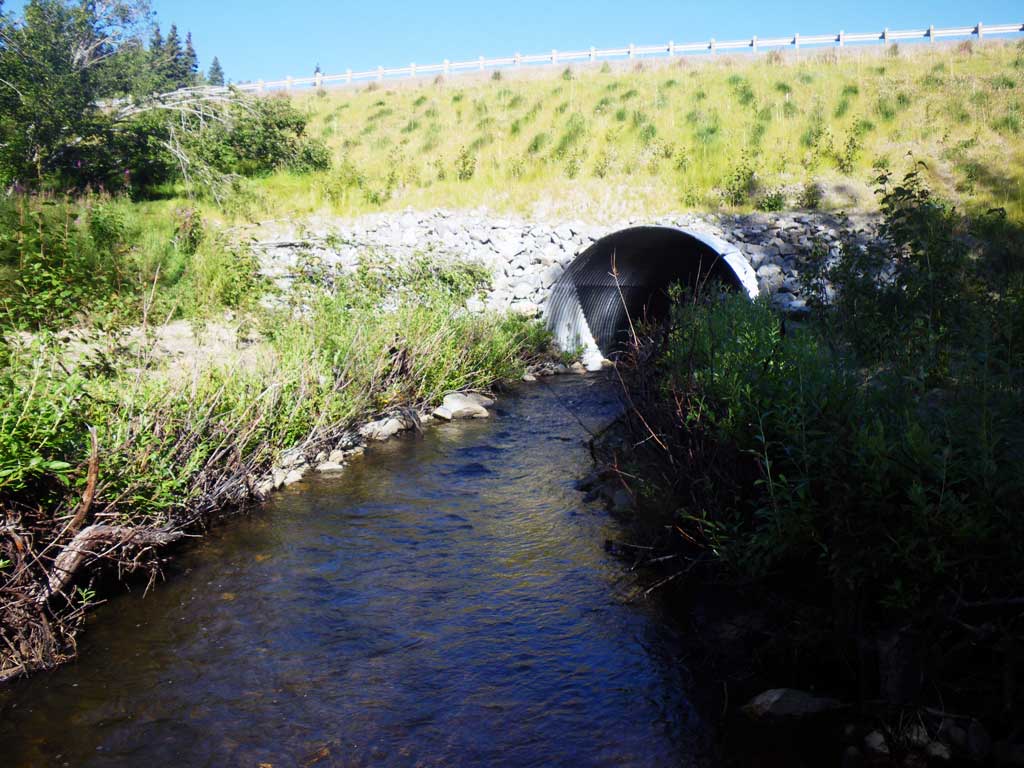

Comments: The original culvert was removed in July 2010 and replaced with a stream simulation design. The new structure is designed to pass all species and life stages of resident and anadromous fish as well as small and large mammals.

Culvert Measurements

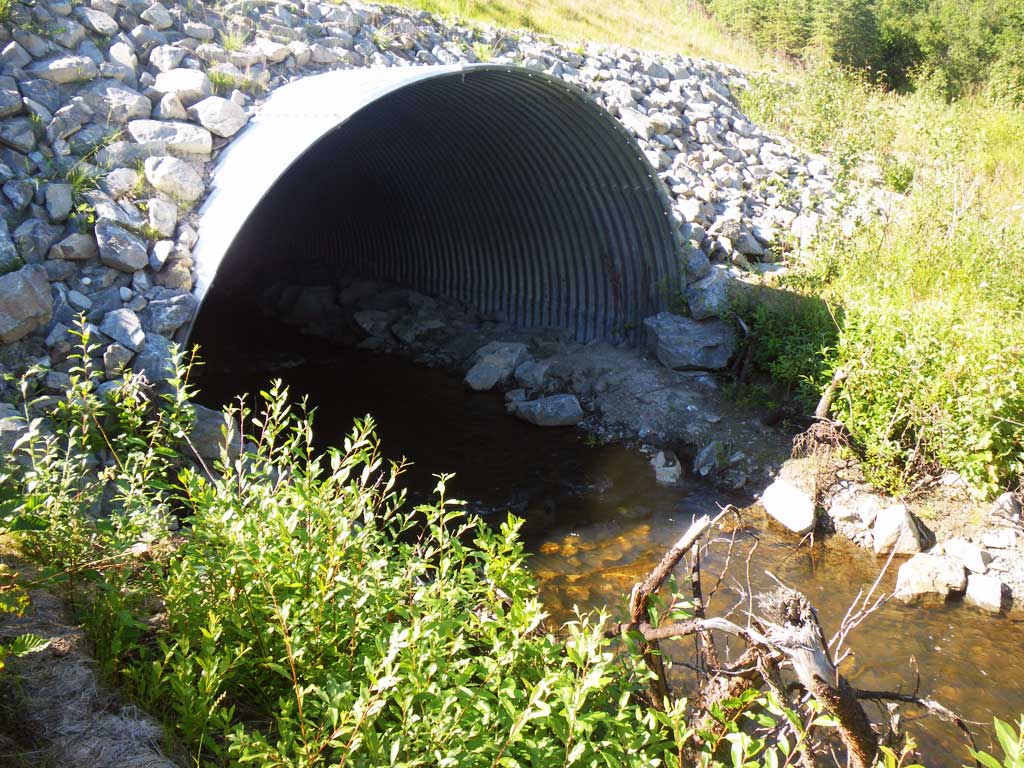

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Green

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present:

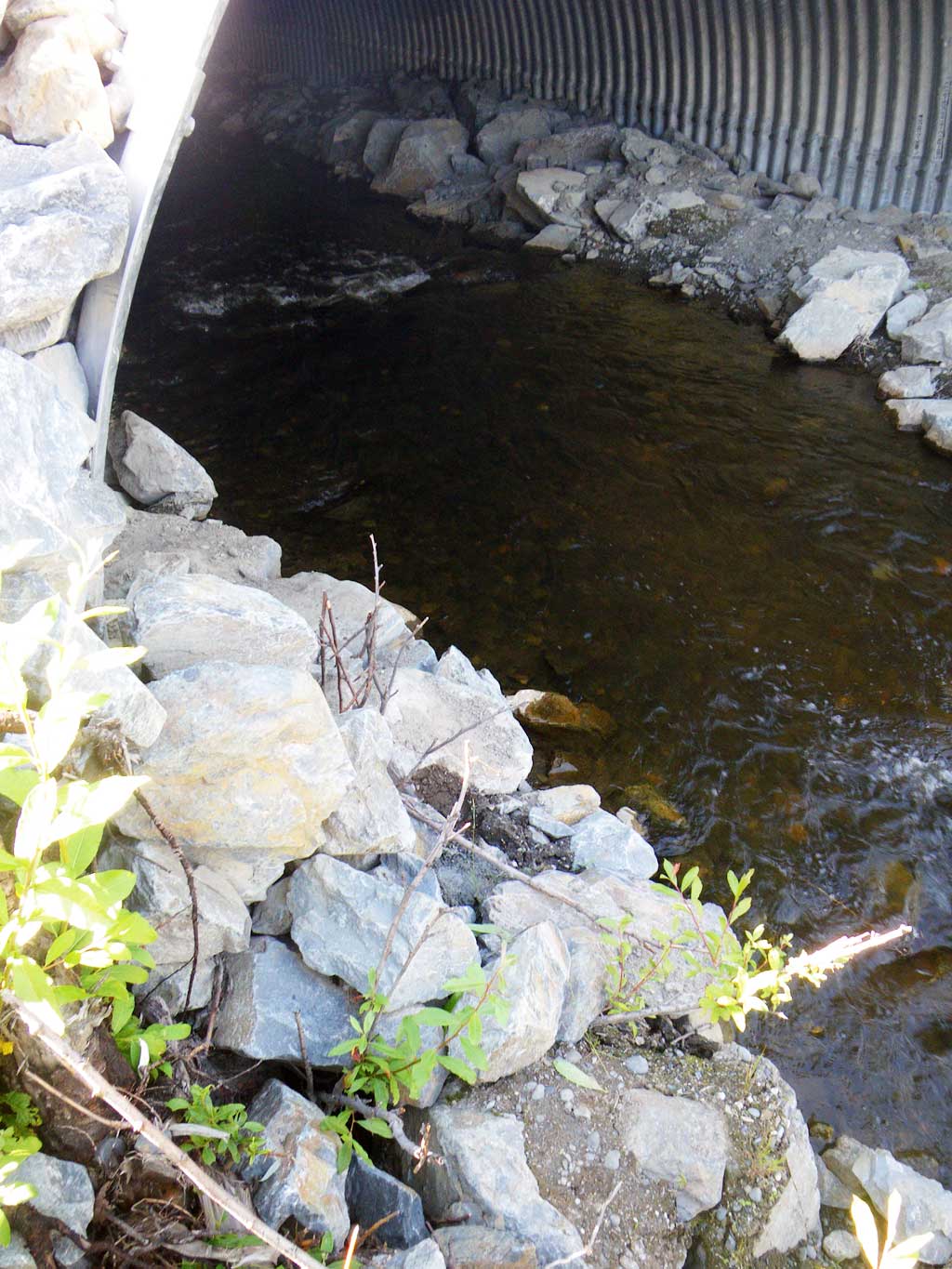

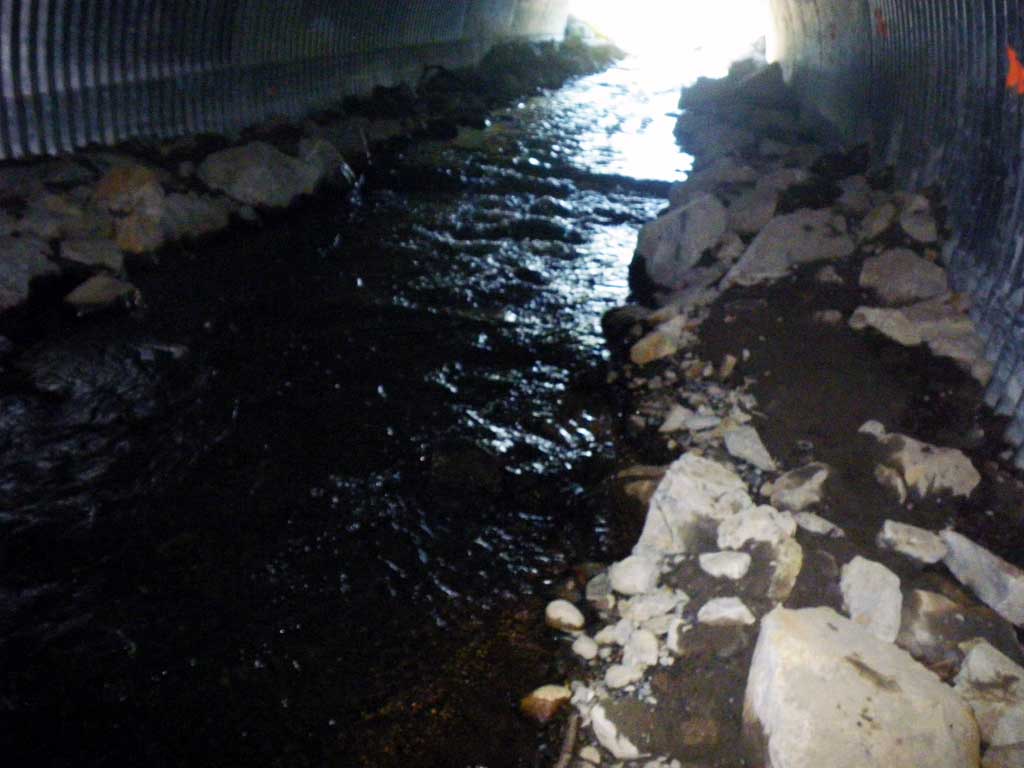

Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurments taken from site plans and have not been verified. Culvert width 18 ft. Culvert length 188 ft. Substrate detph 9 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
