Fish Passage Site 20300738

Coordinates (dec. deg.): 60.87370°, -149.03813°
Legal Description: S009N002E14
Region: South Central

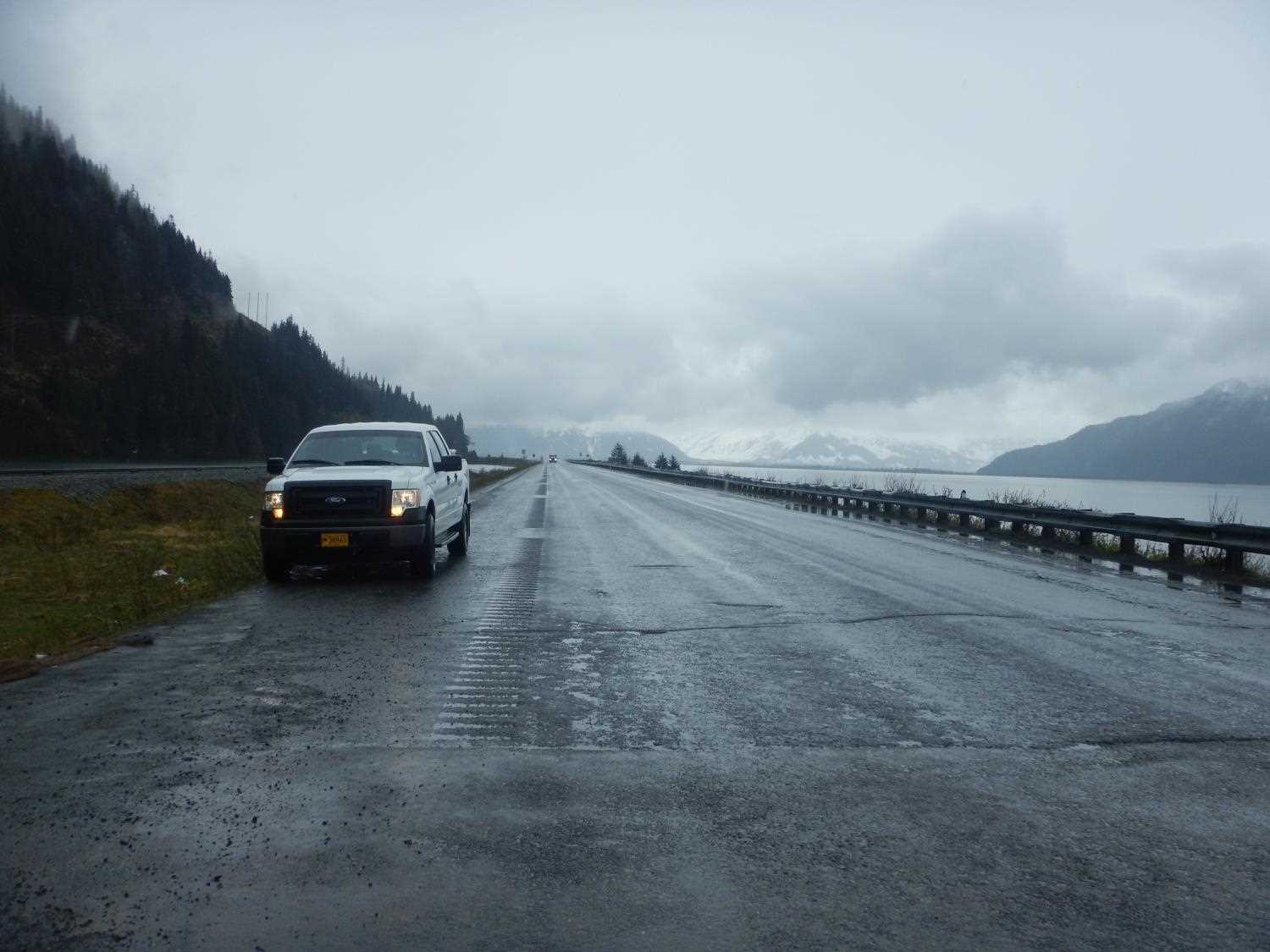

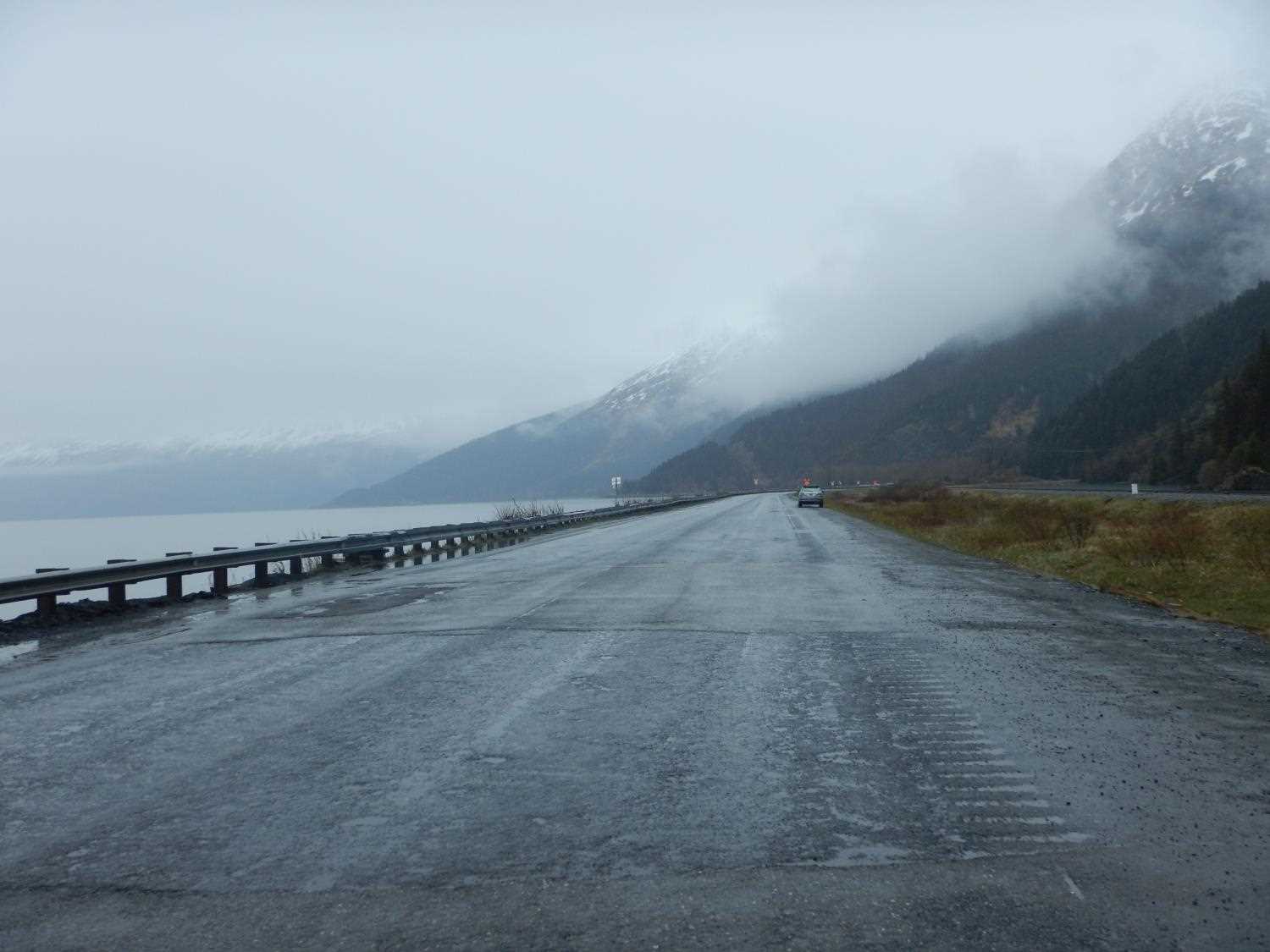

Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #: 247-60-10234
Stream Name:

Elevation:

Site Comments: FOUR CULVERT GROUP, 2 UNDER RR TRACKS AND 2 UNDER SEWARD HWY. NO WATERSHED NAME. POND/MARSH ABOVE

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-0738

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Gray

Tidal: Yes
Backwatered:

Step Pools:
Construction Year: 2019

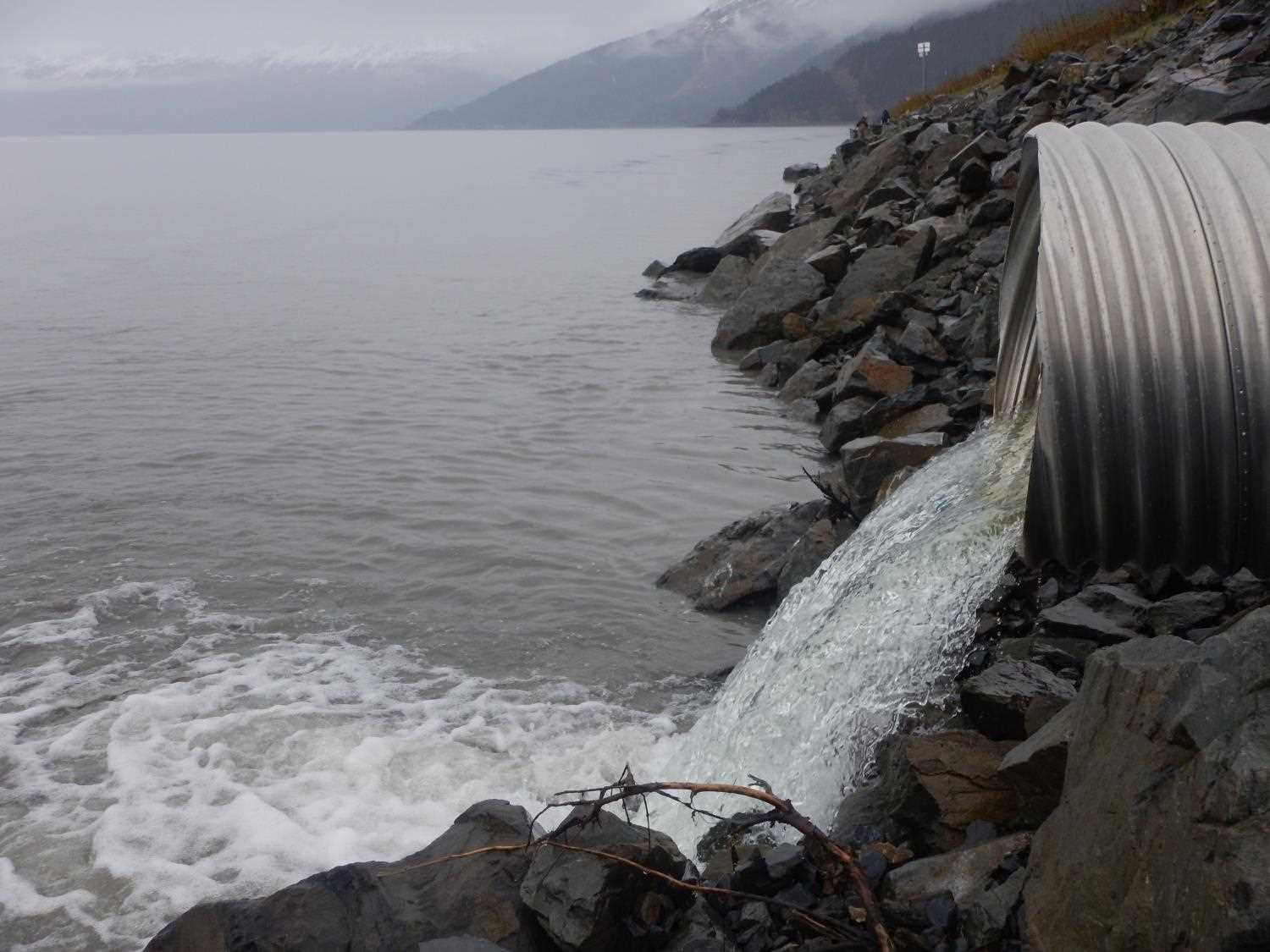

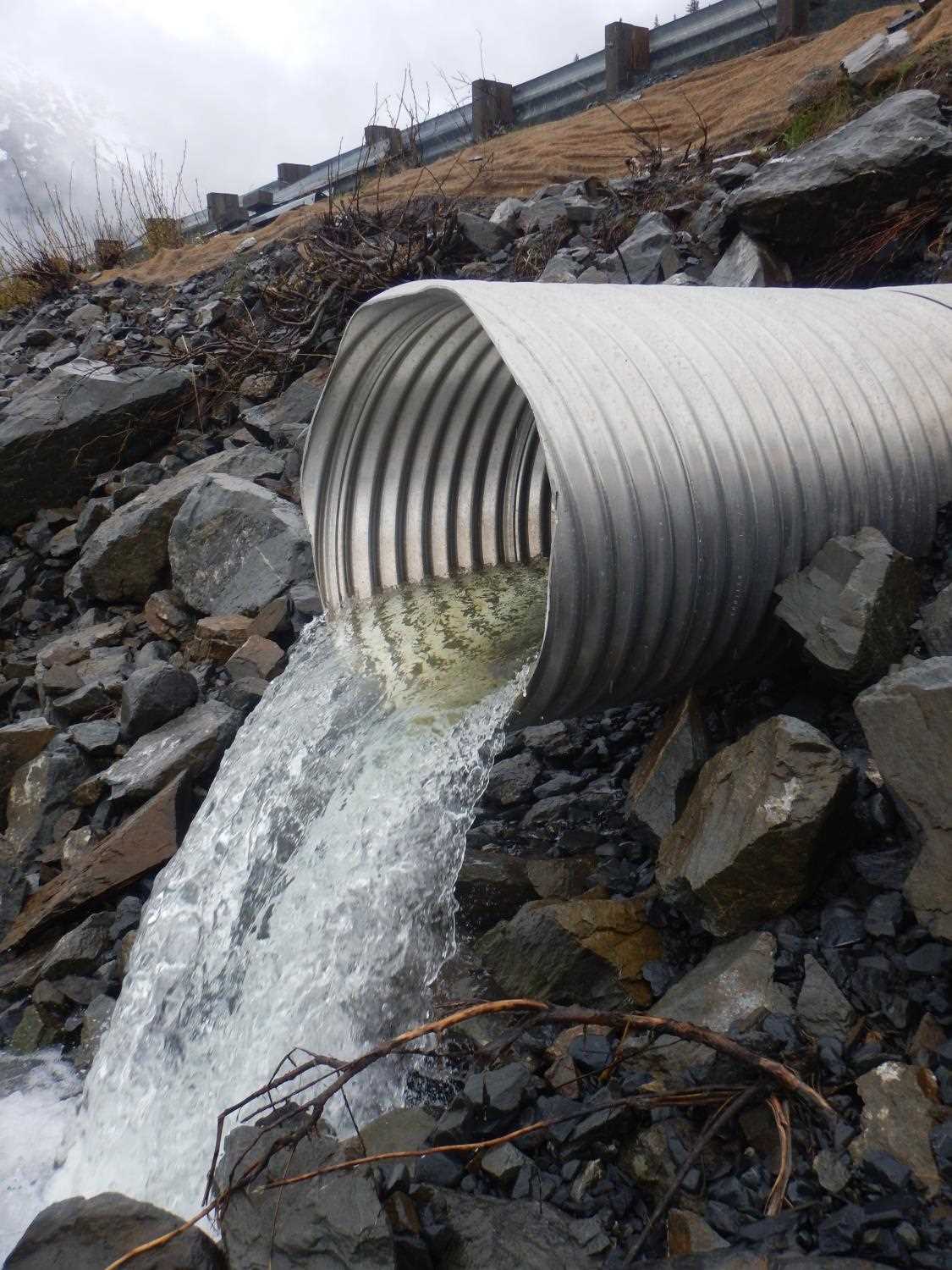

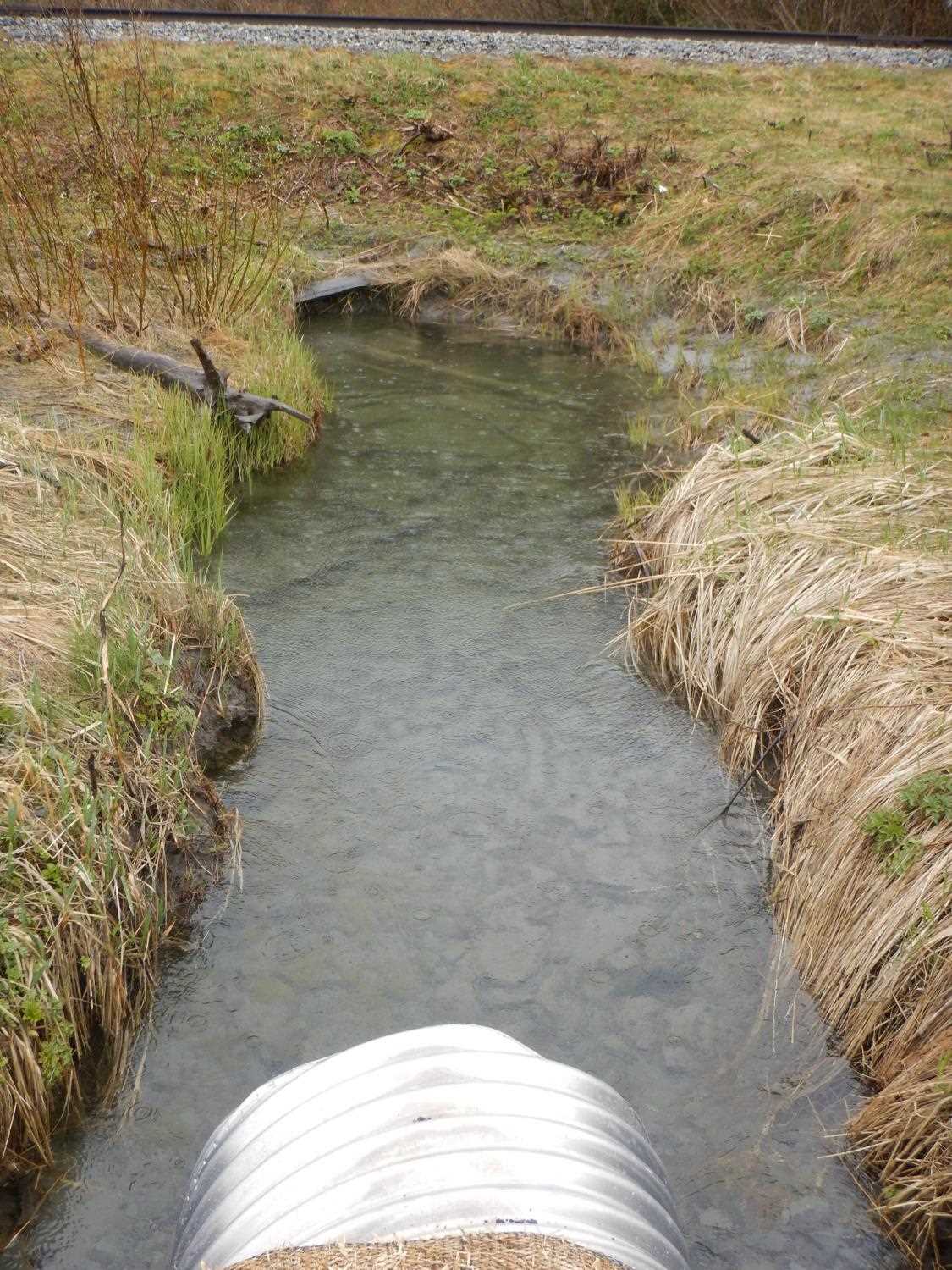

Comments: Culvert information and photos submitted by Will Frost, ADFG, HB. Culvert was replaced as part the Seward Highway Phase I improvement project. Culvert replaced under fish habitat permit FH-17-II-0007. Culvert under railroad tracks just upstream. Culvert is tidally influenced and is perched at low tide.

Culvert Measurements

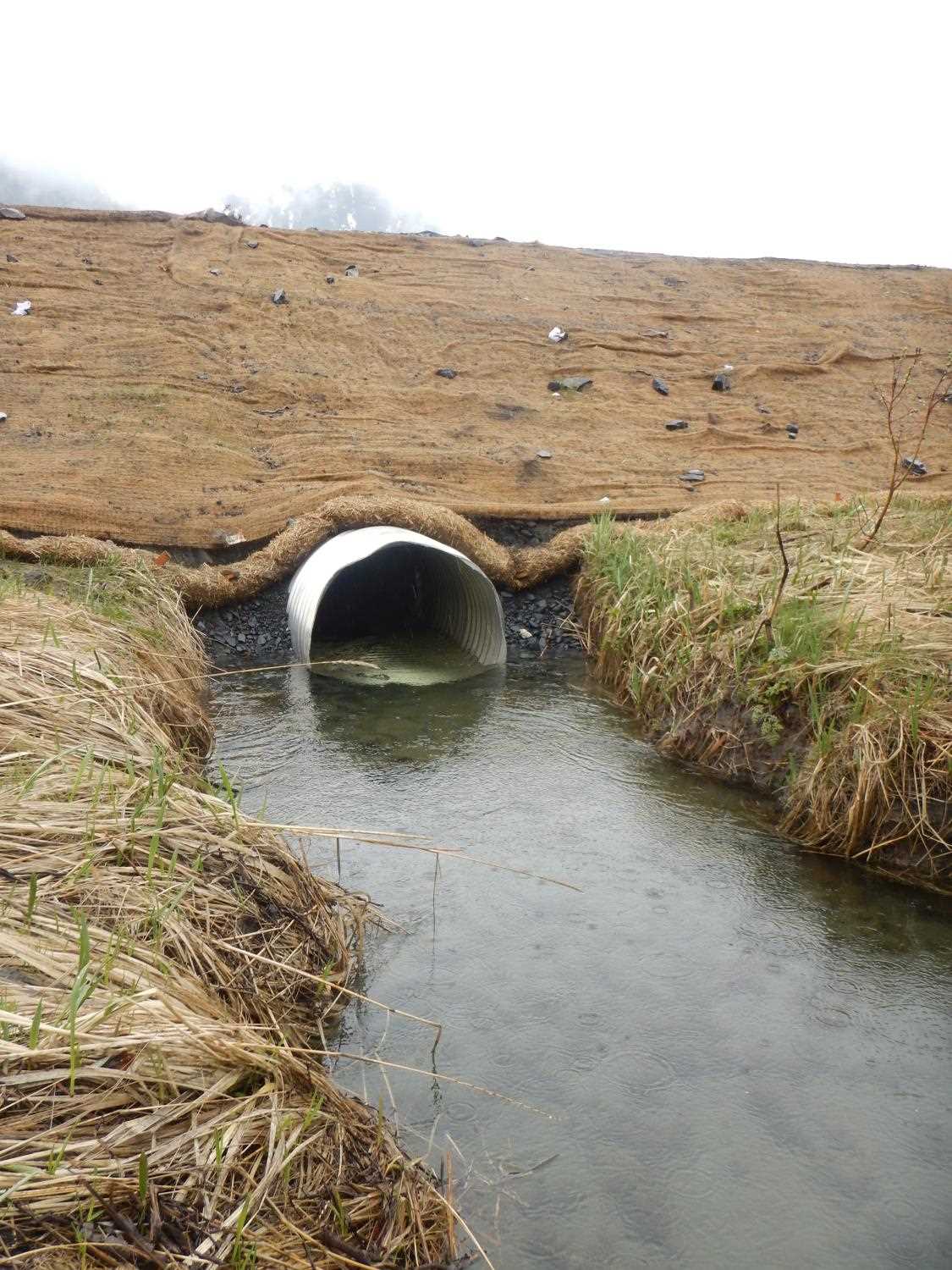

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Gray

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurements taken from fish habitat permit and have not been verified. Culvert diameter 3 feet, culvert length 101 feet, culvert gradient 0.30%. Culvert is tidally influenced

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
