Fish Passage Site 20300737
Coordinates (dec. deg.): 60.85720°, -149.01292°
Legal Description: S009N002E24
Region: South Central
Road Name: Seward Highway
Quad Name / ITM: Seward D-6
AWC Stream #: 247-60-10235

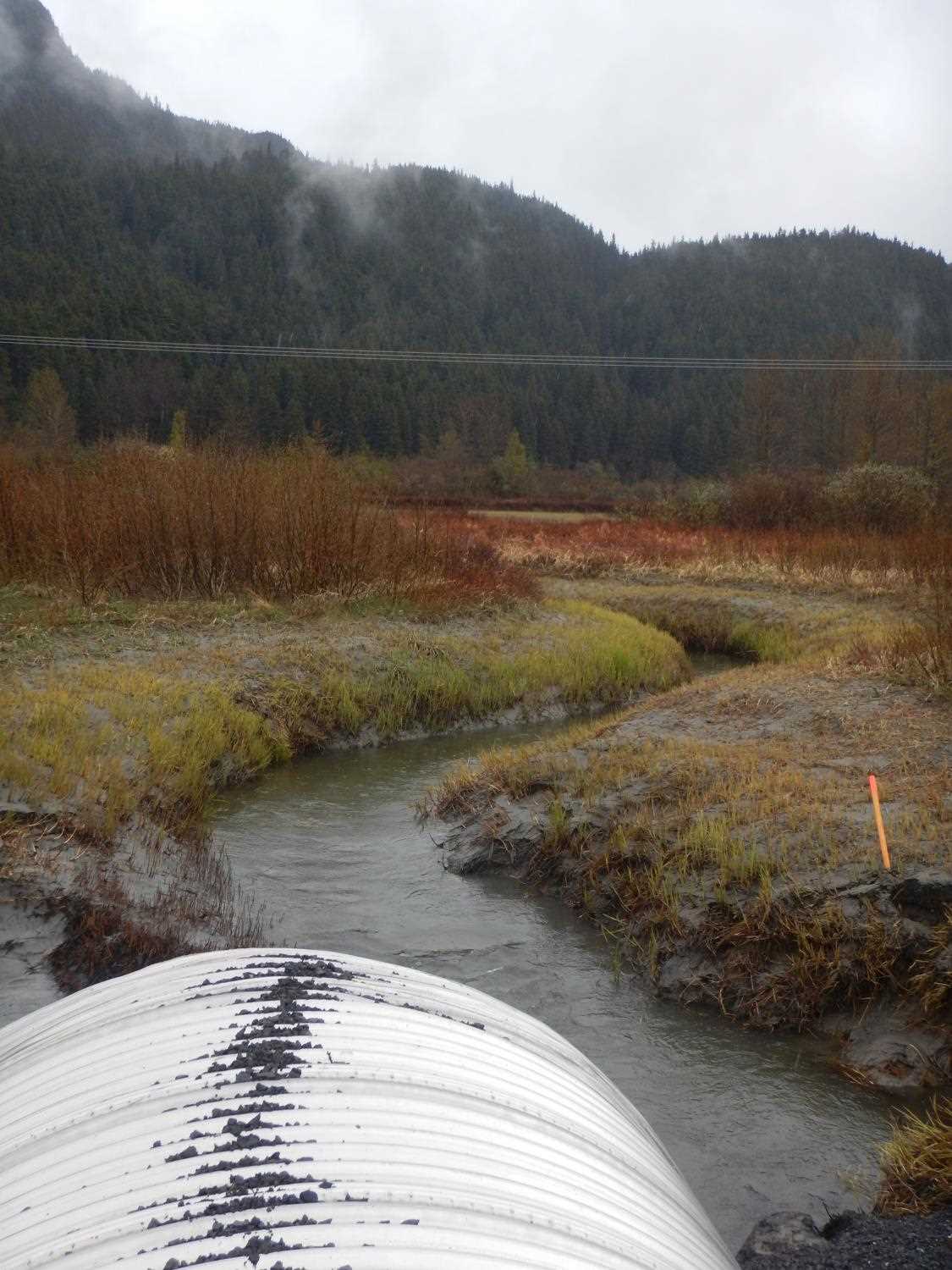

Site Comments: UNAMED WATERSHED ADJACENT TO SEWARD HIGHWAY, UPSTREAM AREA IS A MARSH
arrow to the right of the survey date below to choose a different report for this site.
Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost
Overall Fish Passage Rating:
Construction Year: 2019

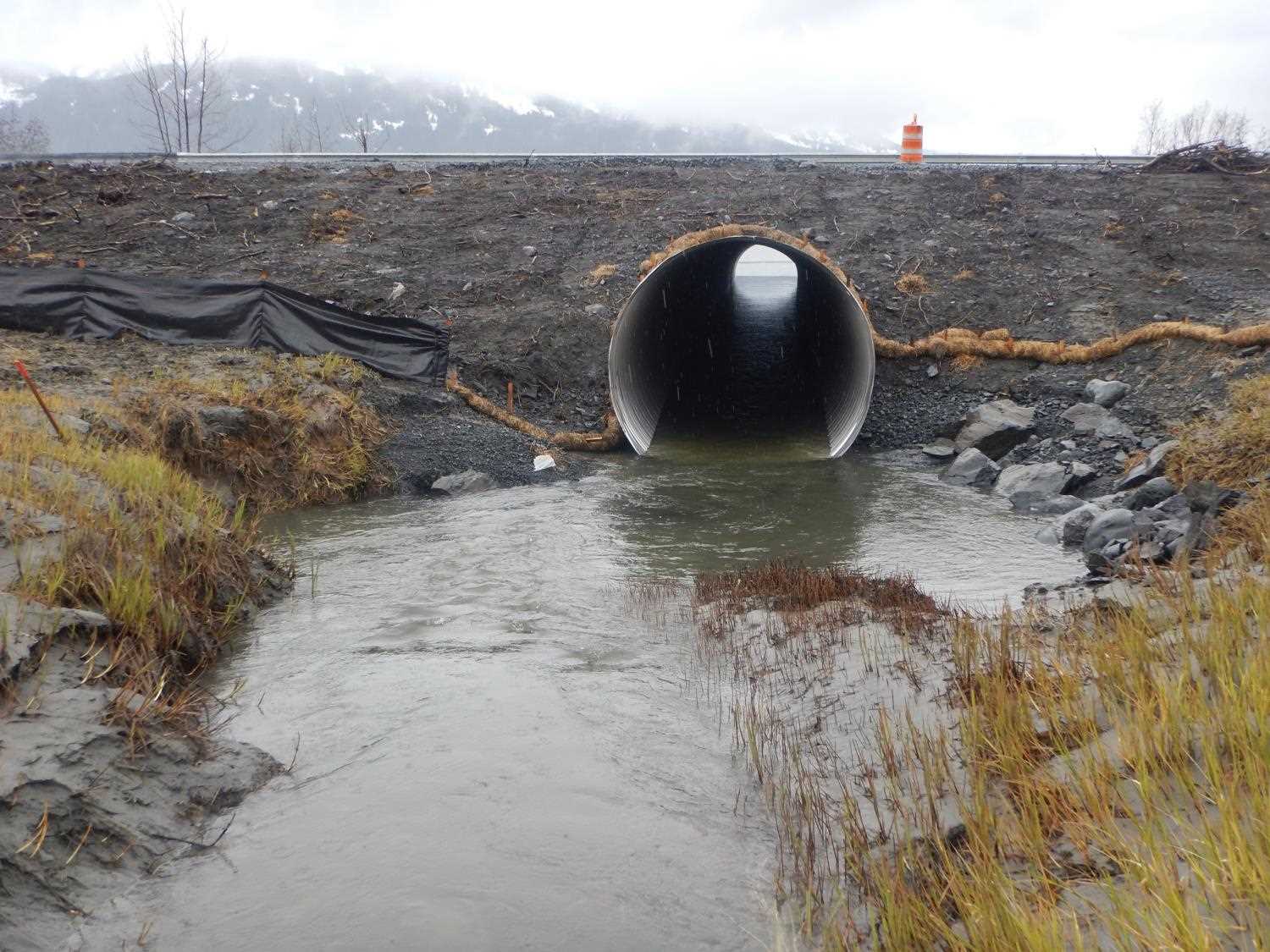

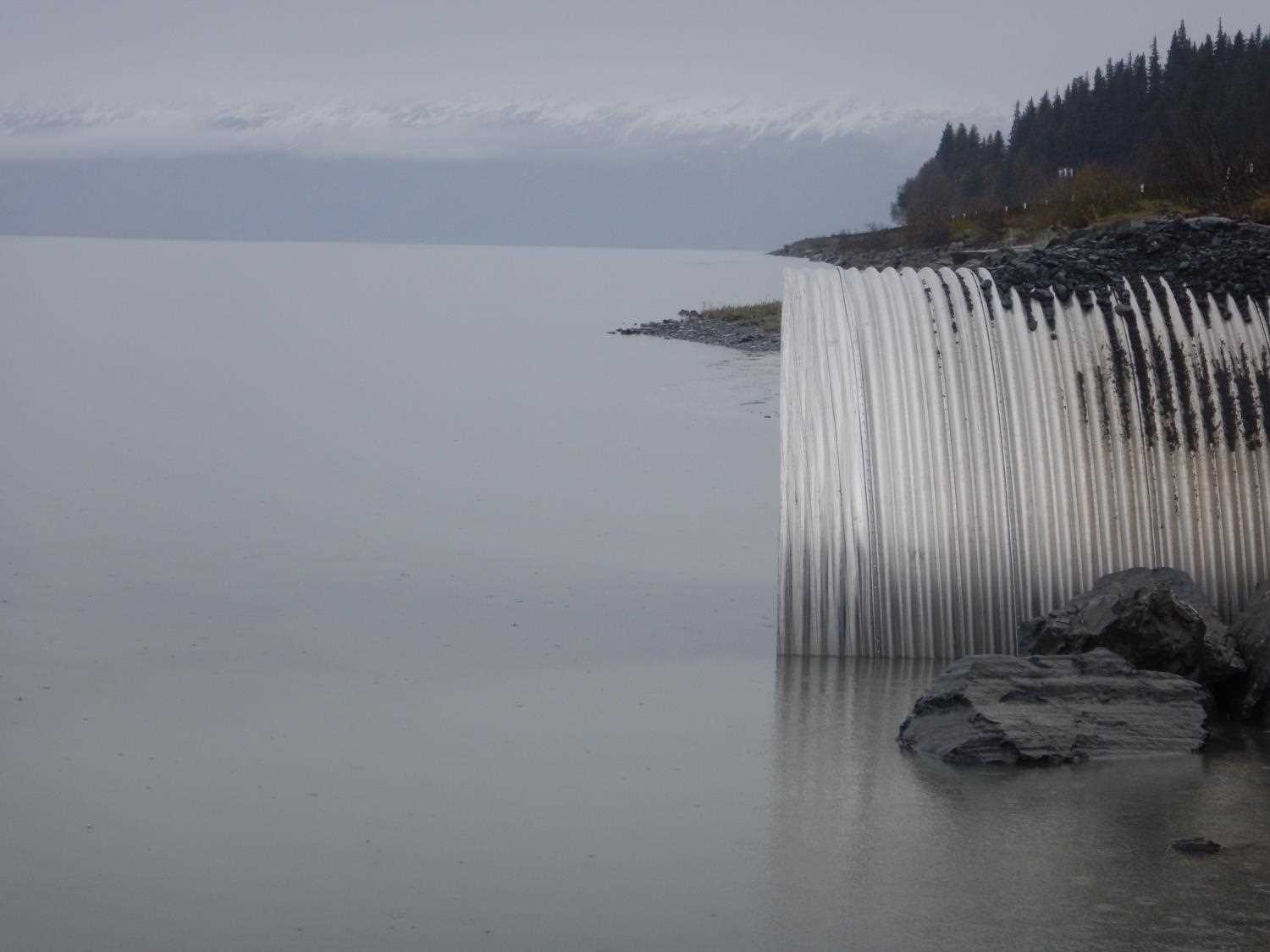

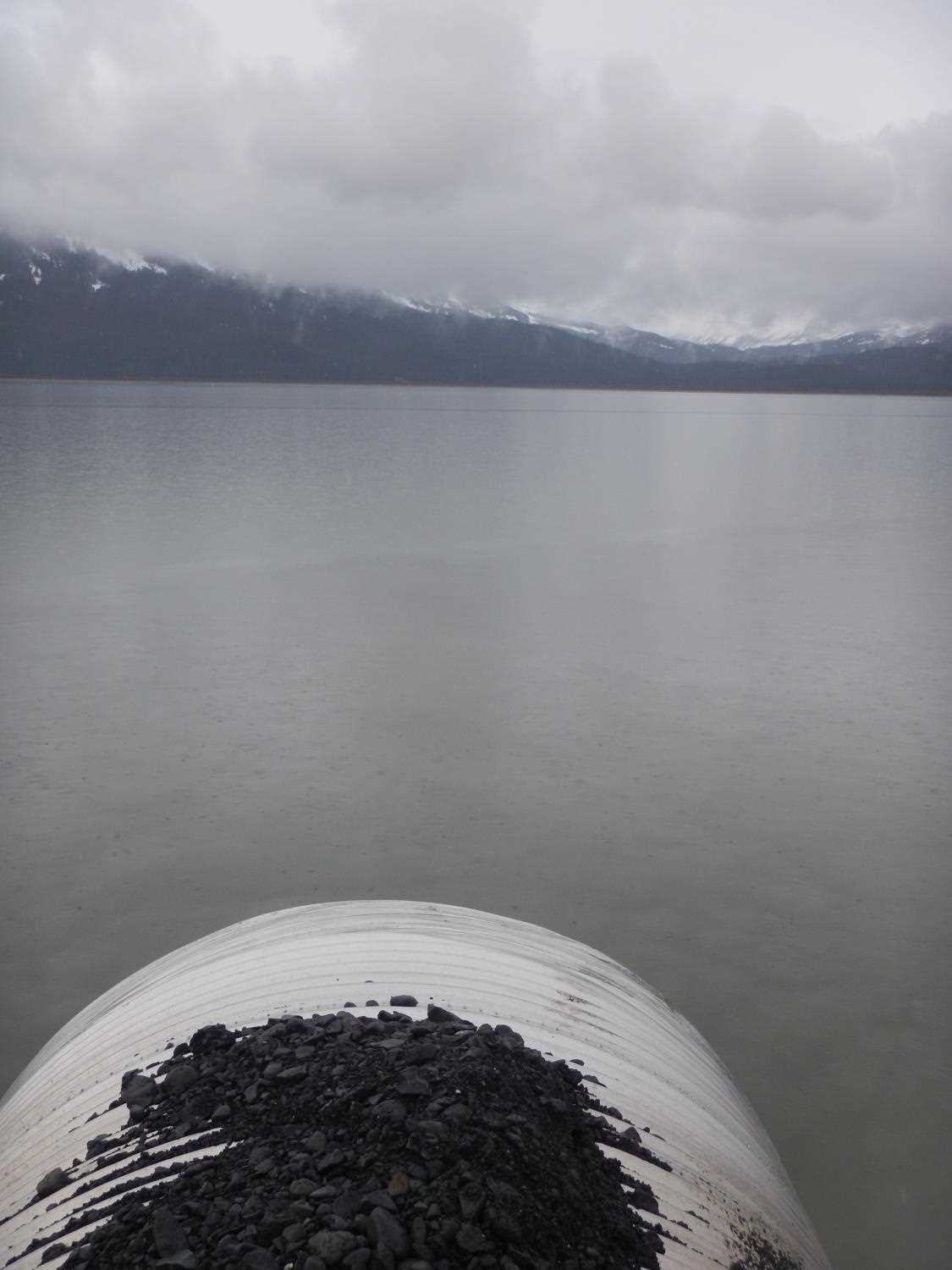

Comments: Culvert information and photos submitted by Will Frost, ADFG, HB. Culvert replaced as part of the Seward Highway Phase I improvement project. Site was replaced under Fish Habitat permit FH-17-II-0005. Culvert is tidally influenced.
|ID: 1||Structure Type: Circular pipe (Corrugated aluminum)||Fish Passage Rating:|

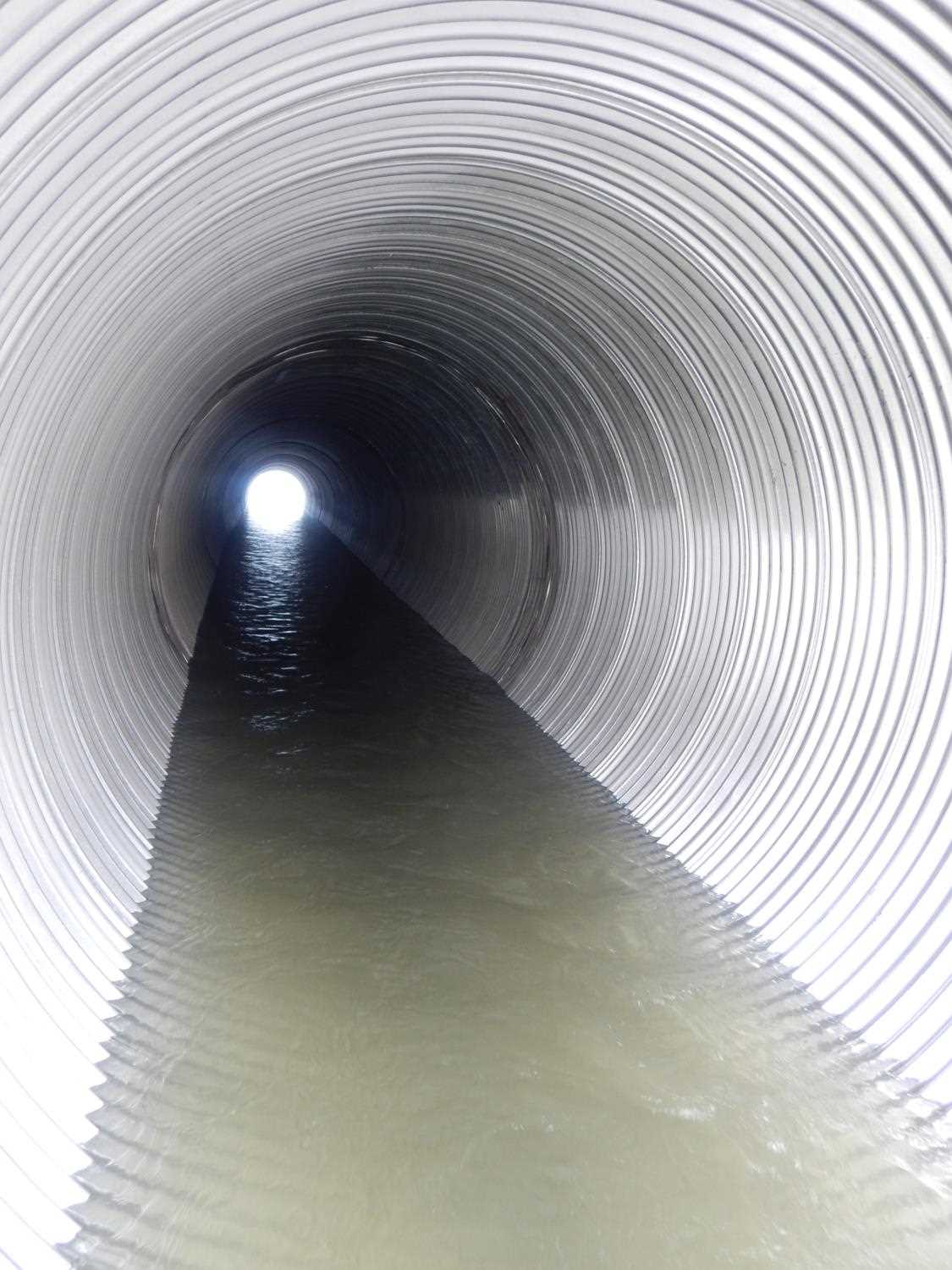

Comments: All culvert measurements taken from habitat permit and have not been verified. Culvert diameter 6 feet, culvert length 154 feet, culvert slope 0.5%.
No stream width data available.
No elevation data available.
Fish Sampling Efforts
No fish sampling occurred during this survey.
No fish observations occurred during this survey.
Questions or comments about this report can be directed to email@example.com
