Fish Passage Site 20300205

Coordinates (dec. deg.): 60.95693°, -149.11571°
Legal Description: S010N002E16
Region: South Central
Road Name: Alyeska View Avenue

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #:
Stream Name: Glacier Creek tributary

Elevation:

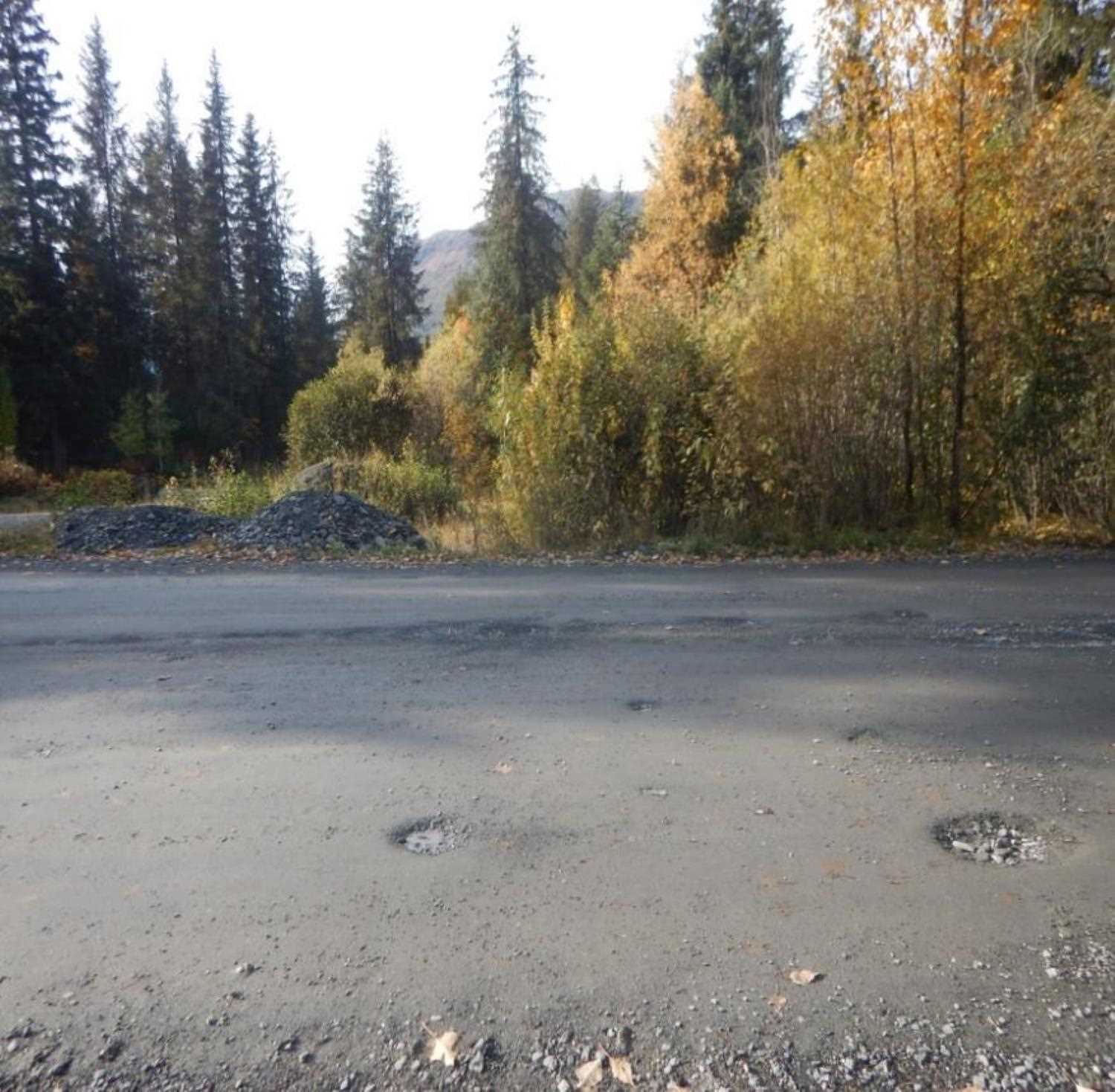

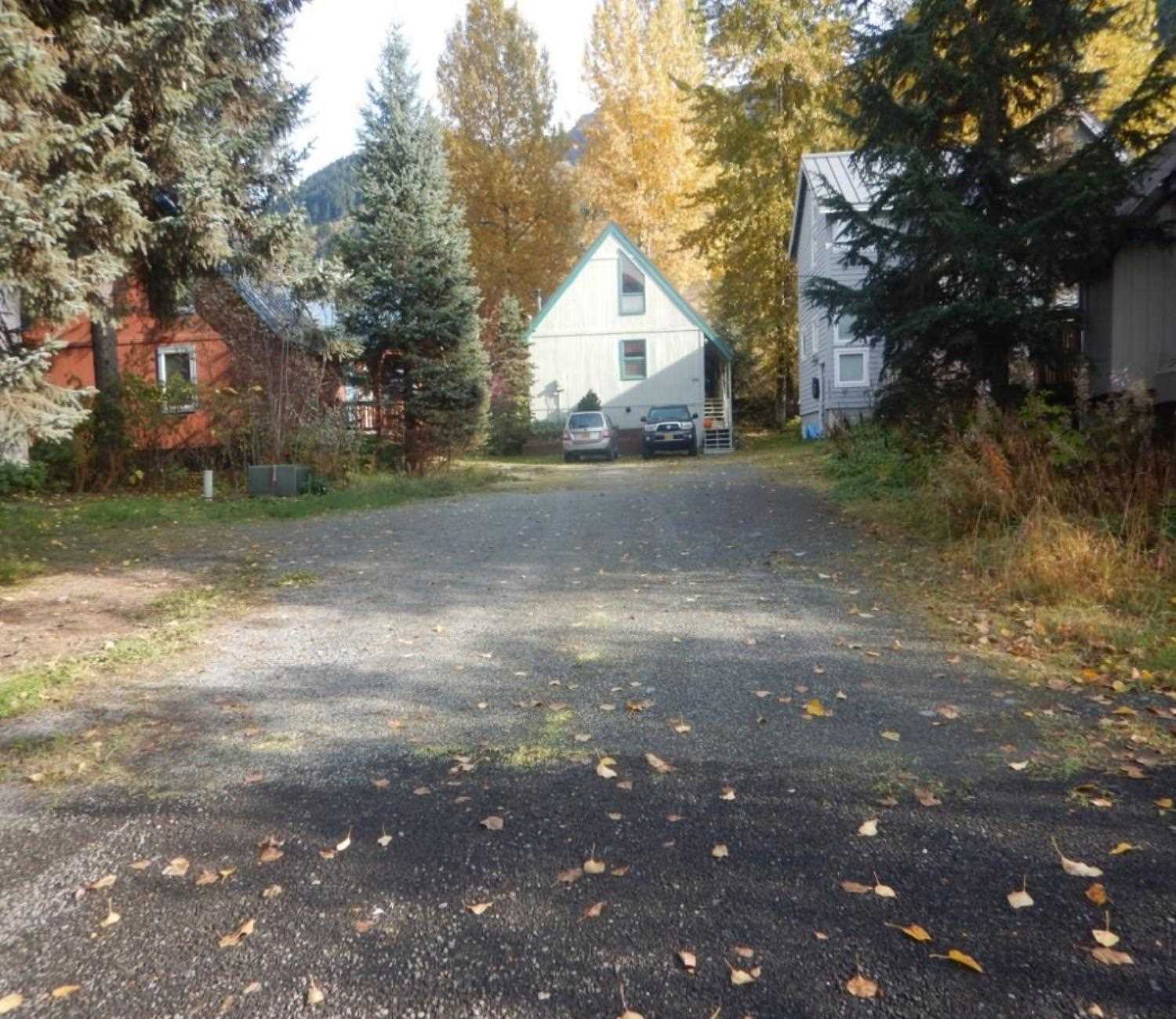

Site Comments: Driveway off of Alyeska View Avenue. Just upstream of 20300204 and downstream of 20300206.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPD20-4A205

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: William Frost, William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year: 2019


Comments: Submitted by Will Frost, ADFG. Replaced by MOA. See Fish Habitat Permit FH 19-II-0030 for plans. Resident Dolly Varden observed in the stream.

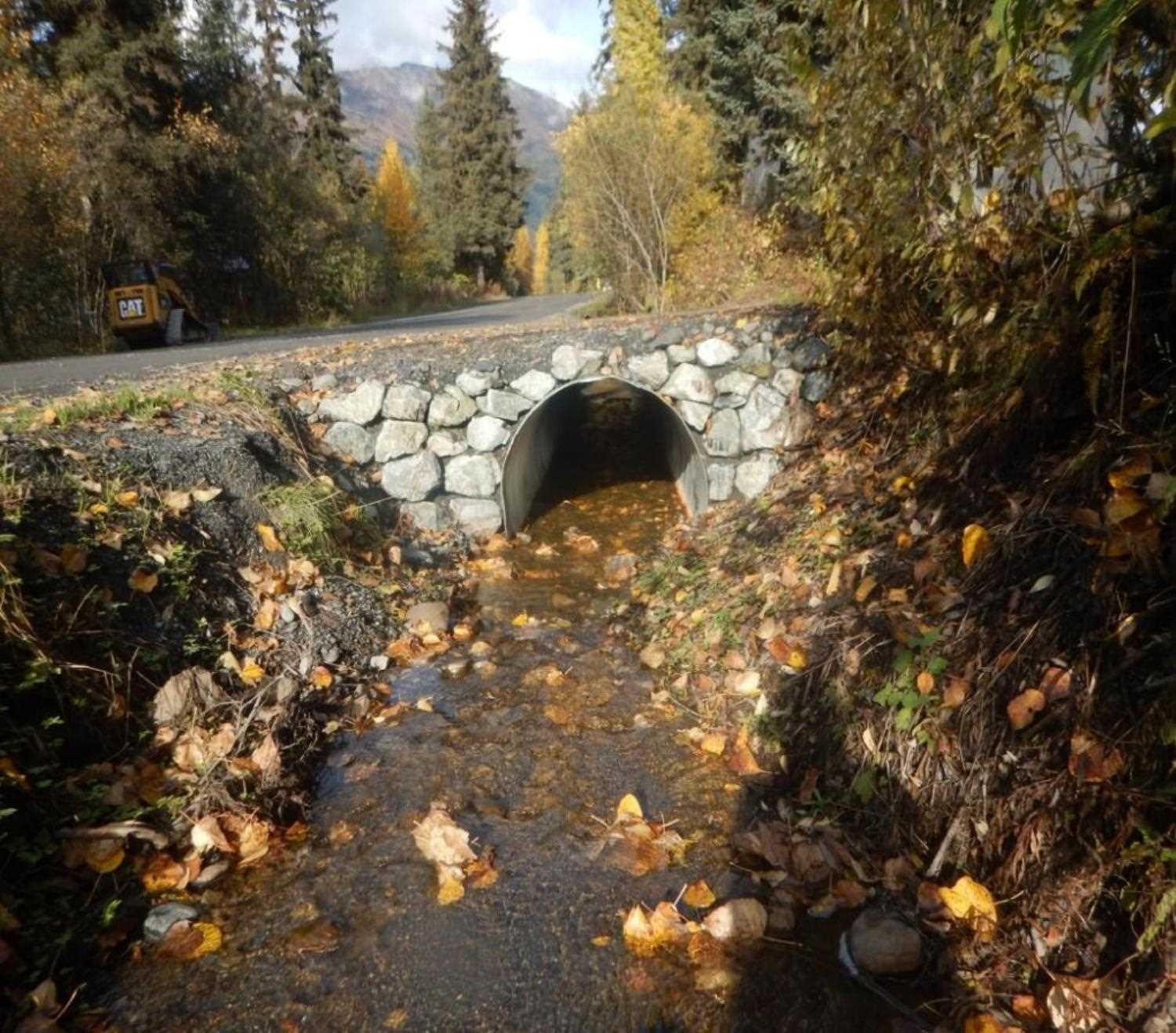

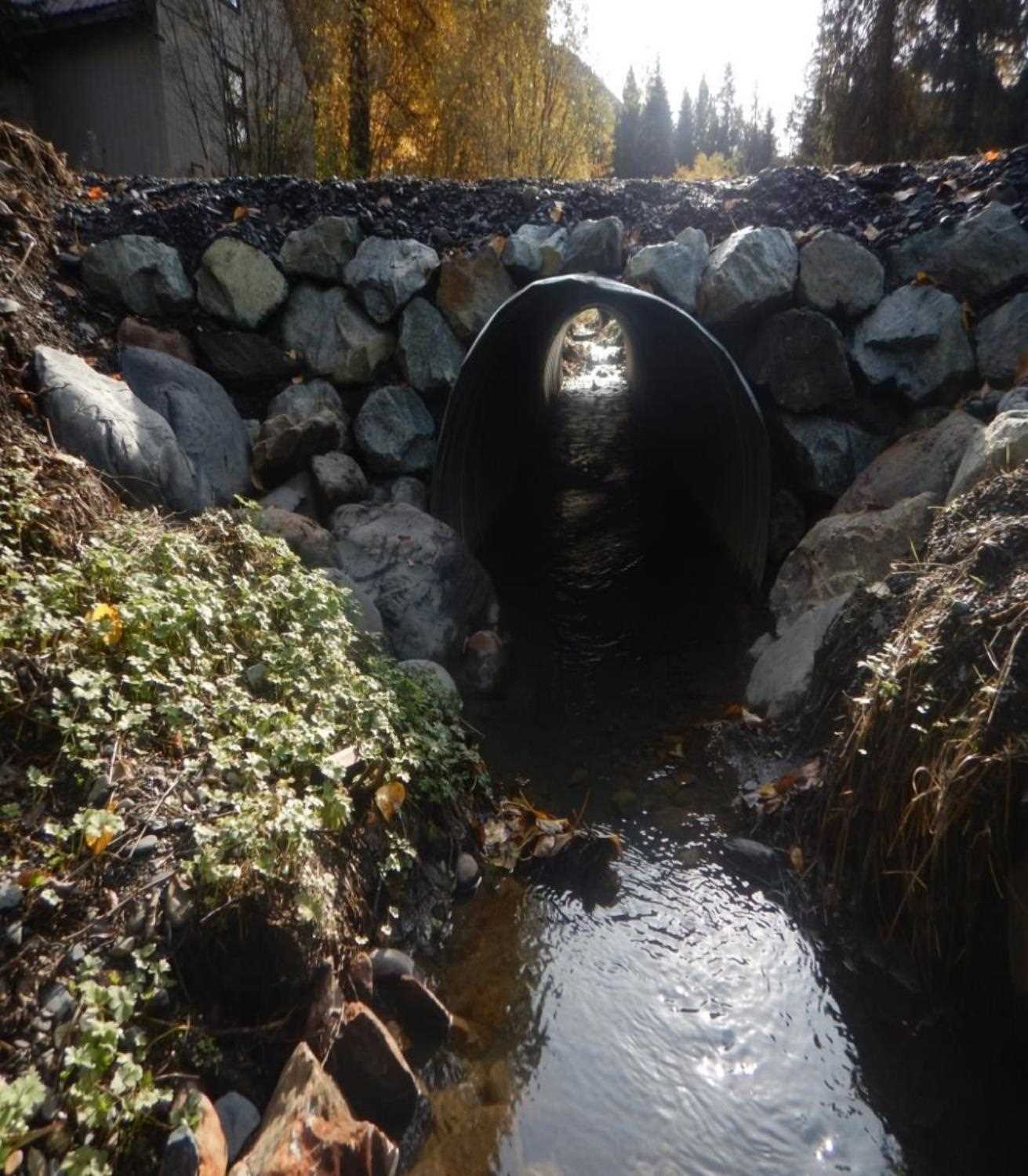

Culvert Measurements

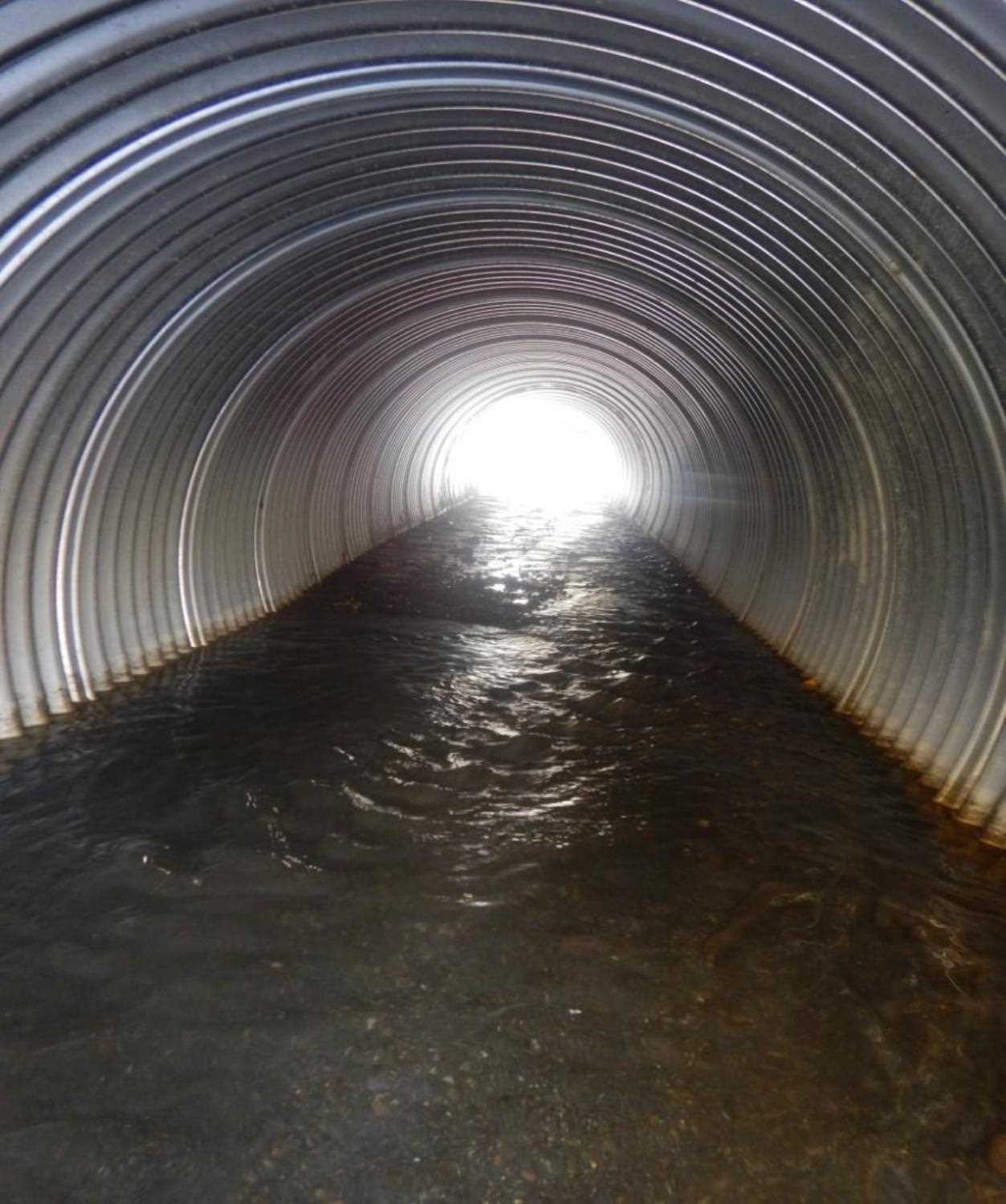

ID: 1 Structure Type: Circular pipe Fish Passage Rating: Black

Length(ft): 45.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0
Height(ft):4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:

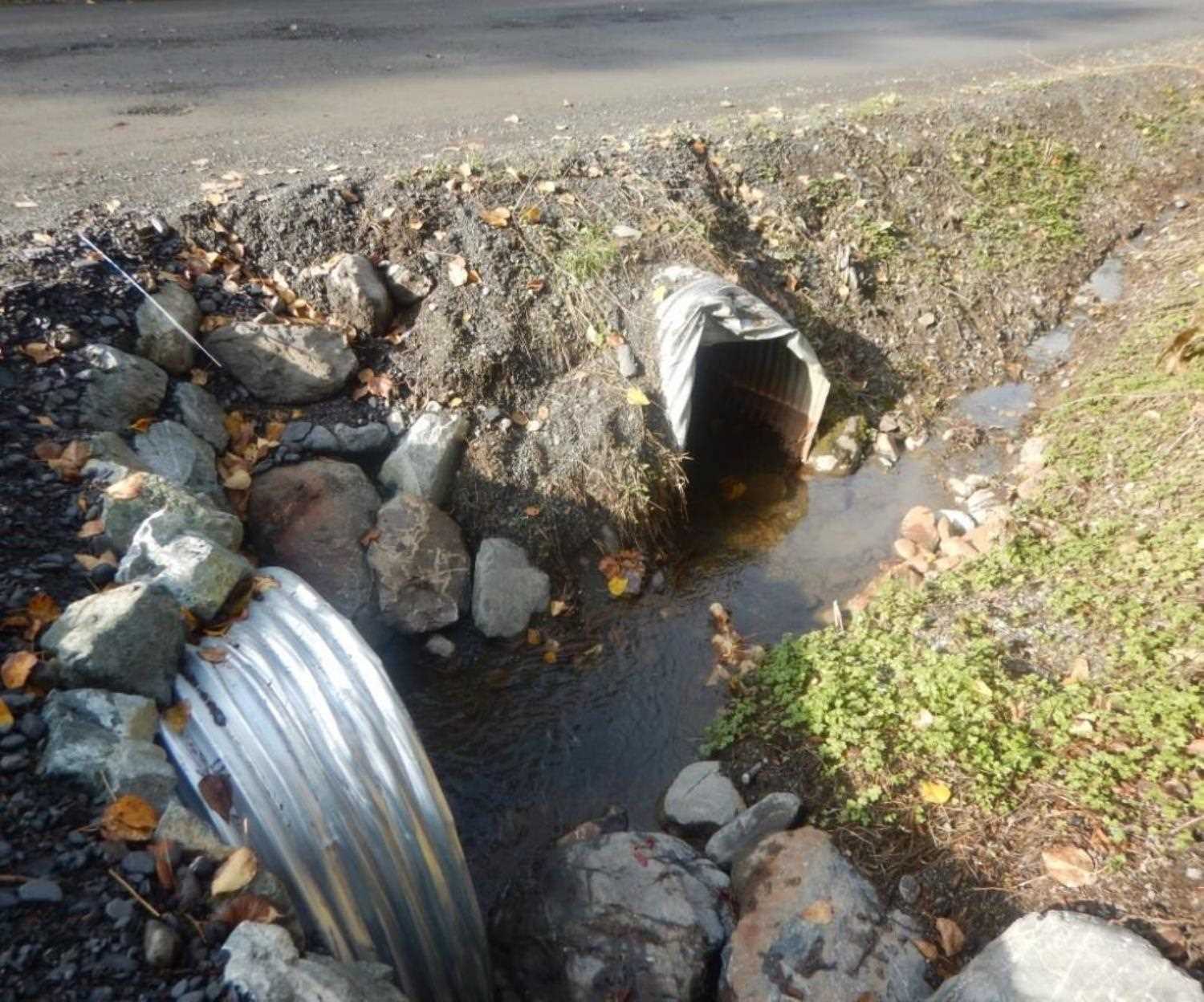

Outfall Type: Free Fall on To Rip Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Dimensions estimated based on FH19-II-0089 plans. H 108" X W 108" X L 128 feet

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
