Fish Passage Site 20200637
Coordinates (dec. deg.): 61.13788°, -146.31607°
Legal Description: C008S006W33
Region: South Central
Road Name: Richardson Highway
Datum: NAD83
Quad Name / ITM: Valdez A-7
AWC Stream #:
Stream Name: Unnamed
Elevation:
Site Comments: MP 2.2
arrow to the right of the survey date below to choose a different report for this site.
Survey UPDATE-RICH637
Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman
Overall Fish Passage Rating:
Tidal: Yes
Backwatered:
Step Pools:
Construction Year: 2012
Comments: Site replaced in July 2012.
Culvert Measurements

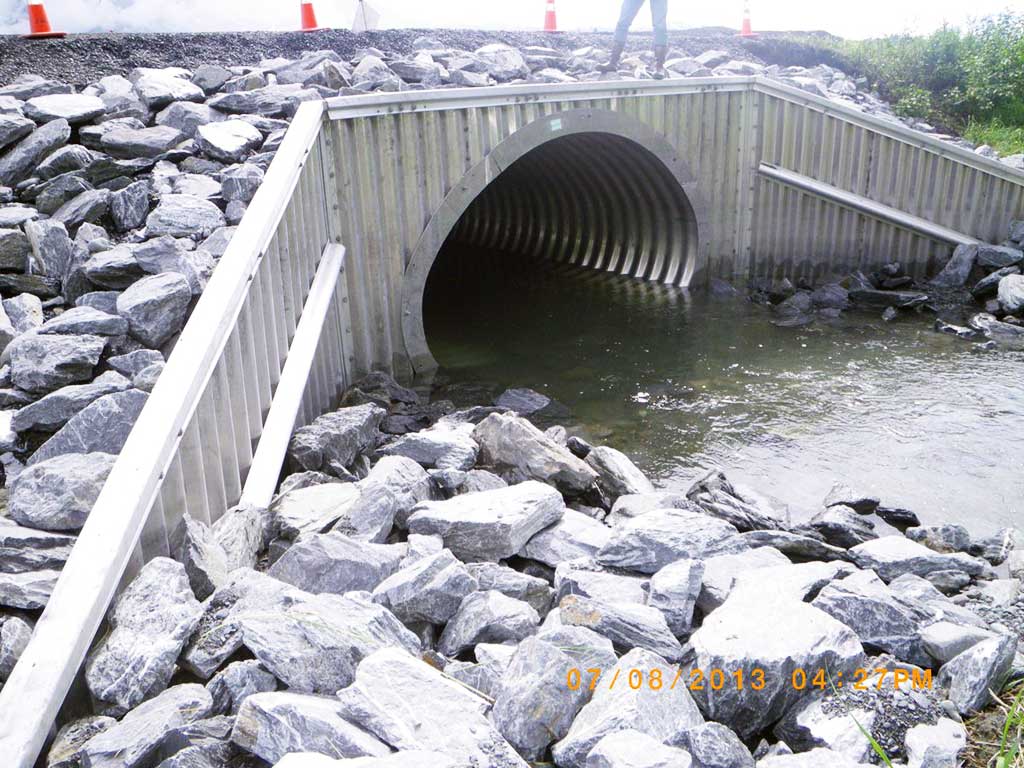

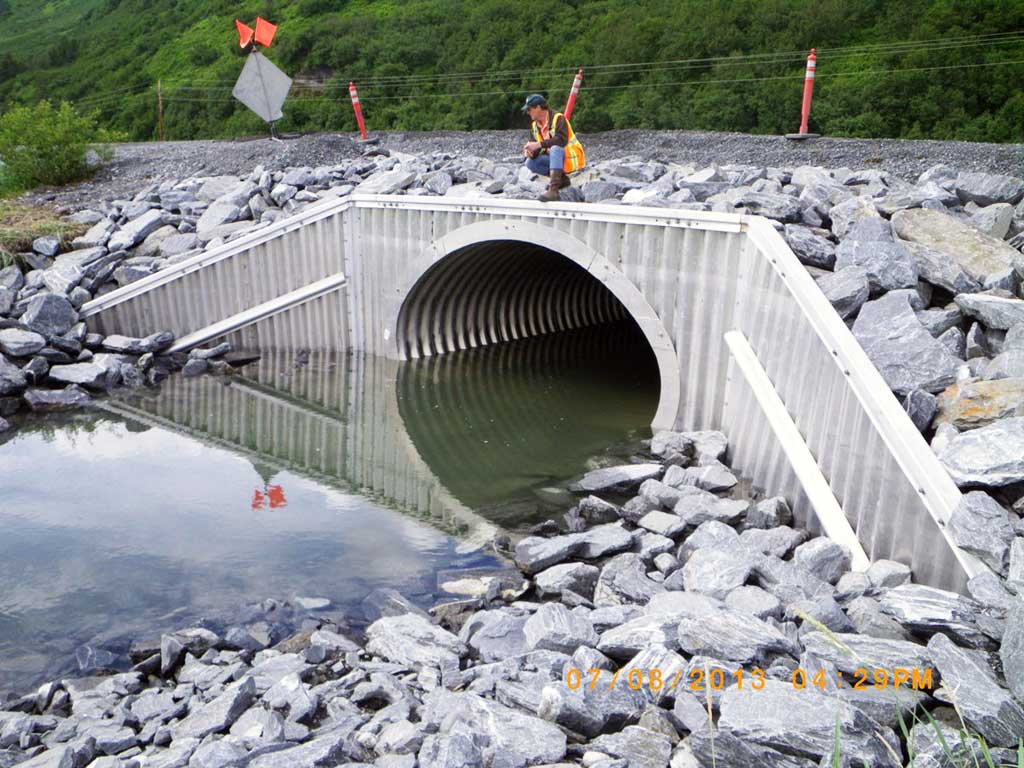

ID: 1 | Structure Type: Pipe-arch (Structural aluminum plate) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||
Comments: All culvert measurments and slope taken from As-built plans and have not been verified. Rip rap apron 45' downstream, 15' upstream. Culvert width 13.08 ft. Cuvlert height 8.17 ft. Culvert length 74 ft. Culvert gradient 0.25% |
Stream Measurements
|
|
No stream width data available.
Elevations
No elevation data available.
Fish Sampling Efforts
No fish sampling occurred during this survey.
Fish Observations
No fish observations occurred during this survey.
Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
