Fish Passage Site 20100765

Coordinates (dec. deg.): 62.71638°, -144.24256°
Legal Description: C011N006E23
Region: South Central
Road Name: Tok Cut-Off

Datum: NAD83
Quad Name / ITM: Gulkana C-1
AWC Stream #:
Stream Name: Copper River Tributary, Unnamed

Elevation:

Site Comments: MP 51.5

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-TOK1

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Andrew Kastning

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

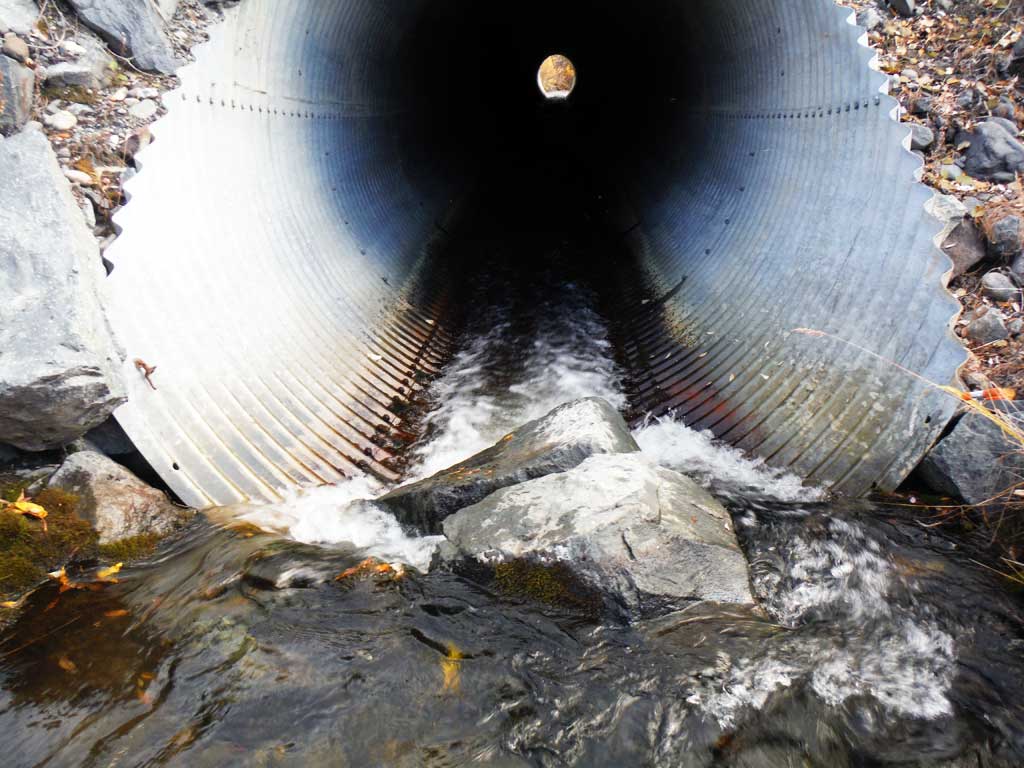

  1. Inlet perch

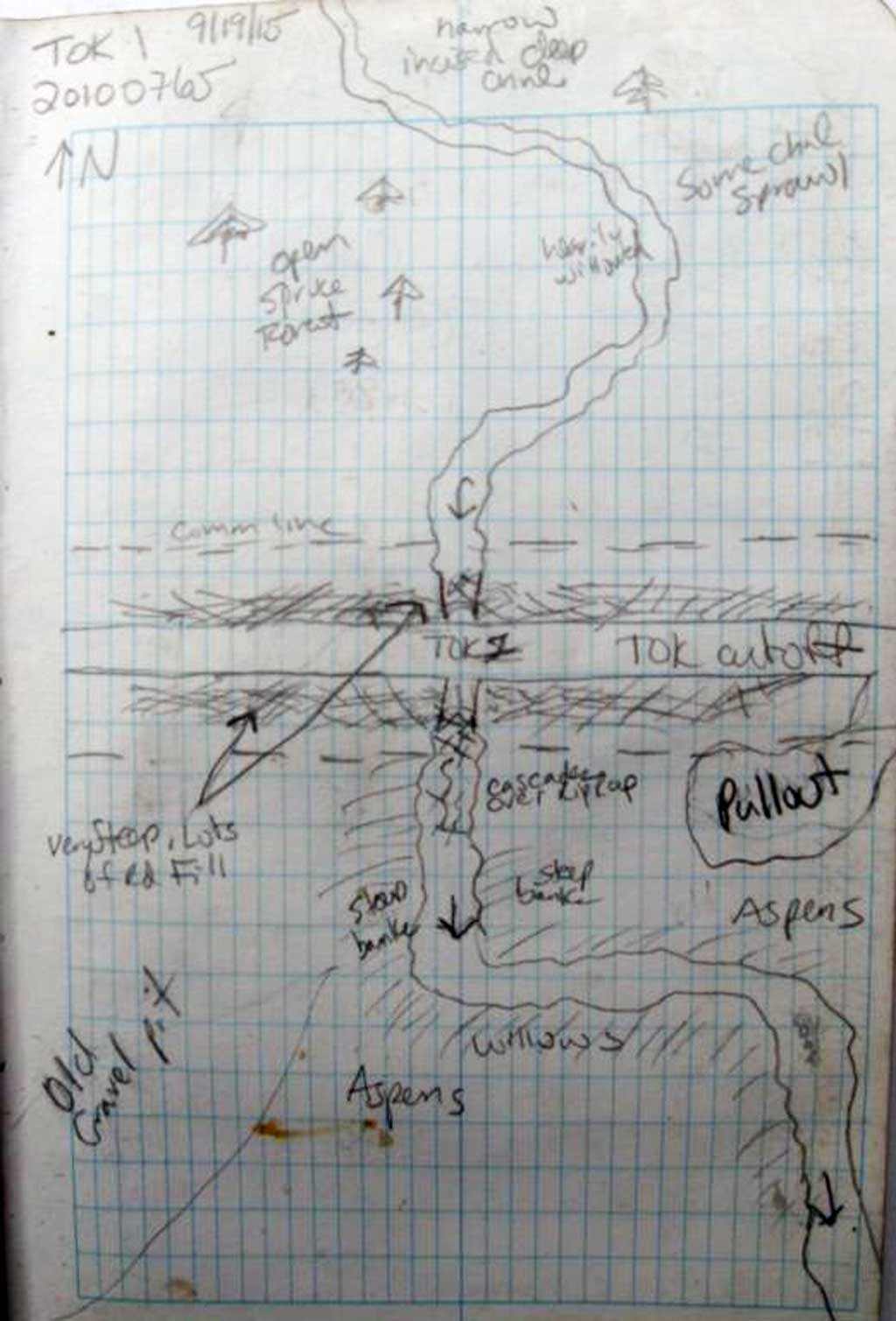

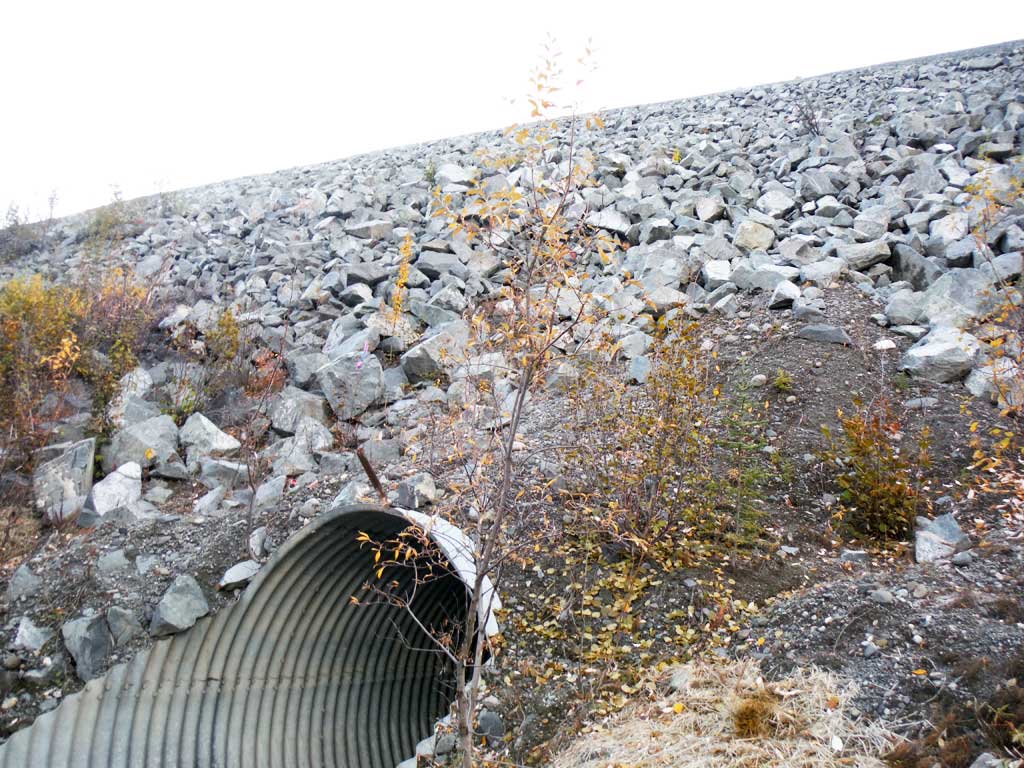

Comments: Assessment conducted by Copper River Watershed Project. Large amount of road fill, did not survey up and over. Upstream and downstream longitudinal profiles are not connected by a common benchmark and should only be used to assess featured above and below the culvert exclusive of each other.

Culvert Measurements

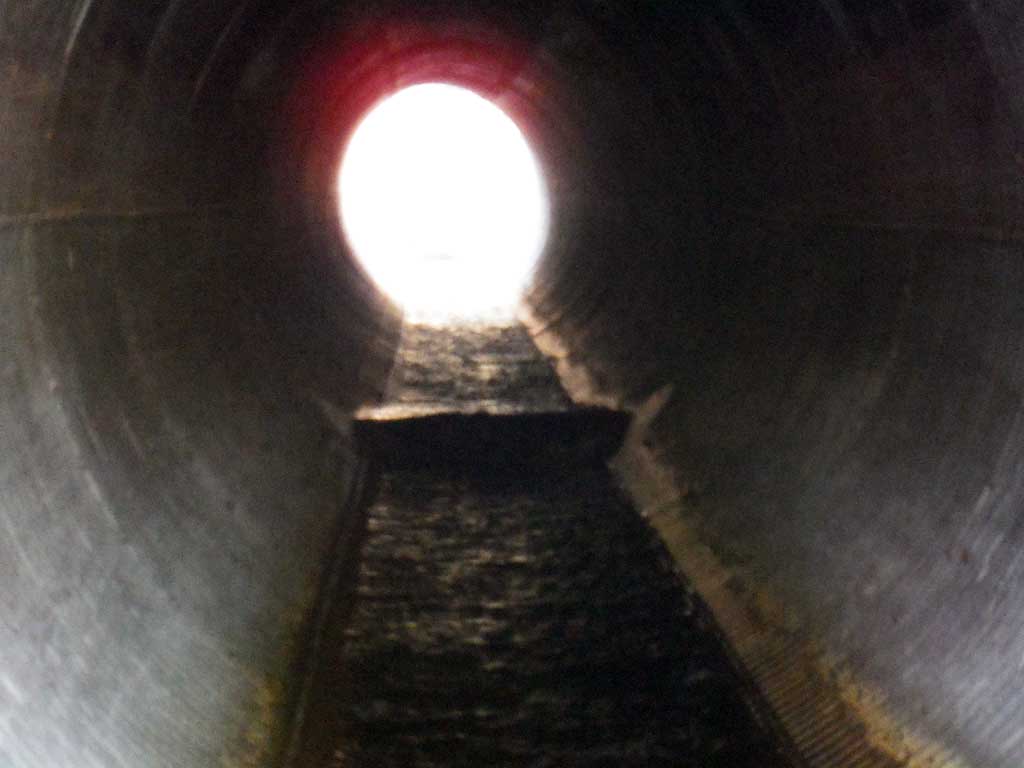

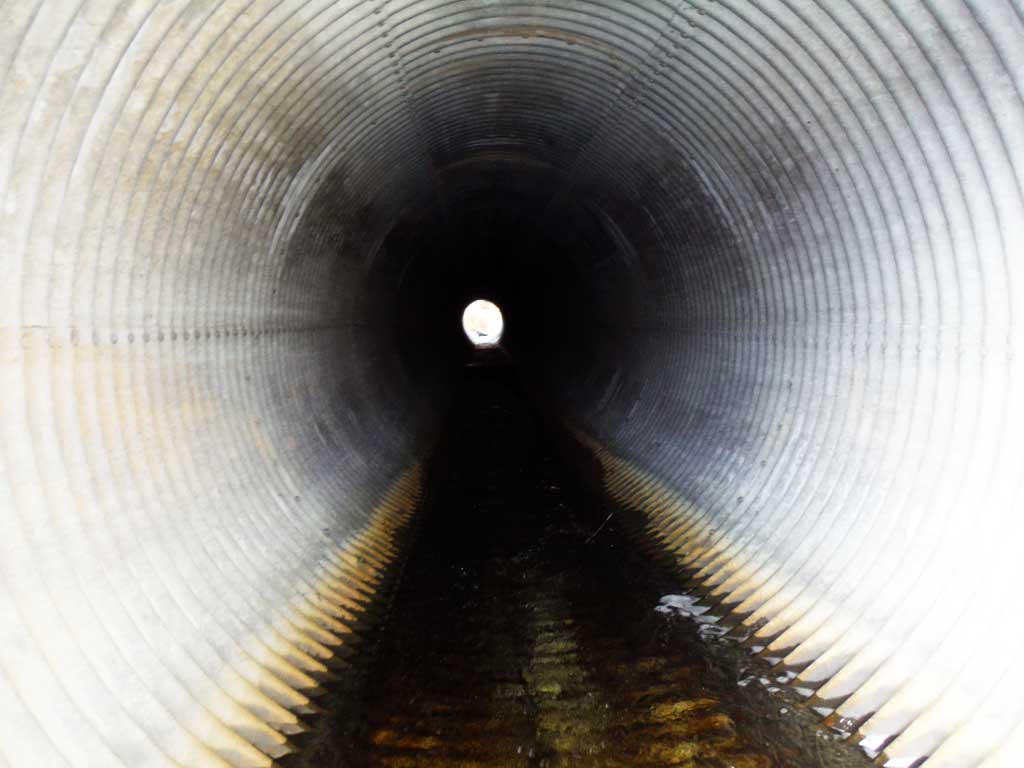

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 238.6

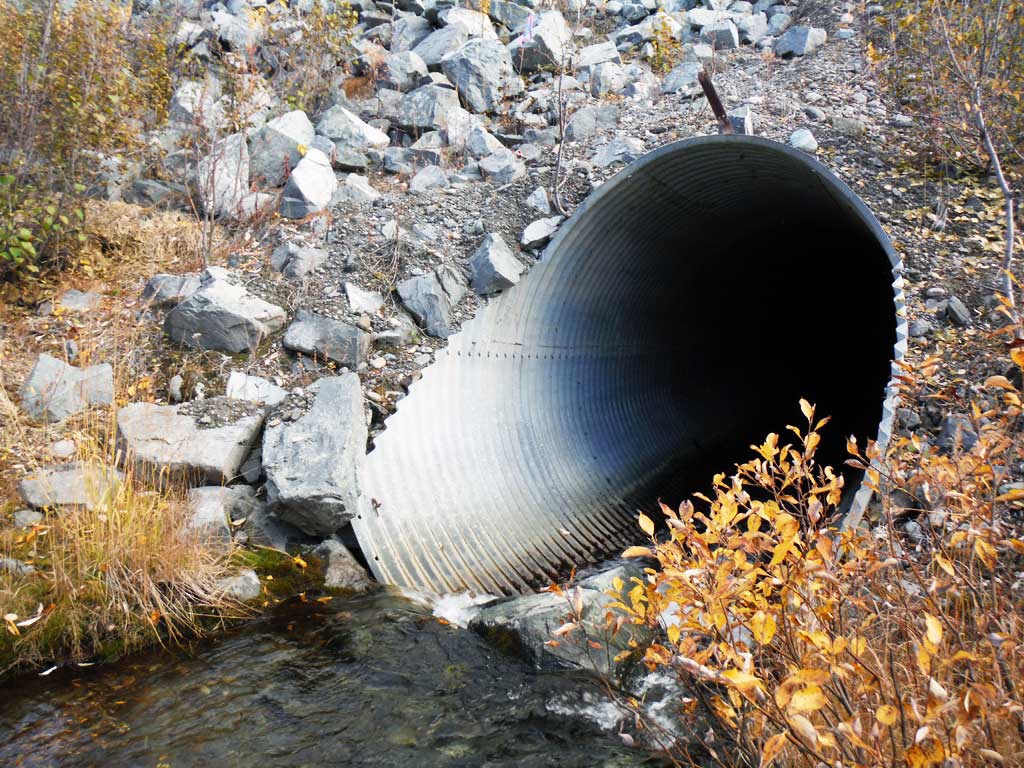

Inlet Type: Mitered

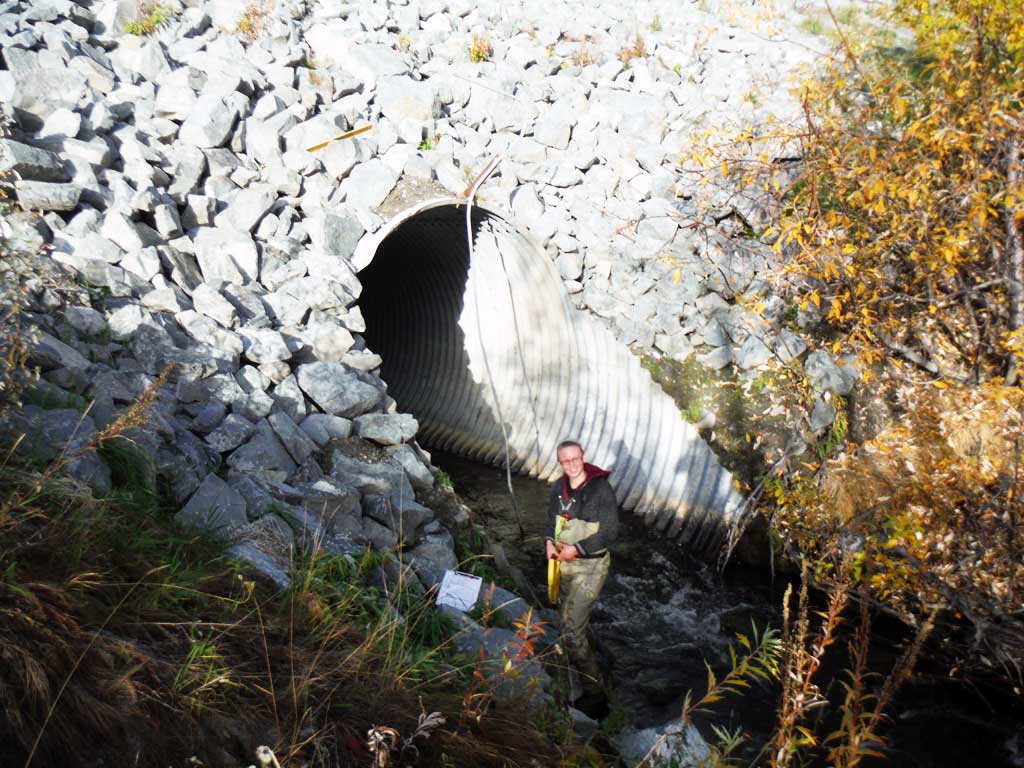

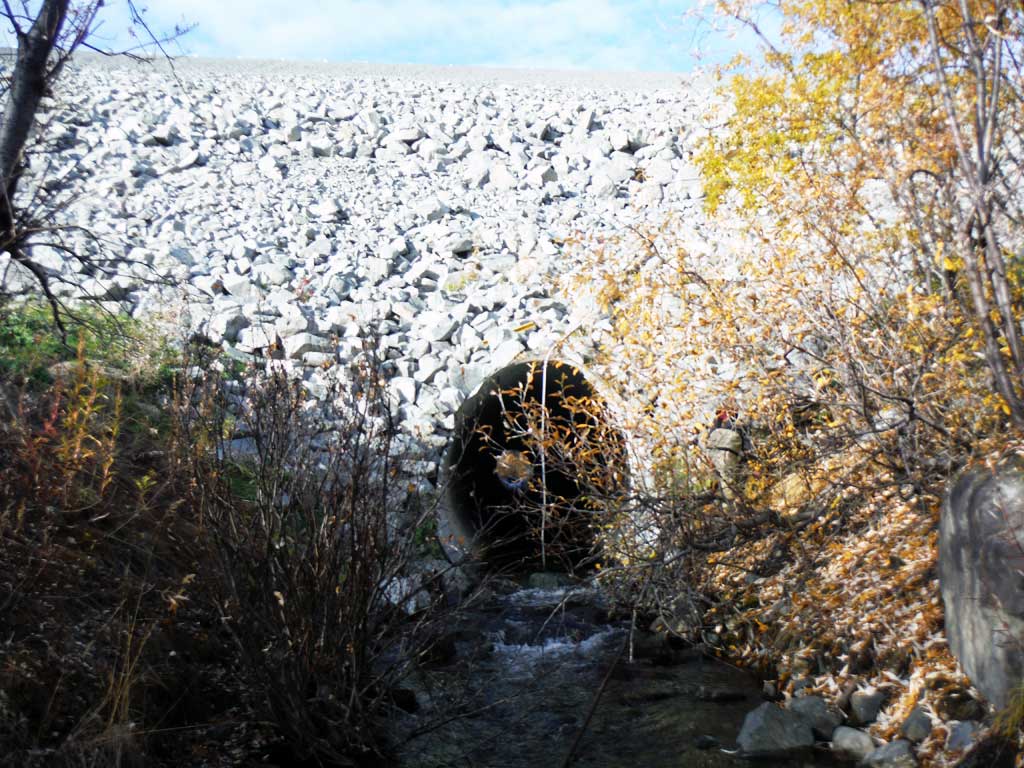

Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 4
Approach Angle: 10.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):9.02 9.02
Height(ft):9.47 11.04
Apron Length(ft):
Water Depth(ft): 0.85
Rustline Height(ft):1.1
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

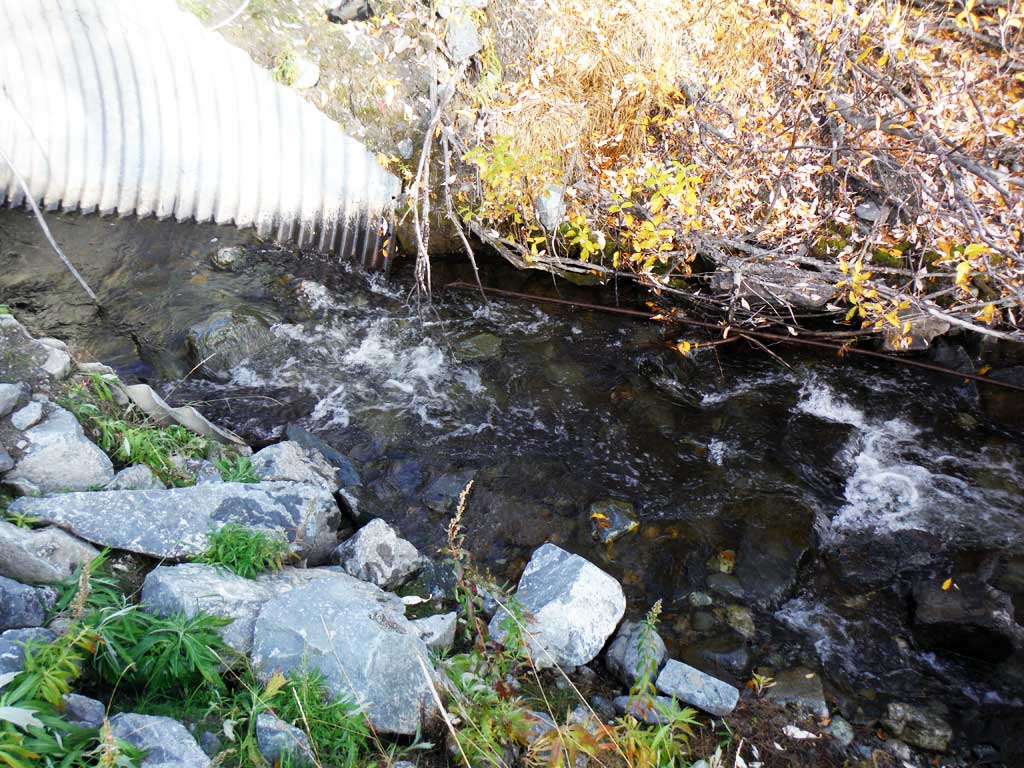

Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 2.65
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayCobble
Subdominant:GravelBoulder
Stream Slope(deg.):0.5
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)

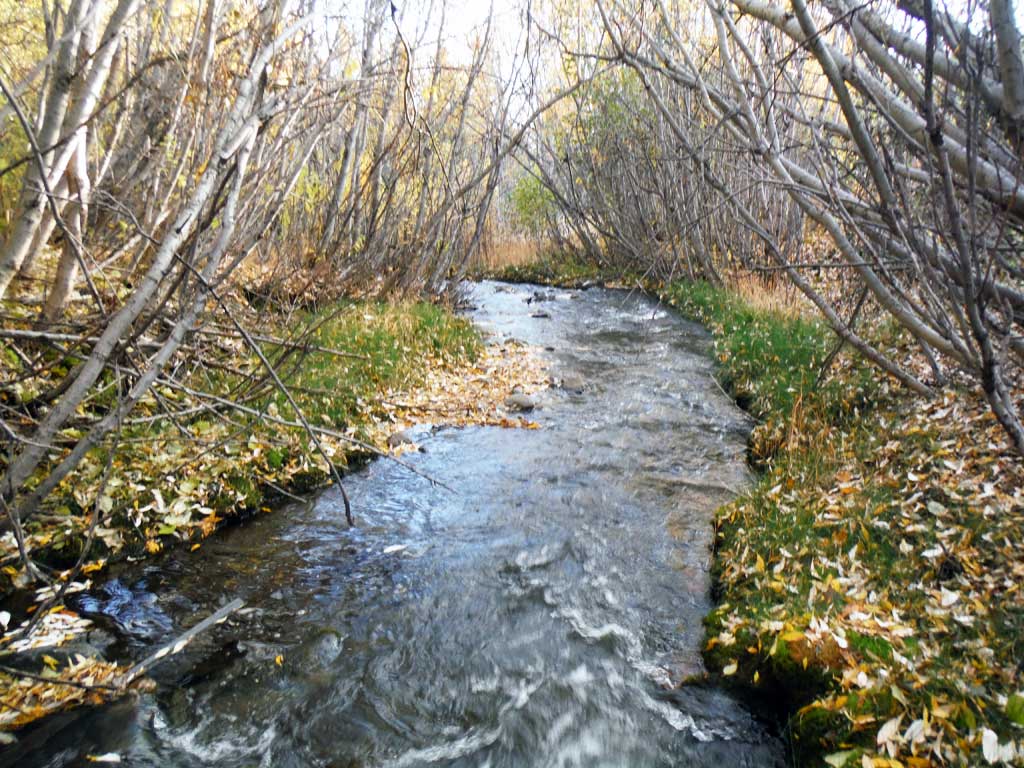

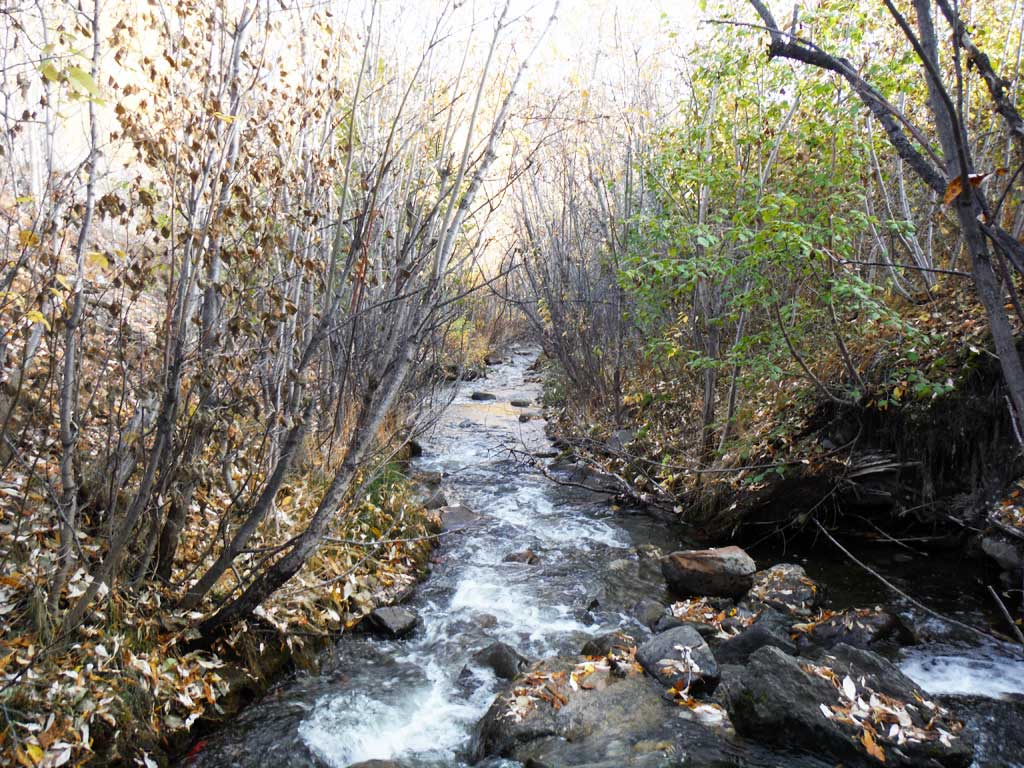

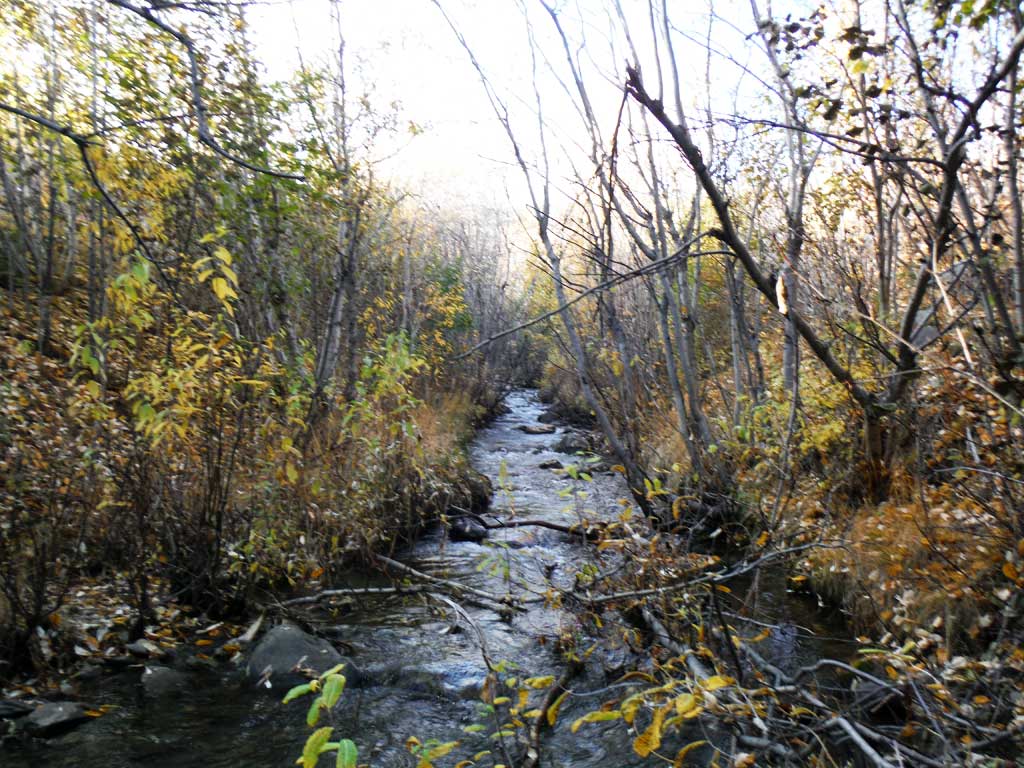

Downstream ordinary high water 9.20
Downstream ordinary high water 5.60
Downstream ordinary high water 8.80

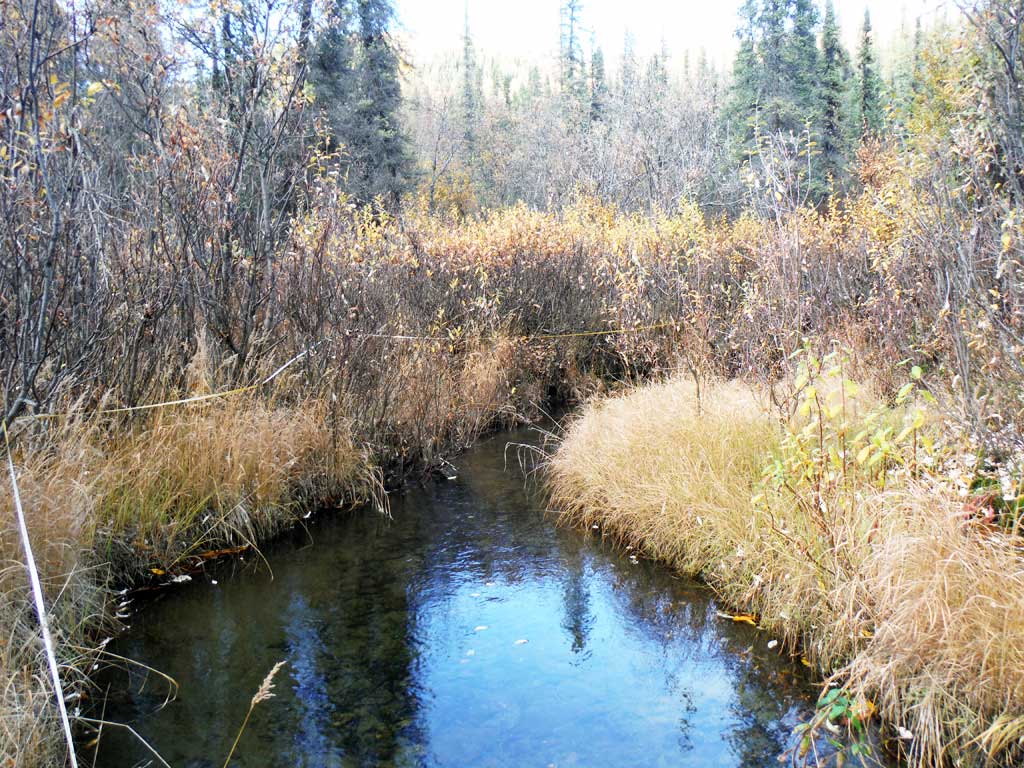

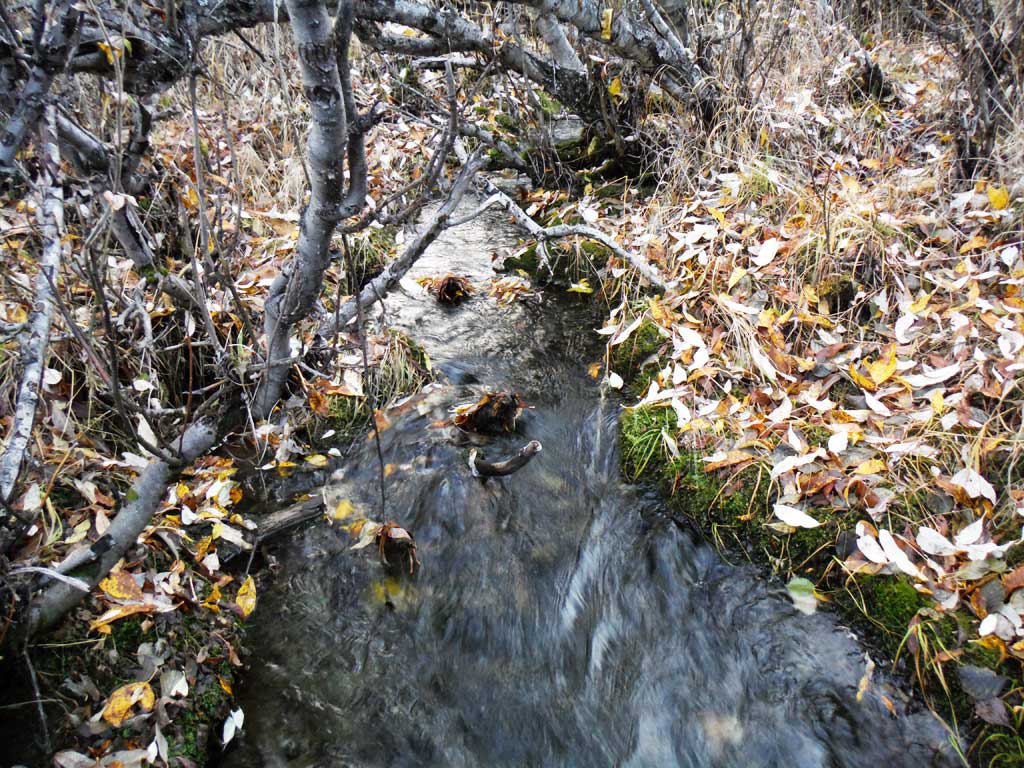

Upstream ordinary high water 3.10
Upstream ordinary high water 4.40
Upstream ordinary high water 2.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Grade Ctrl (Thalweg) 0.00 95.12
D/S Water Surface Elev 0.00 96.02
D/S Grade Ctrl (Thalweg) 39.00 96.49
D/S Water Surface Elev 39.00 97.49
D/S Tailcrest or 1st Thalweg 74.00 98.36
D/S Water Surface Elev 74.00 99.11
Outlet Pool Water Elev 79.00 99.15
Max Pool Depth 79.00 98.31
Outlet Culvert Top 83.40 109.44
D/S Water Surface Elev 83.40 99.25
Outlet Invert (Downstream survey not related to upstream section!!) 83.40 98.40
Inlet Culvert Top 322.00 105.59
U/S Water Surface Elev 322.00 96.96
Inlet Culvert Invert 322.00 96.12
U/S Water Surface Elev 336.00 97.38
U/S Grade Ctrl (Thalweg) 336.00 96.53
U/S Grade Ctrl (Thalweg) 363.00 96.54
U/S Water Surface Elev 363.00 97.53
U/S Water Surface Elev 398.00 97.57
U/S Grade Ctrl (Thalweg) (Upstream survey not related to downstream survey!) 398.00 95.85

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 18.0
Comments: 2 traps set upstream, no fish caught or observed.

Gear Type: Minnow Trap (B) Trap Duration(h): 18.0
Comments: 2 traps set downstream. No fish caught or observed.

Fish Observations

No fish observations occurred during this survey.
