Fish Passage Site 20100572

Coordinates (dec. deg.): 62.10951°, -145.55861°
Legal Description: C004N002W22
Region: South Central
Road Name: Glenn Highway

Datum: NAD83
Quad Name / ITM: Gulkana A-4
AWC Stream #:
Stream Name: Moose Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRWP17-Glen2

Observers: Kirsti Jurica, Hoots Witsoe

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio gray

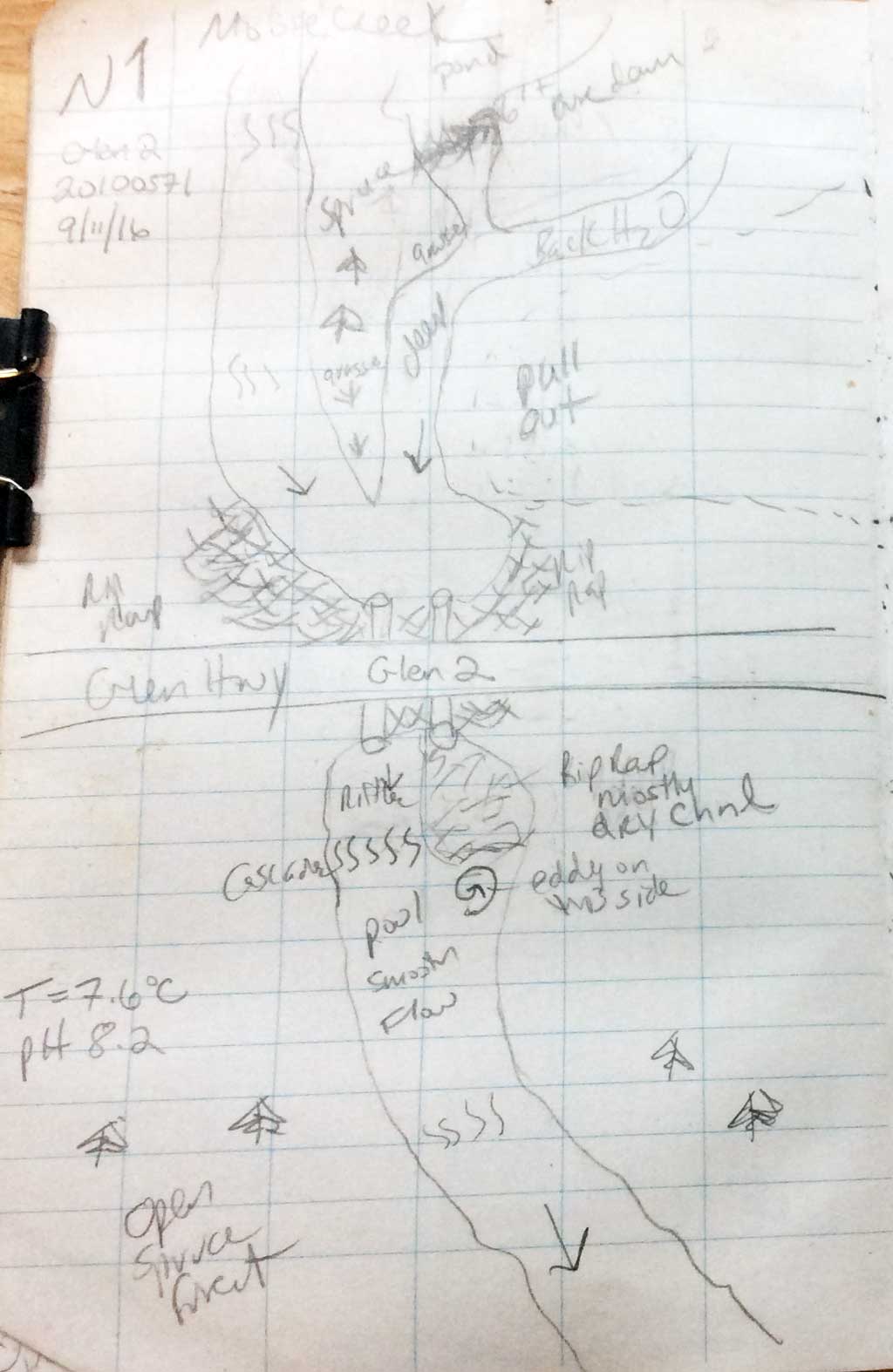

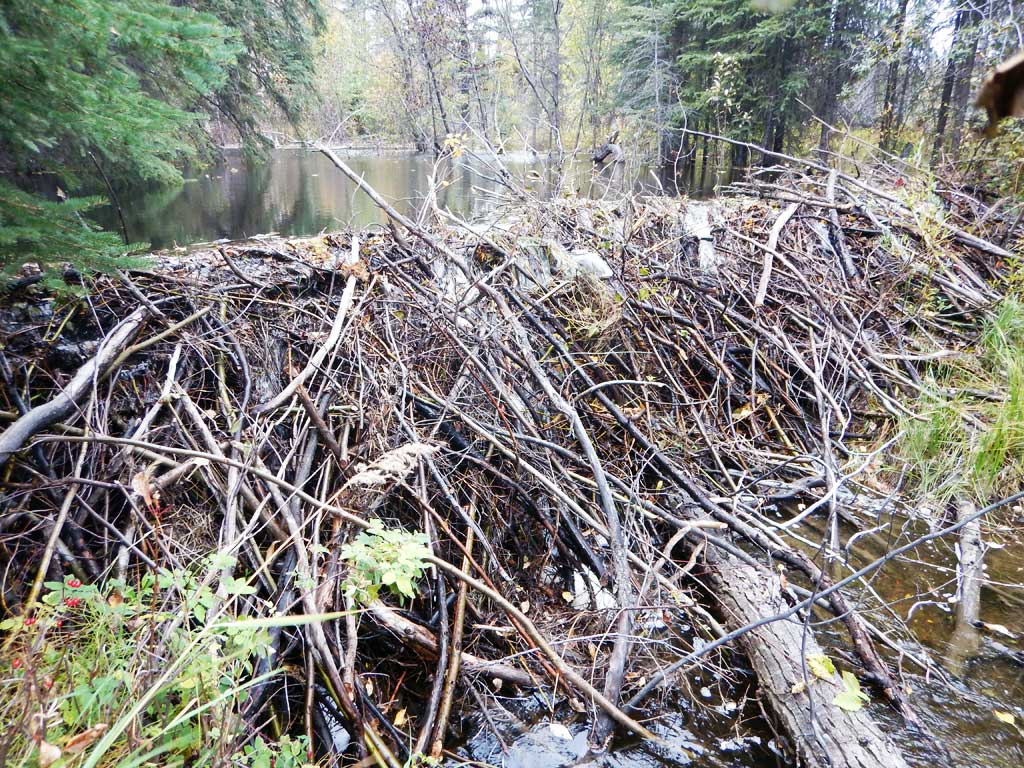

  2. Beaver Activity
  3. Culvert is poorly aligned

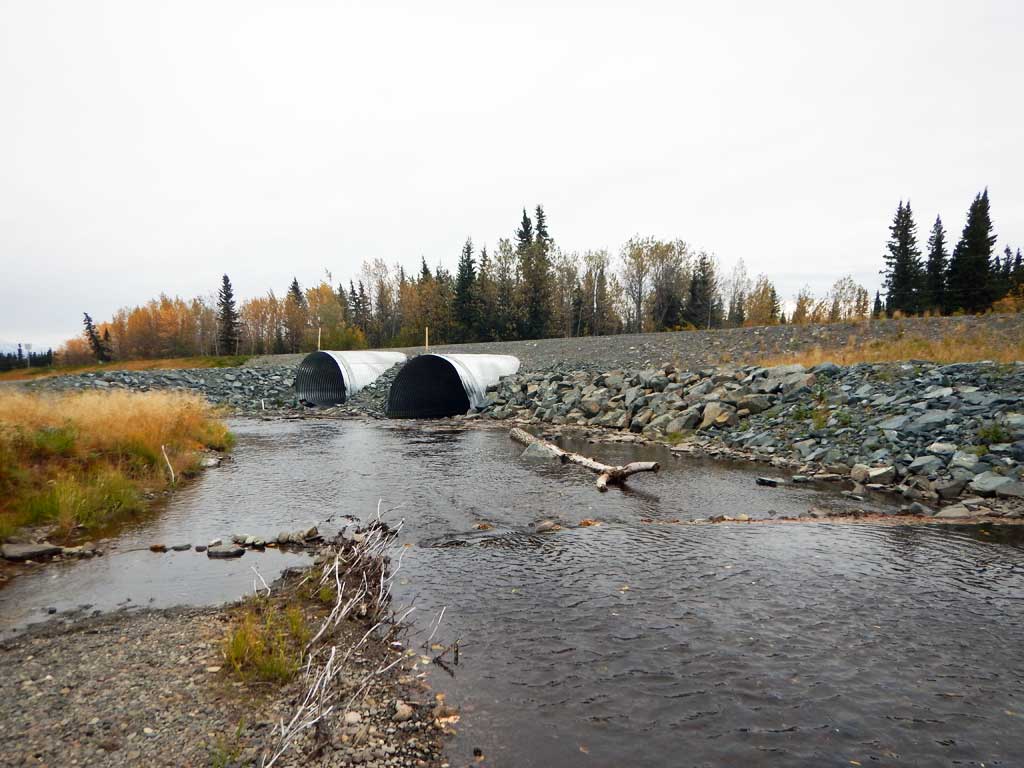

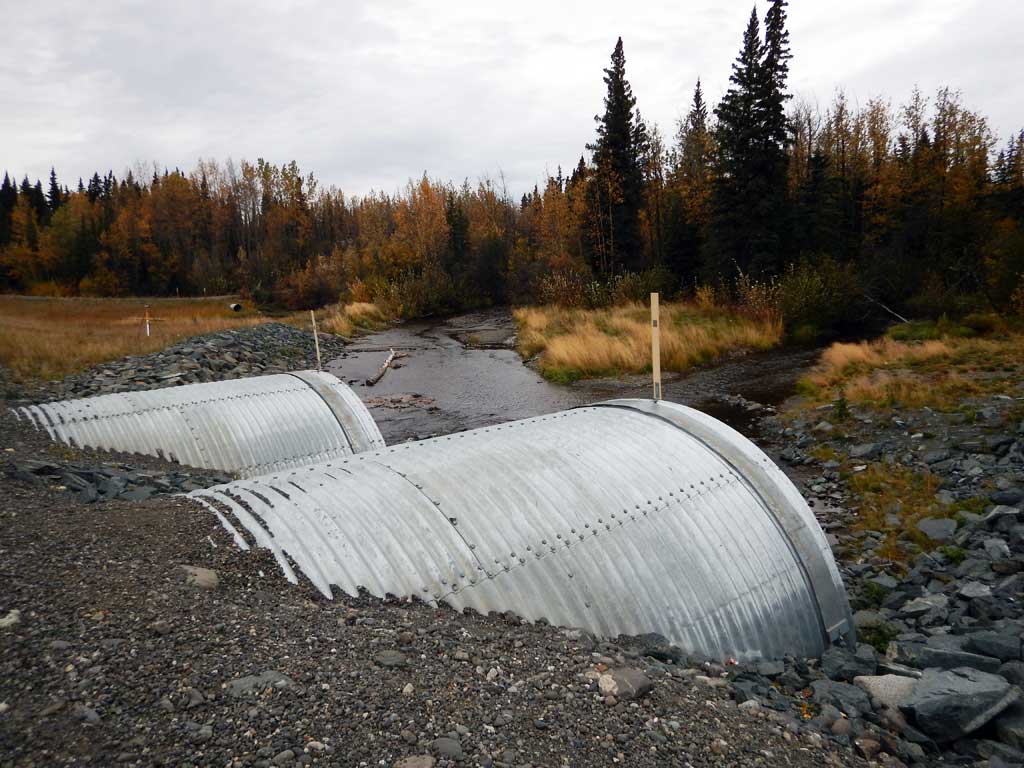

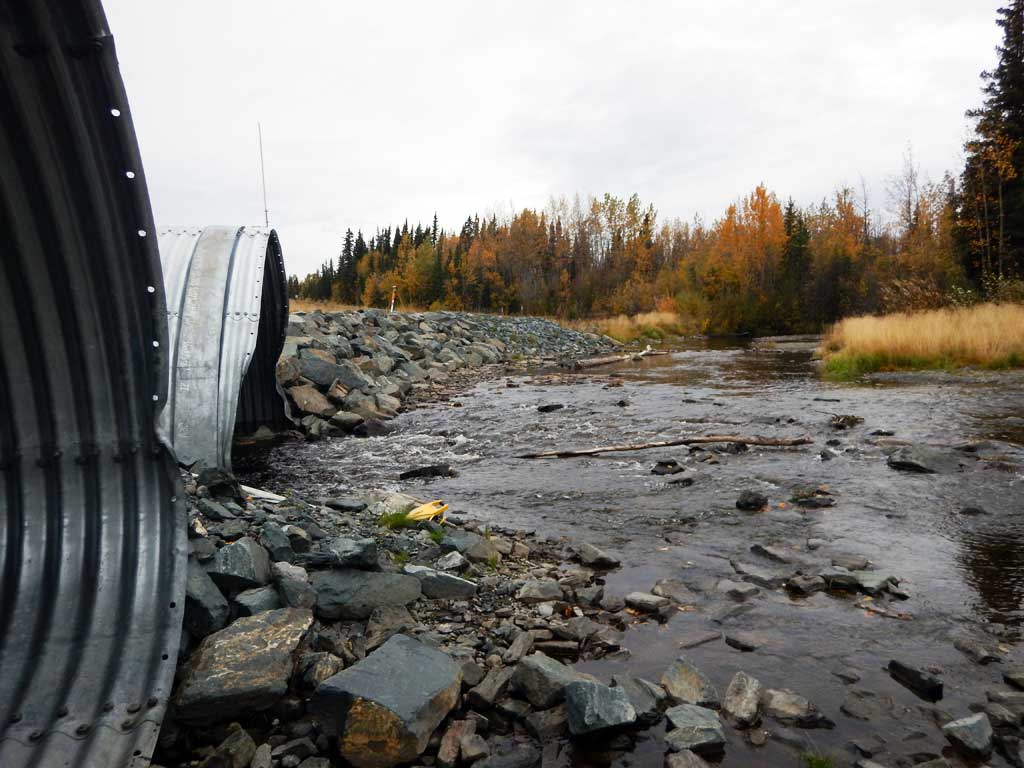

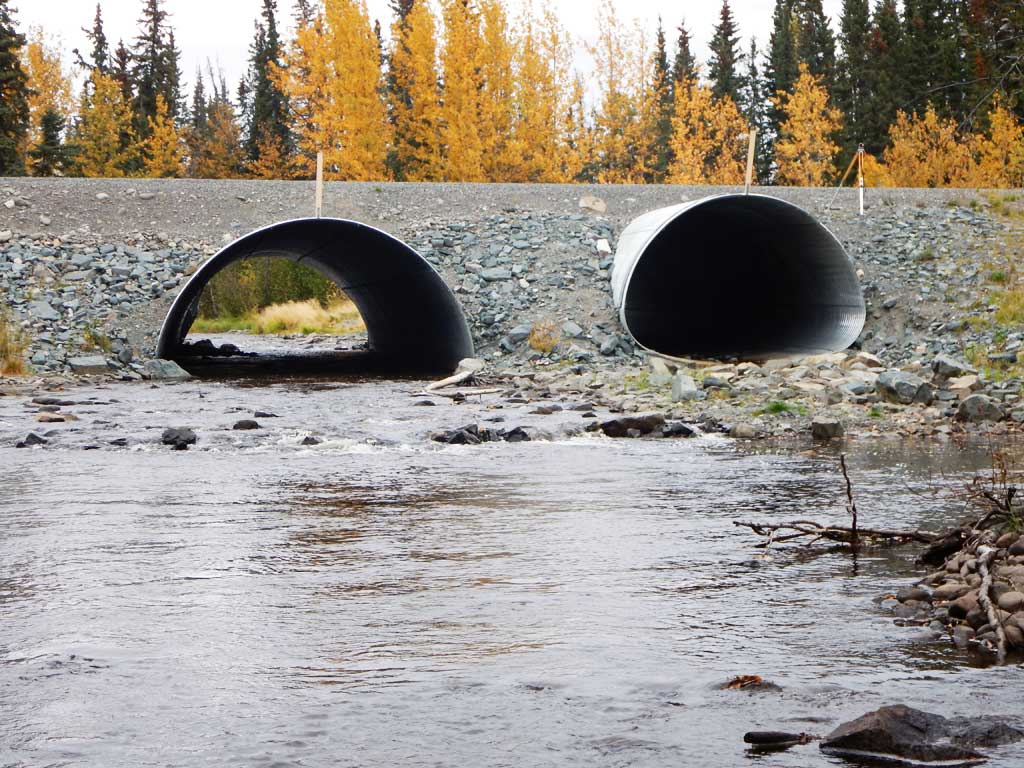

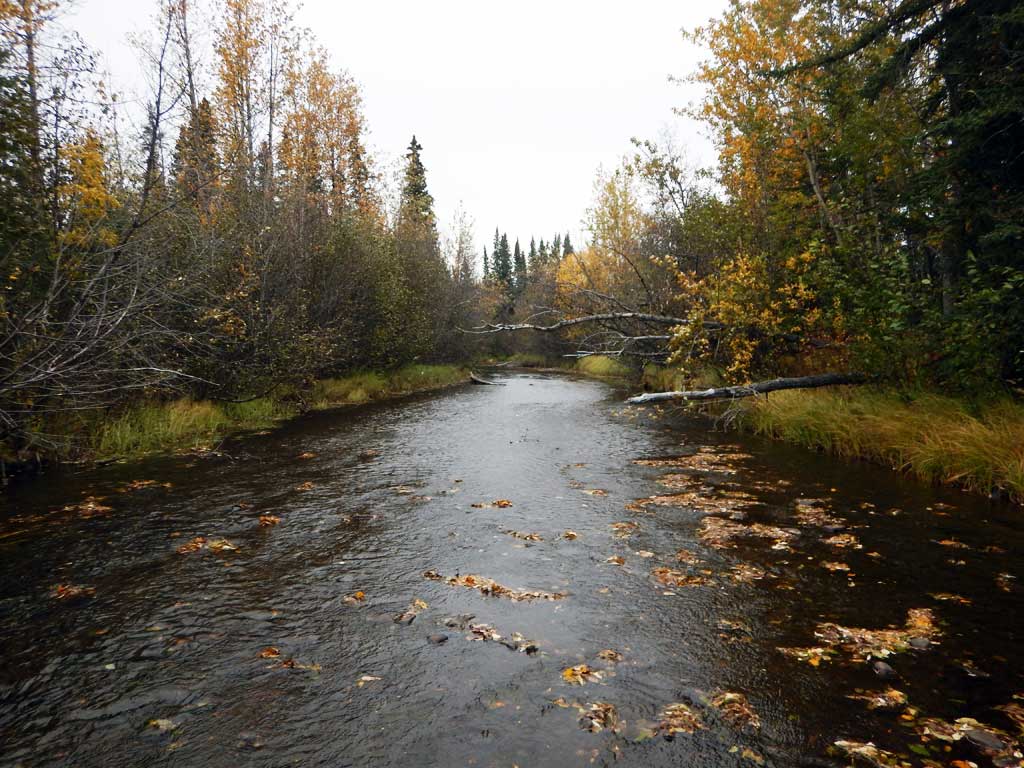

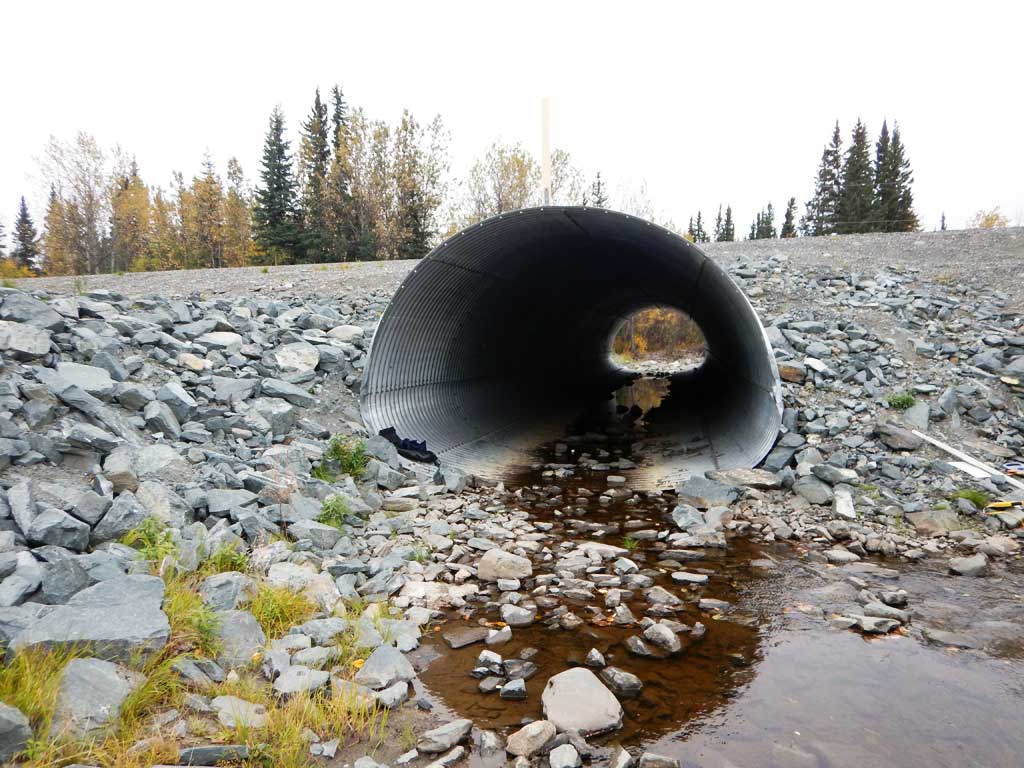

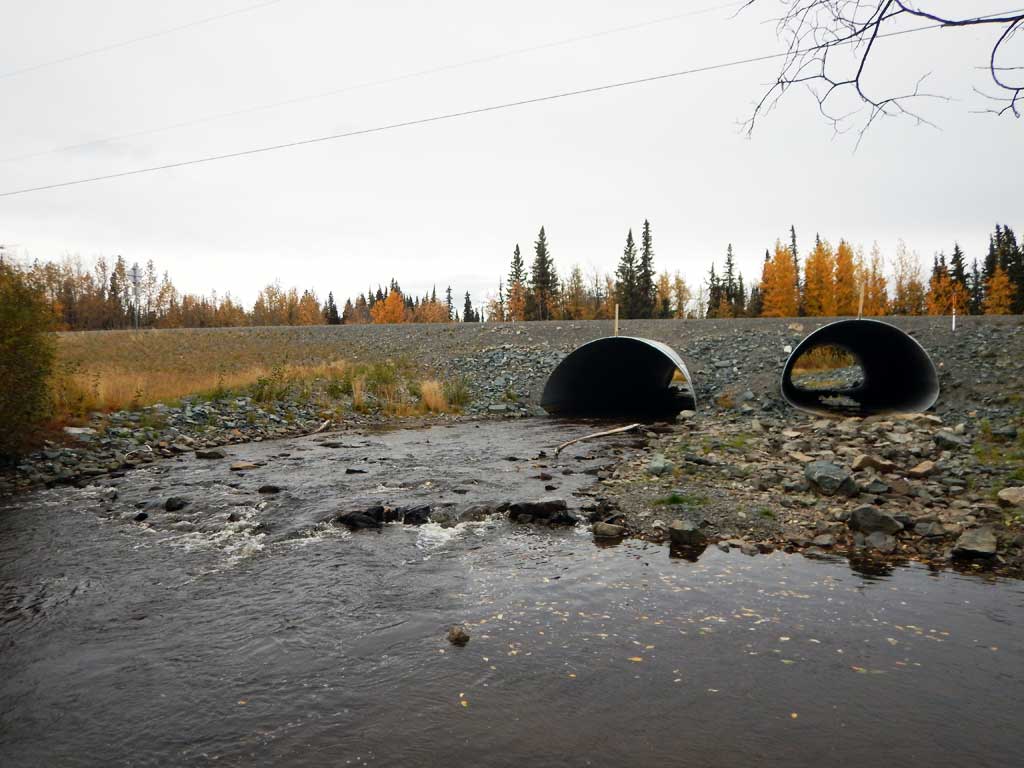

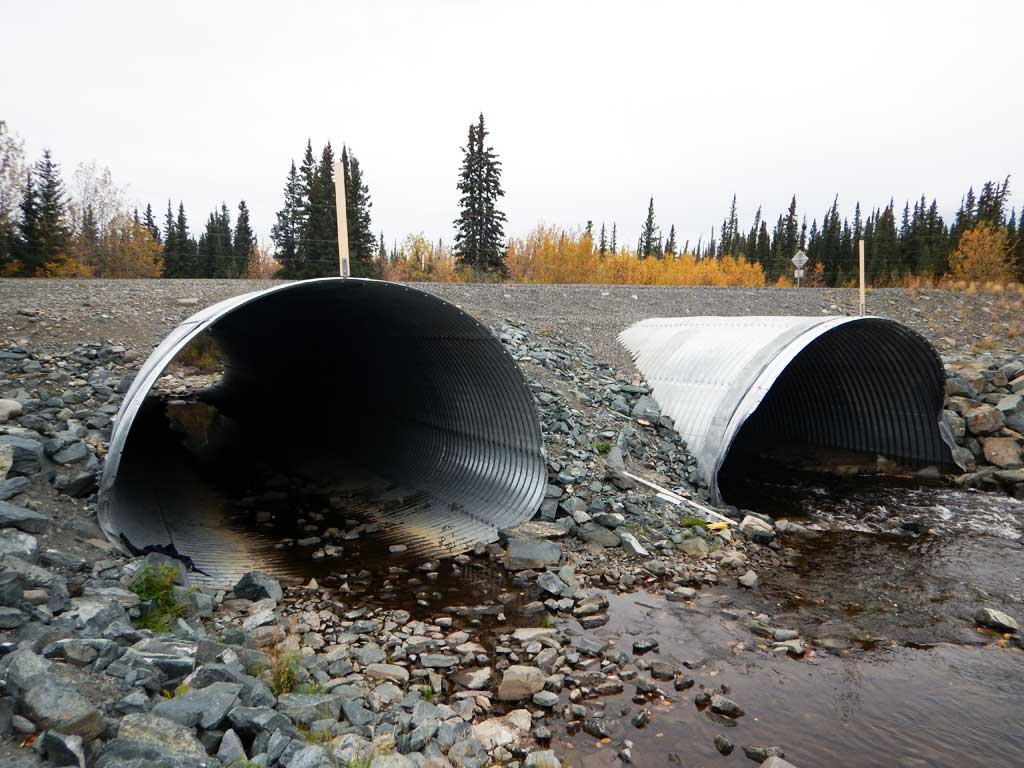

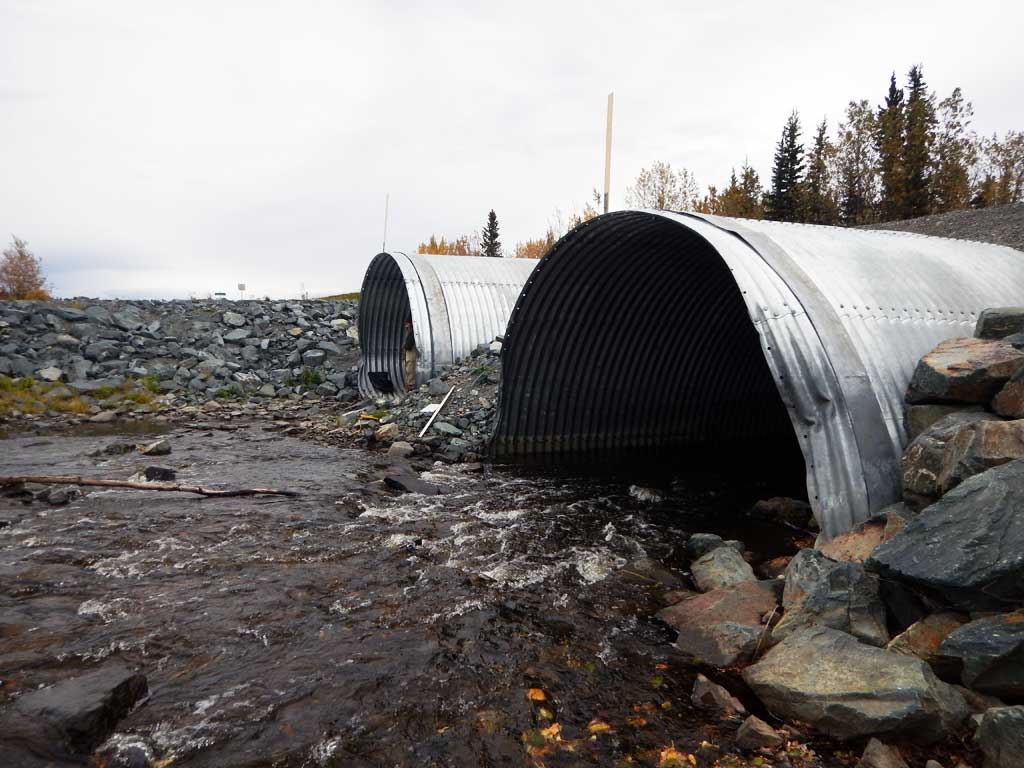

Comments: Culvert assessment performed and submitted by the Copper River Watershed Project. Majority of water flows through pipe 2. Inlet damage to pipe 2 due to poor alignment with upstream channel. Pipe 1 placed higher than Pipe 2 for flood control. Multiple channels upstream from culvert.

Culvert Measurements

ID: 1 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 100.4
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 5.0
Condition Rating(1-5): 4
Approach Angle: 50.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):16.2 16.0
Height(ft):10.69 11.06
Apron Length(ft):
Water Depth(ft): 0.06
Rustline Height(ft):0.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.98
Outfall Type: Overflow Pipe
Constriction Ratio:
Culvert Gradient: 0.76%
Max Slope:
Max Slope Length:

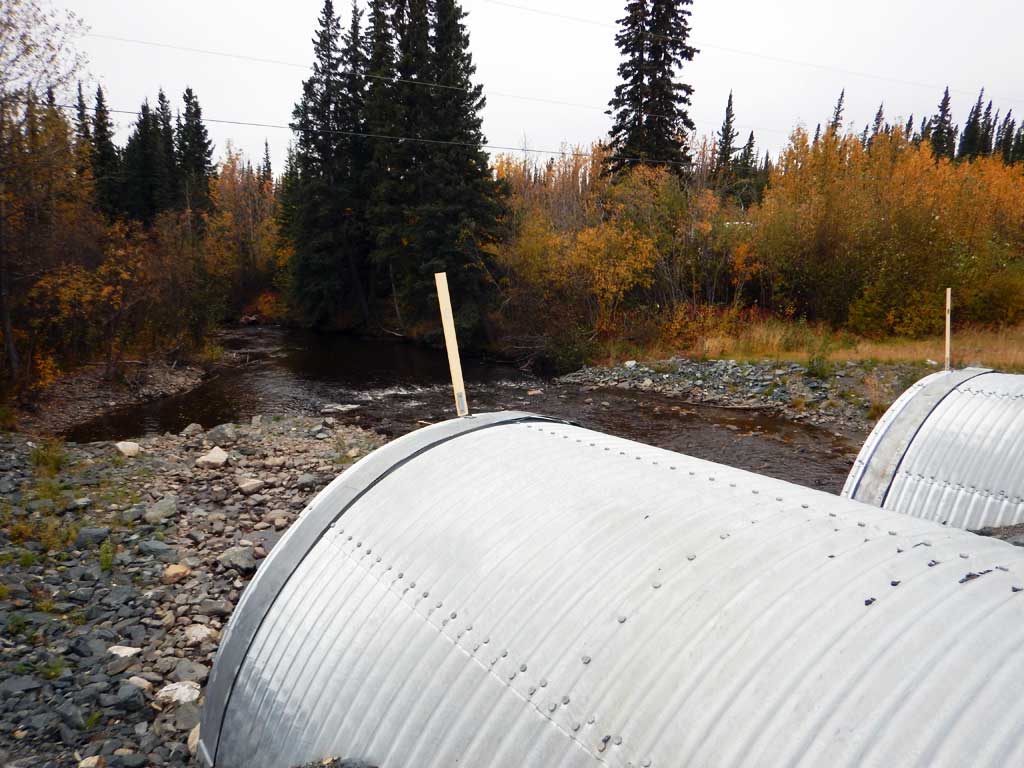

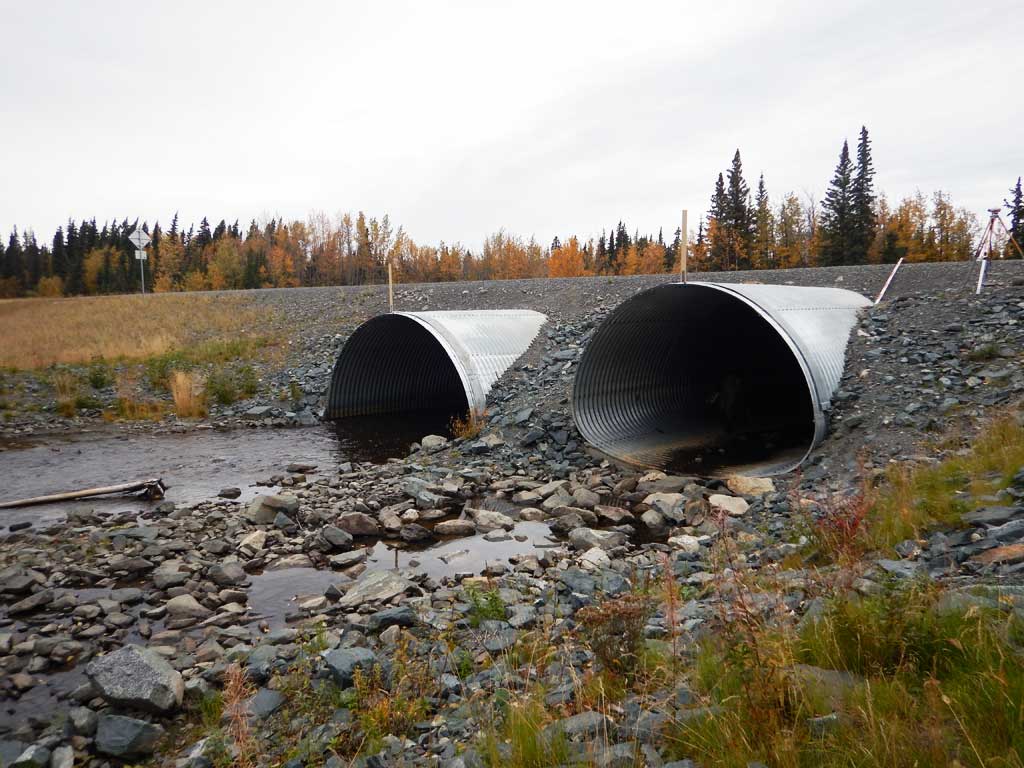

Comments: Culvert set about 1.5 higher than C2.
  Culvert Observations:
  1. Outfall height red
  2. Constriction ratio gray
ID: 2 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 100.1
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 5.0
Condition Rating(1-5): 4
Approach Angle: 50.0
Sedimentation At Inlet: Yes
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):20.1 20.0
Height(ft):10.93 10.82
Apron Length(ft):
Water Depth(ft): 0.88
Rustline Height(ft):1.9
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: Maybe
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.57
Culvert Gradient: 0.63%
Max Slope:
Max Slope Length:

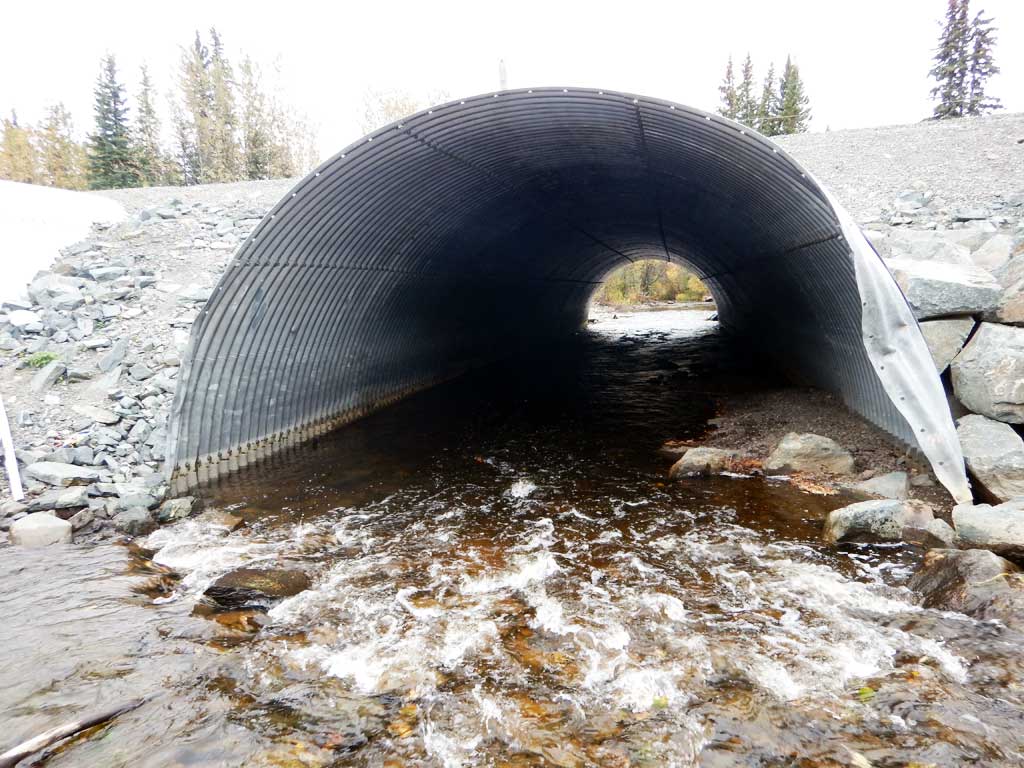

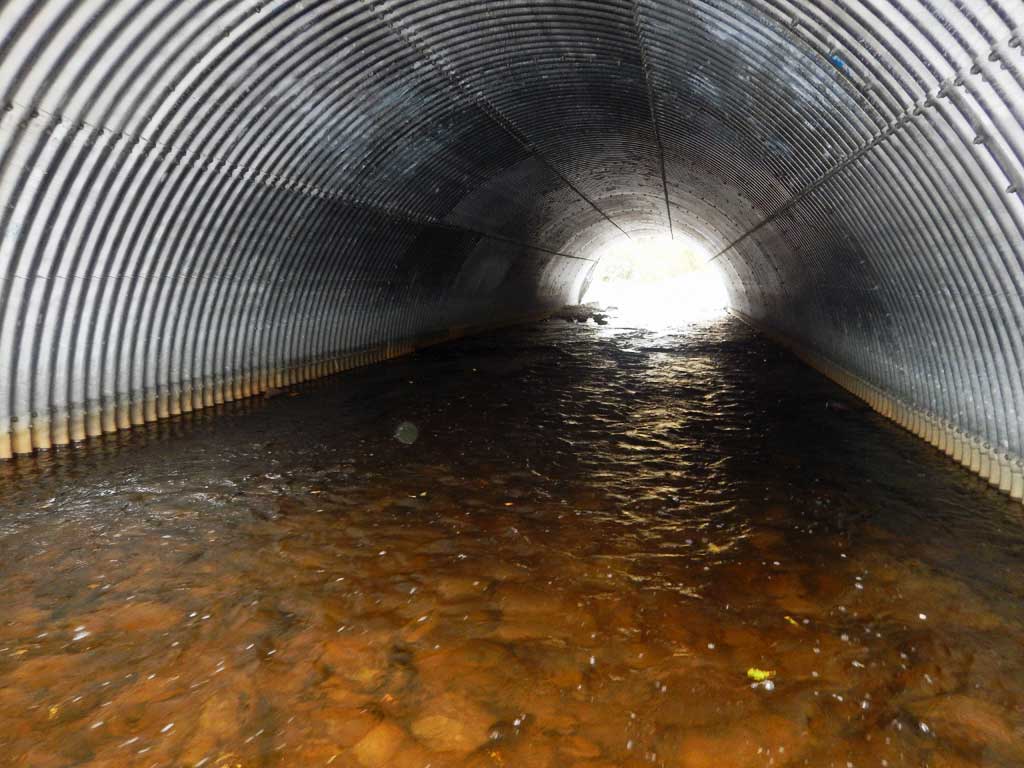

Comments: All flow through this culvert at lower flows. C1 set about 1.5 higher. Substrate depths could not be measured do to swift flows through culvert and water depth. Culvert gradient calculated using top of pipe elevations.
  Culvert Observations:
  1. Constriction ratio gray
  2. Beaver Activity
  3. Culvert is poorly aligned

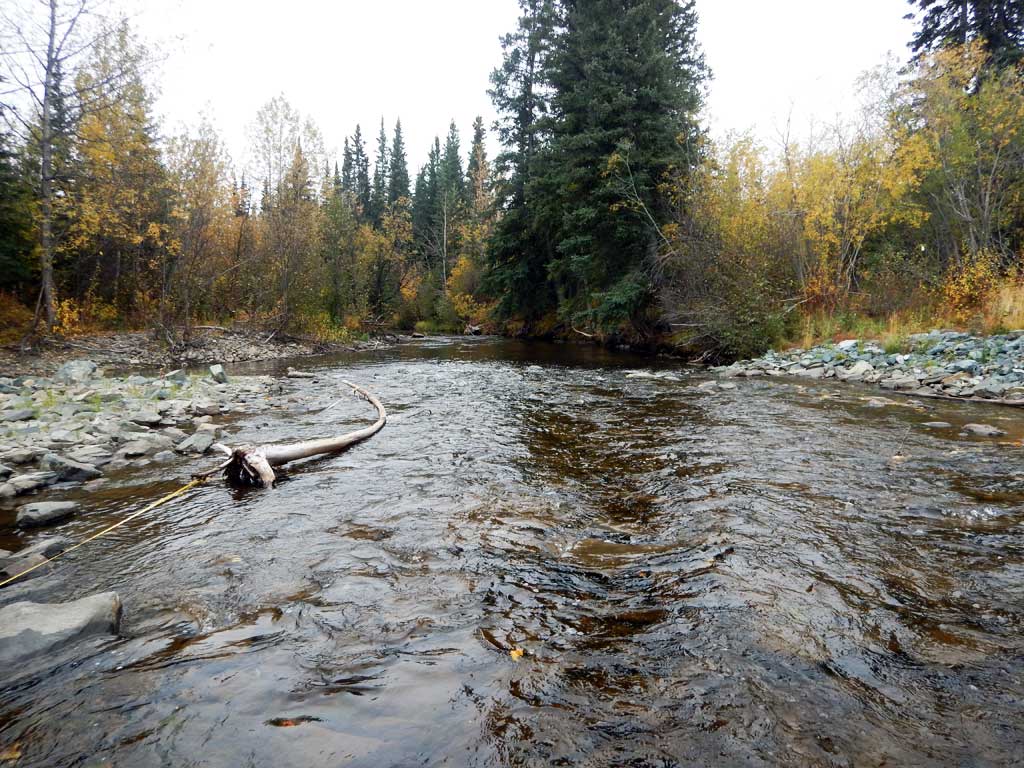

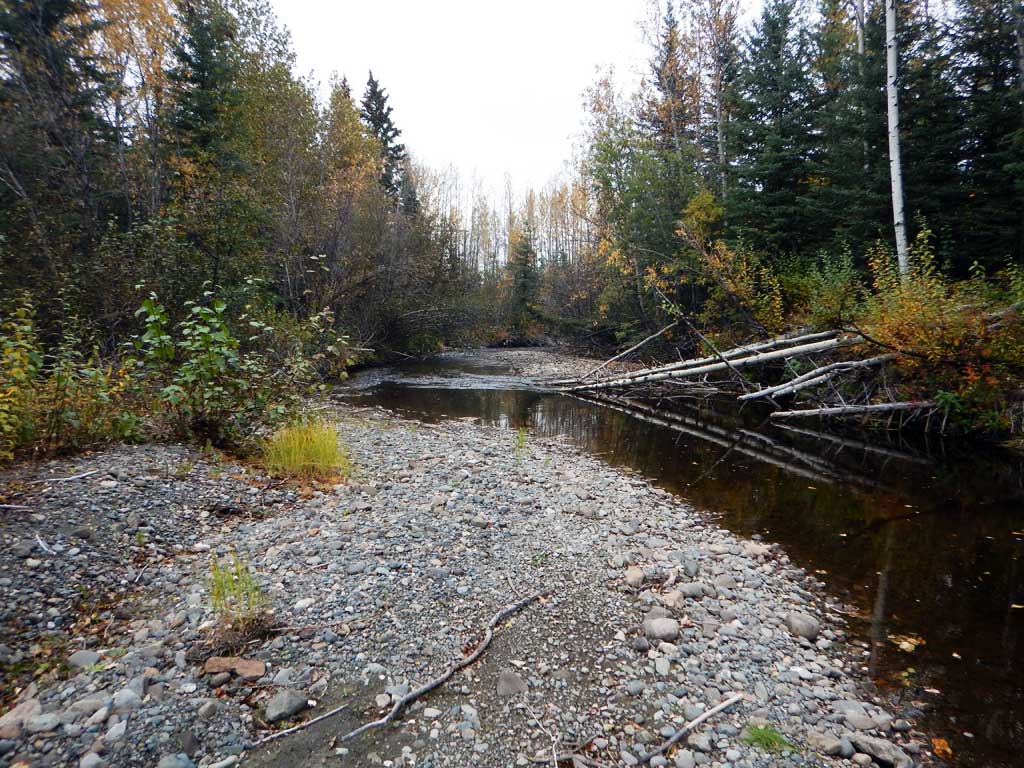

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):1
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 30.60
Downstream ordinary high water 34.10
Downstream ordinary high water 40.80

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 102.22
D/S Water Surface Elev 0.00 86.19
D/S Grade Ctrl (Thalweg) 0.00 83.67
Max Pool Depth (2nd outlet pool) 108.00 85.21
D/S Water Surface Elev 108.00 86.76
Max Pool Depth 148.00 86.91
Outlet Pool Water Elev 148.00 87.62
Outlet Invert (on substrate) 2 190.00 87.16
D/S Water Surface Elev 2 190.00 88.04
Outlet Invert 1 190.00 88.54
D/S Water Surface Elev 1 190.00 88.60
Outlet Culvert Top 2 190.00 97.98
Outlet Culvert Top 1 190.00 99.60
Inlet Culvert Top 1 290.00 100.00
Inlet Culvert Top 2 290.00 98.61
U/S Water Surface Elev 2 290.00 88.71
Inlet Culvert Invert 1 290.00 89.31
U/S Water Surface Elev 1 290.00 89.38
Inlet Culvert Invert (on substrate) 2 290.00 87.68
U/S Water Surface Elev 329.00 89.81
U/S Grade Ctrl (Thalweg) 329.00 89.16
U/S Grade Ctrl (Thalweg) (upstream gradepoint in left channel (facing downstream)) 386.00 89.44
U/S Water Surface Elev 386.00 90.11
U/S Water Surface Elev 520.00 90.36
U/S Grade Ctrl (Thalweg) 520.00 89.91
U/S Grade Ctrl (Thalweg) 730.00 92.14
U/S Water Surface Elev 730.00 92.64

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 20.0
Comments: Soak Duration 20 hours for traps, placement not recorded.

Gear Type: Minnow Trap (B) Trap Duration(h): 20.0

Gear Type: Minnow Trap (C) Trap Duration(h): 20.0
Comments: No fish caught or observed.

Gear Type: Minnow Trap (D) Trap Duration(h): 20.0

Gear Type: Minnow Trap (E) Trap Duration(h): 20.0

Gear Type: Minnow Trap (F) Trap Duration(h): 20.0

Gear Type: Minnow Trap (G) Trap Duration(h): 20.0

Gear Type: Minnow Trap (H) Trap Duration(h): 20.0
Comments: No Fish caught or observed

Gear Type: Minnow Trap (I) Trap Duration(h): 20.0

Gear Type: Minnow Trap (J) Trap Duration(h): 20.0

Fish Observations

Species: juvenile rainbow trout Life History: Unknown
Total Fish Observed: 17 Fish Measured: 9 Fork Lengths (mm) Min: 20 Max: 65 Mean: 54
Collected/Observed by Gear Type: Not Recorded Minnow Trap (2)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (2)  Not Recorded Minnow Trap (8)  Not Recorded Minnow Trap (2)

Species: juvenile longnose sucker Life History: Resident
Total Fish Observed: 2 Fish Measured: 2 Fork Lengths (mm) Min: 120 Max: 155 Mean: 137
Collected/Observed by Gear Type: Not Recorded Minnow Trap (2)
