Fish Passage Site 20100494

Coordinates (dec. deg.): 60.45986°, -145.28447°
Legal Description: C016S001E30
Region: South Central
Road Name: Copper River Highway

Datum: NAD83
Quad Name / ITM: Cordova B-4
AWC Stream #: 212-10-10010-2041-3010-4012
Stream Name: 18 Mile Creek

Elevation:

Site Comments: Haystack Pond upstream

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRWP17-Cop28

Observers: Kirsti Jurica, Hoots Witsoe

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert is poorly aligned

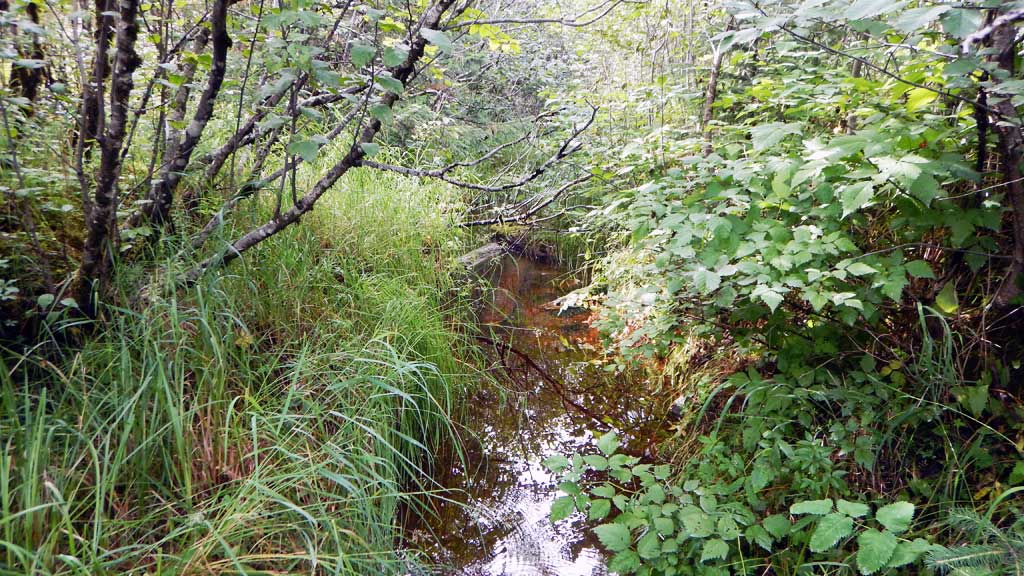

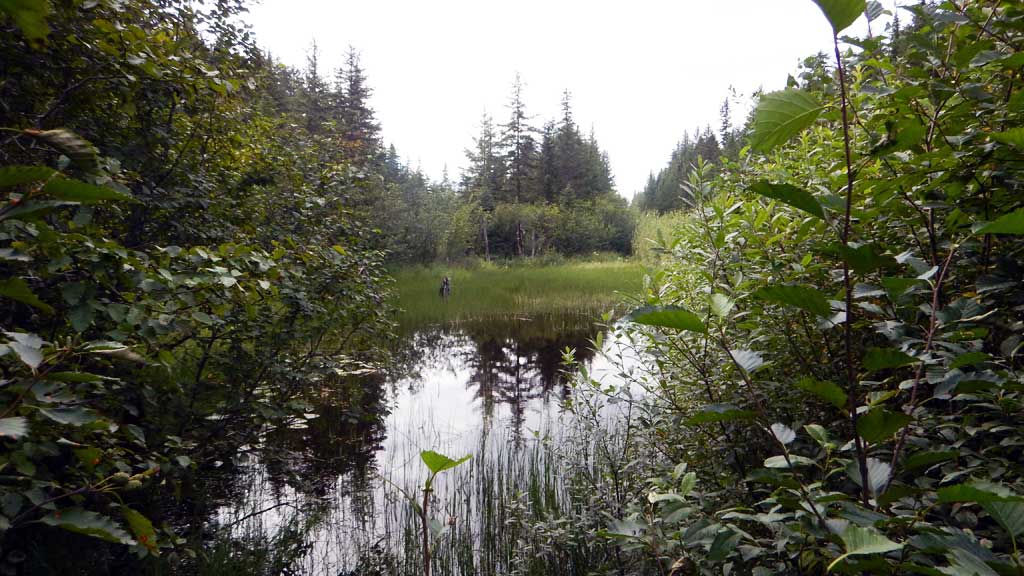

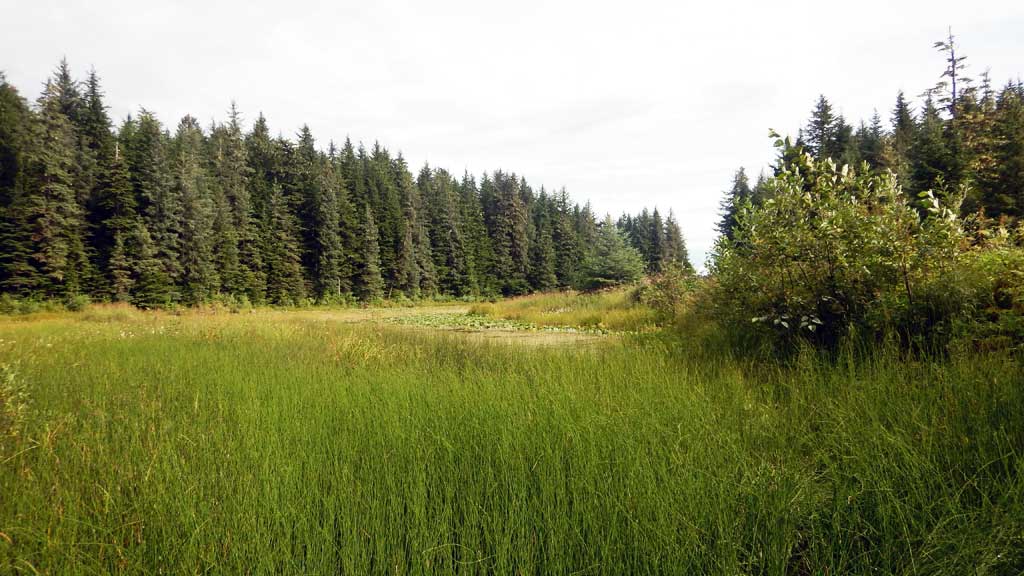

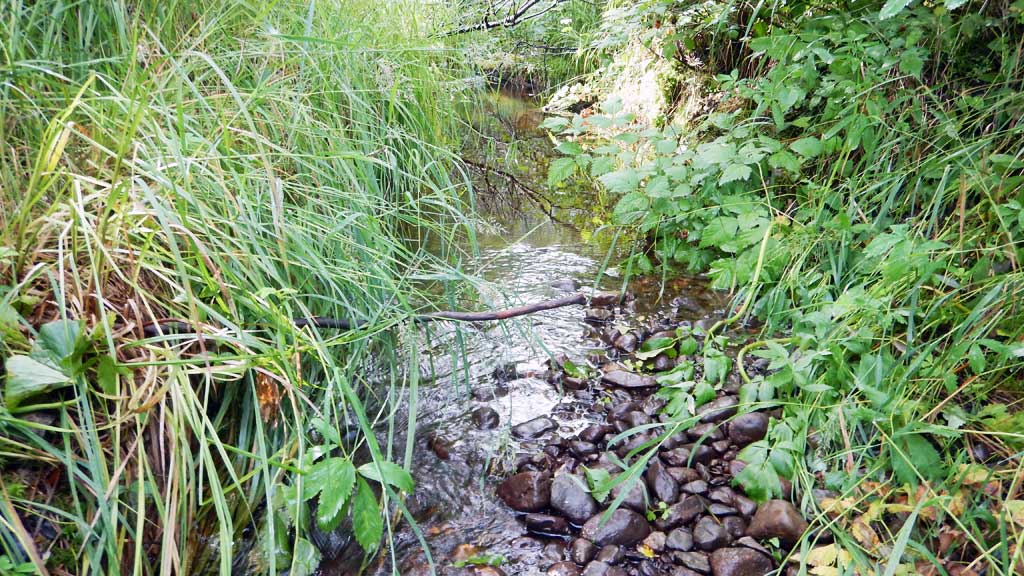

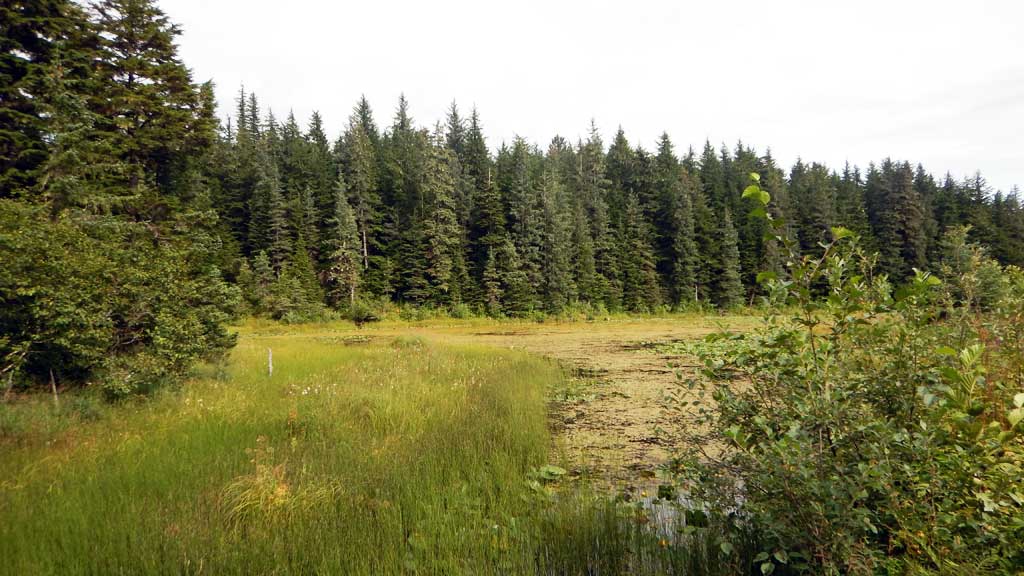

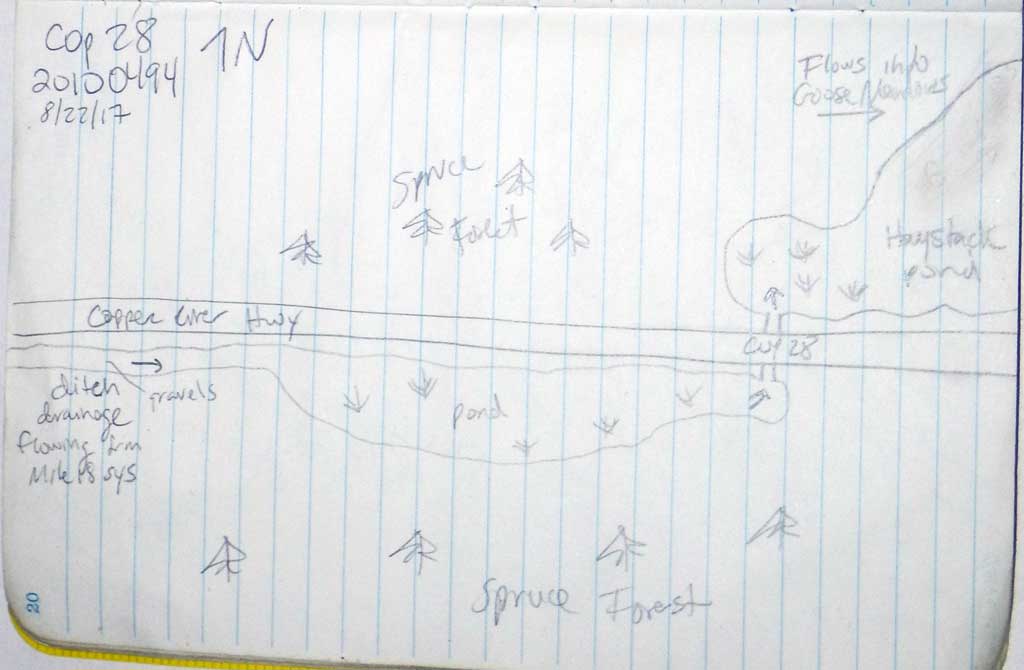

Comments: Culvert assessment performed and submitted by the Copper River Watershed Project. Ponds upstream and downstream of culvert. Upstream a small channel parallels the highway on the southside of the east fork of 18 Mile Creek and flows into the upstream pond. The channel acts as a ditch drainage capturing hillside streams in between. Adult Coho use channel for spawning. Numerous juvenile Coho upstream and downstream of ponds.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 46.6

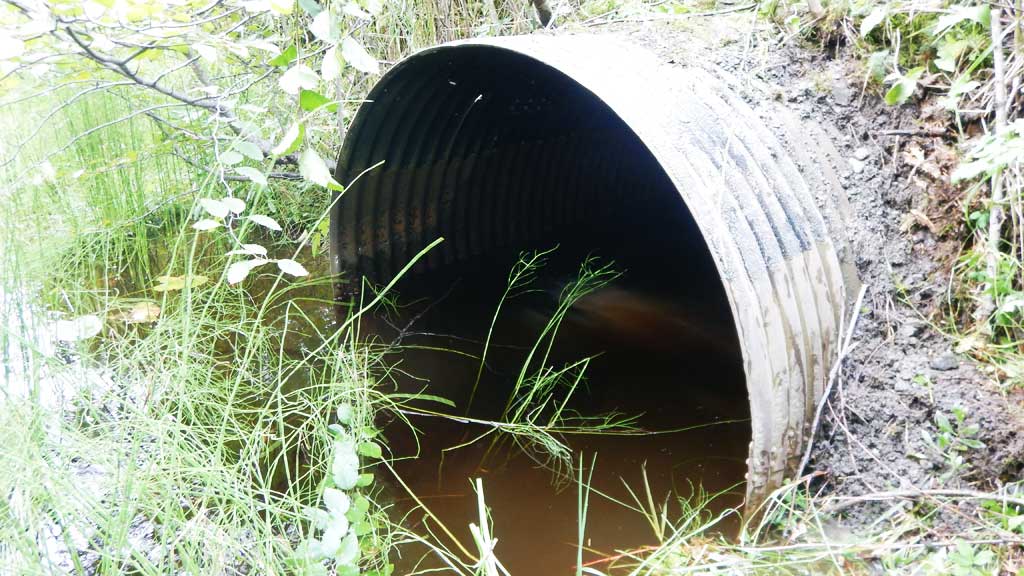

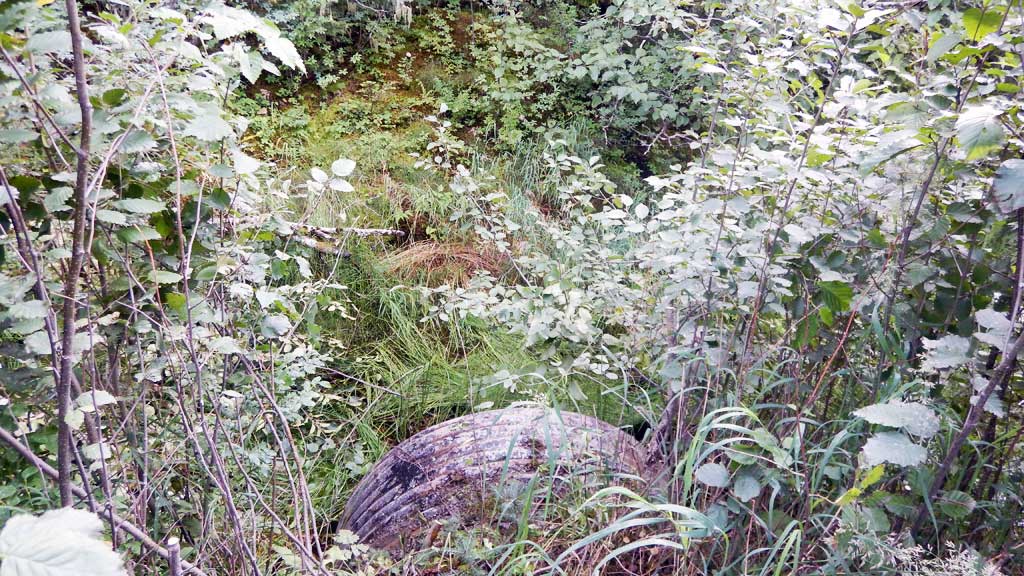

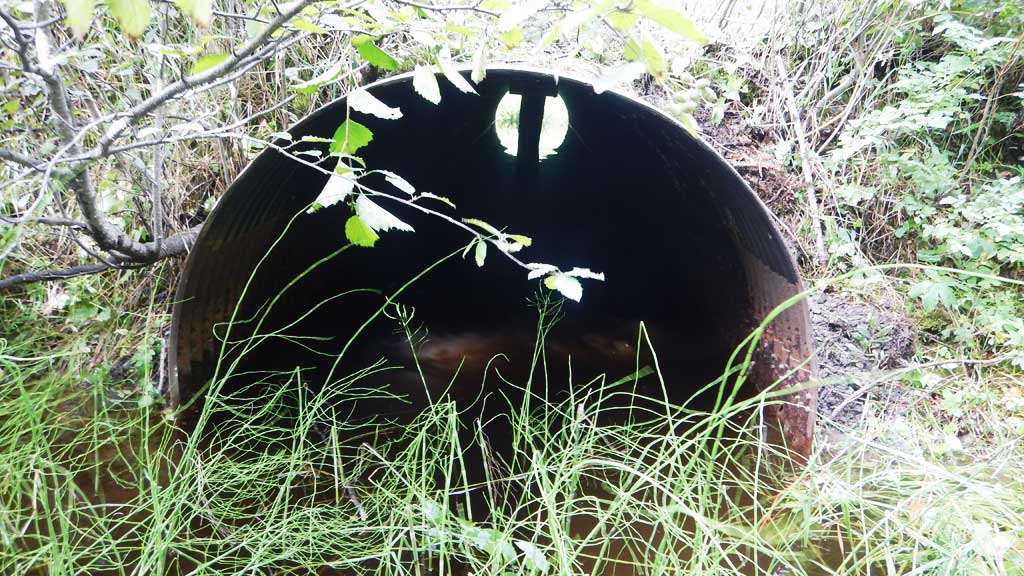

Inlet Type: Projecting

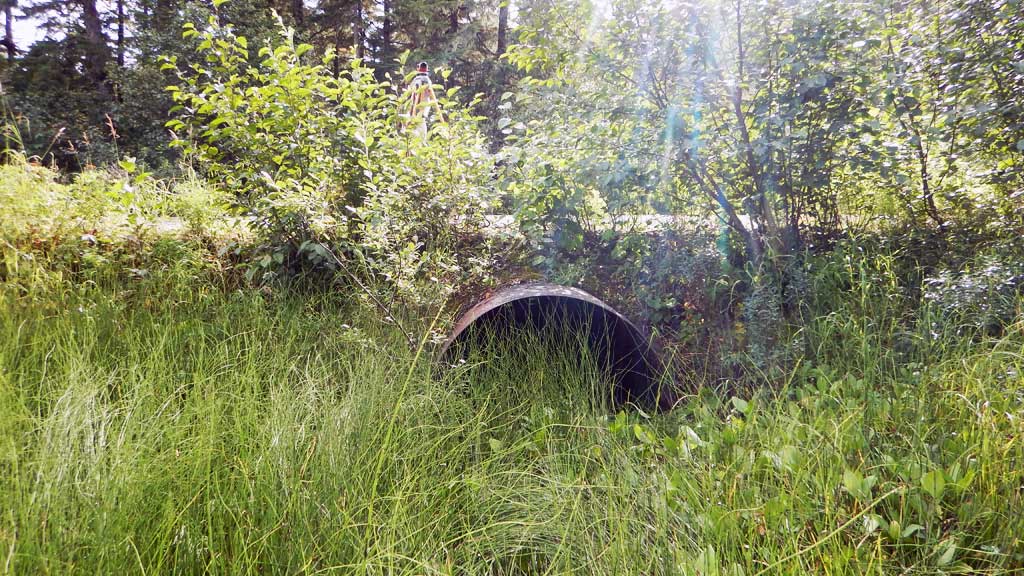

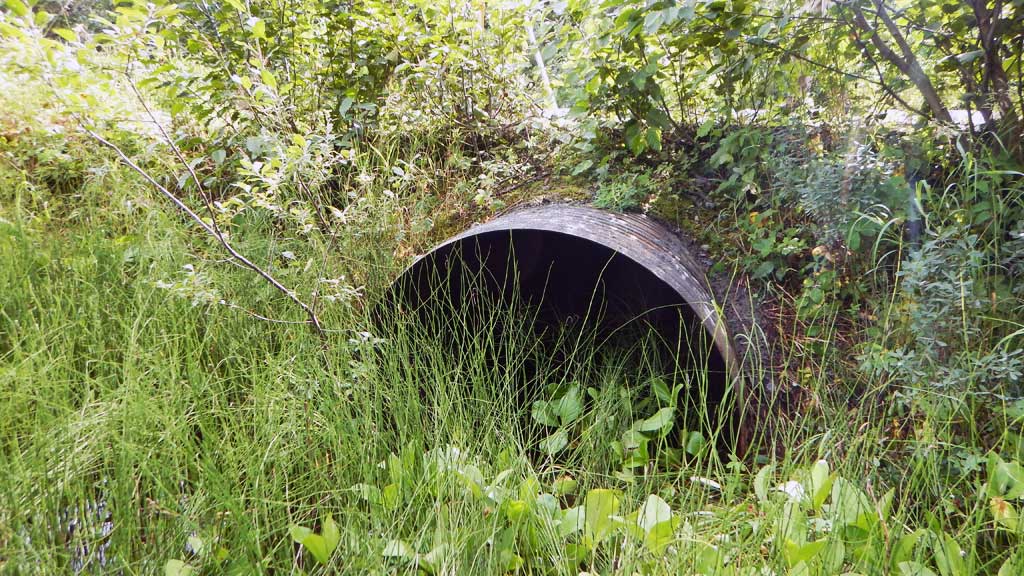

Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 80.0
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.0 5.0
Height(ft):4.69 4.61
Apron Length(ft):
Water Depth(ft): 2.02
Rustline Height(ft):2.3
Substrate Depth(ft):0.25 0.3
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.1
Culvert Gradient: 0.40%
Max Slope:
Max Slope Length:

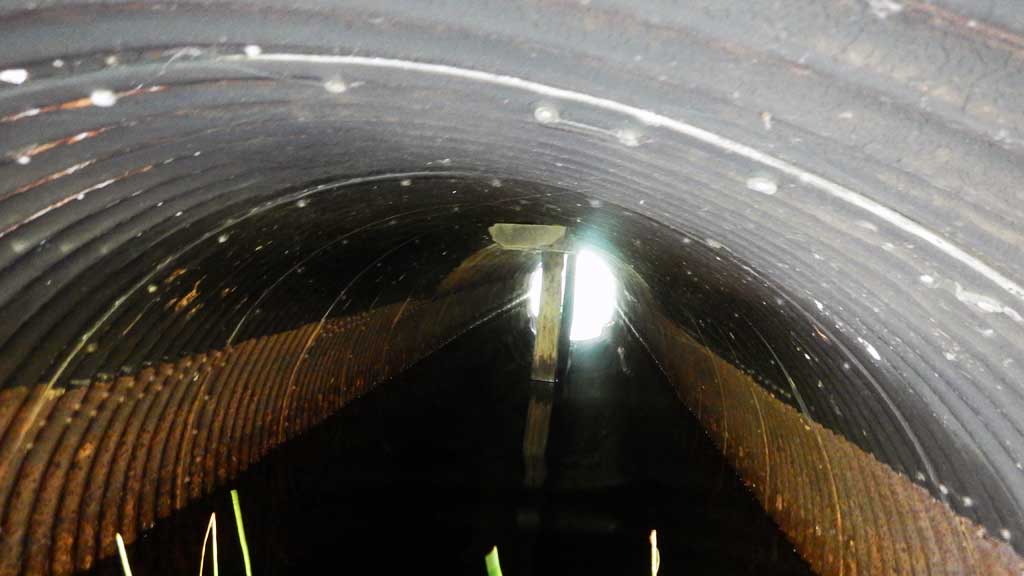

Comments: Timber supports in center of culvert.
  Culvert Observations:
  1. Culvert is poorly aligned

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelOrganic
Subdominant:CobbleSilt/Clay
Stream Slope(deg.):1
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 4.20
Upstream ordinary high water 4.90
Upstream ordinary high water 4.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.00
D/S Thalweg 0.00 93.80
D/S Water Surface Elev 0.00 95.56
D/S Water Surface Elev 5.00 95.57
Outlet Culvert Top 5.00 98.16
Outlet Invert (on substrate) 5.00 93.55
Inlet Culvert Invert (on substrate) 51.00 93.73
Inlet Culvert Top 51.00 98.42
U/S Water Surface Elev 51.00 95.59
U/S Water Surface Elev 56.00 95.59
U/S Thalweg 56.00 94.27

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 24.0

Gear Type: Minnow Trap (B) Trap Duration(h): 24.0

Gear Type: Minnow Trap (C) Trap Duration(h): 24.0

Gear Type: Minnow Trap (D) Trap Duration(h): 24.0

Gear Type: Minnow Trap (E) Trap Duration(h): 24.0

Gear Type: Minnow Trap (F) Trap Duration(h): 24.0

Gear Type: Minnow Trap (G) Trap Duration(h): 24.0

Gear Type: Minnow Trap (H) Trap Duration(h): 24.0

Gear Type: Minnow Trap (I) Trap Duration(h): 24.0

Gear Type: Minnow Trap (J) Trap Duration(h): 24.0

Fish Observations

Species: stickleback-unspecified Life History: Unknown
Total Fish Observed: 28 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Not Recorded Minnow Trap (9)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (4)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (8)  Not Recorded Minnow Trap (1)  Not Recorded Minnow Trap (4)

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 46 Fish Measured: 13 Fork Lengths (mm) Min: 35 Max: 150 Mean: 74
Collected/Observed by Gear Type: Not Recorded Minnow Trap (13)  Not Recorded Minnow Trap (5)  Not Recorded Minnow Trap (6)  Not Recorded Minnow Trap (8)  Not Recorded Minnow Trap (13)  Not Recorded Minnow Trap (1)

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 130 Max: 130 Mean: 130
Collected/Observed by Gear Type: Not Recorded Minnow Trap (1)
