Fish Passage Site 10303784
Coordinates (dec. deg.): 58.26760°, -134.63160°
Legal Description: C041S066E33
Region: Southeast
Road Name: North Douglas Pioneer Road
Datum: NAD83
Quad Name / ITM: Juneau B-2
AWC Stream #:
Stream Name: Unnamed
Elevation:
Site Comments: Station 138+65
Survey UPDATE-DPR02
Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gregory Albrecht
Overall Fish Passage Rating:
Tidal:
Backwatered:
Step Pools:
Construction Year:
Comments: Photos and information submitted by ADFG Habitat Biologist Greg Albrecht.
Culvert Measurements
ID: 1 | Structure Type: Circular pipe | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||

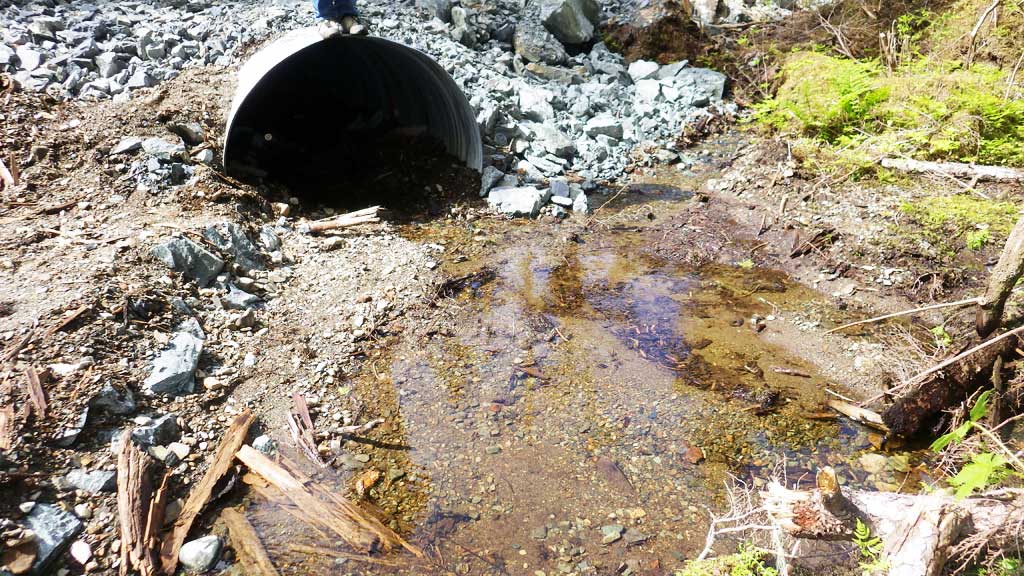

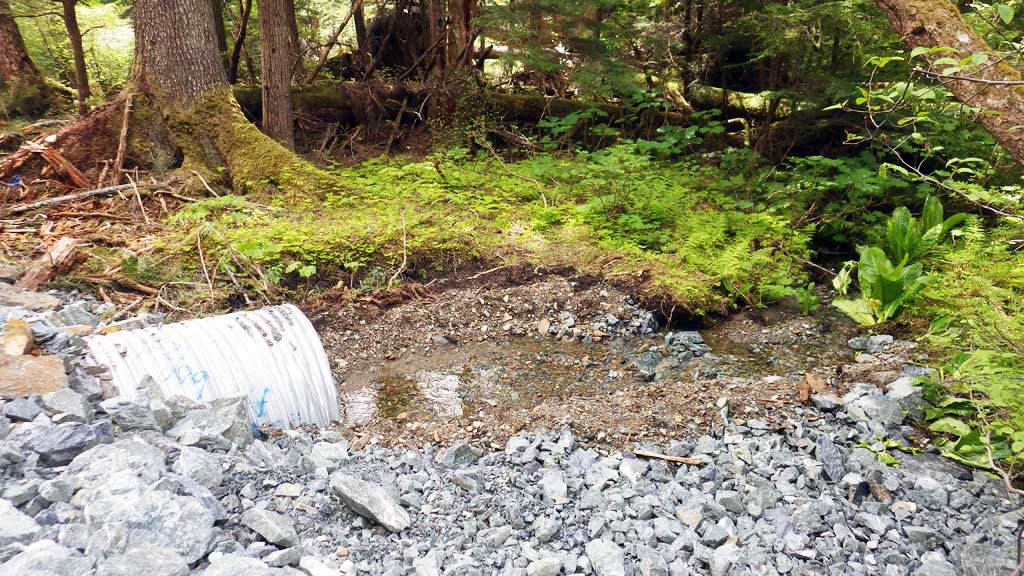

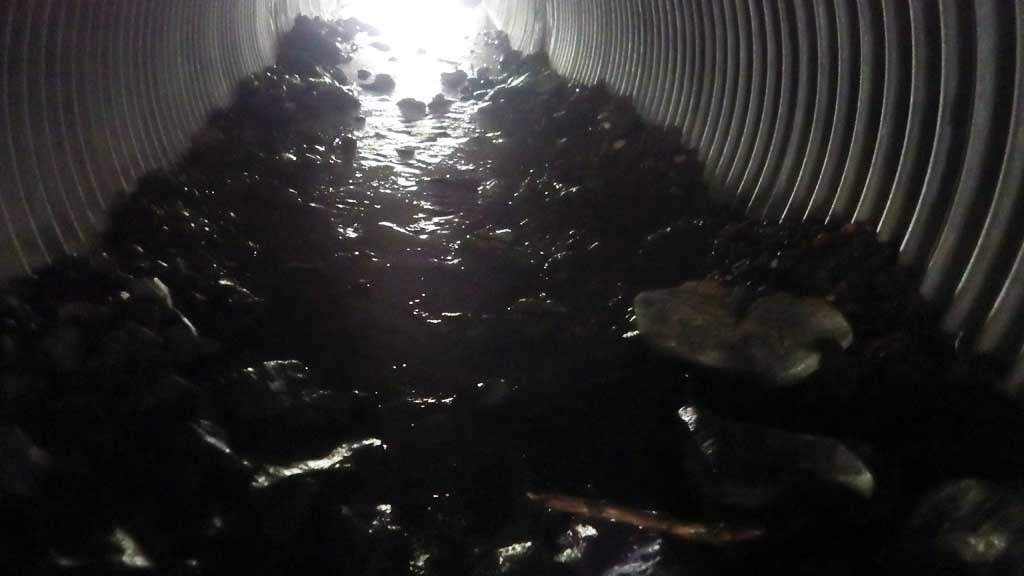

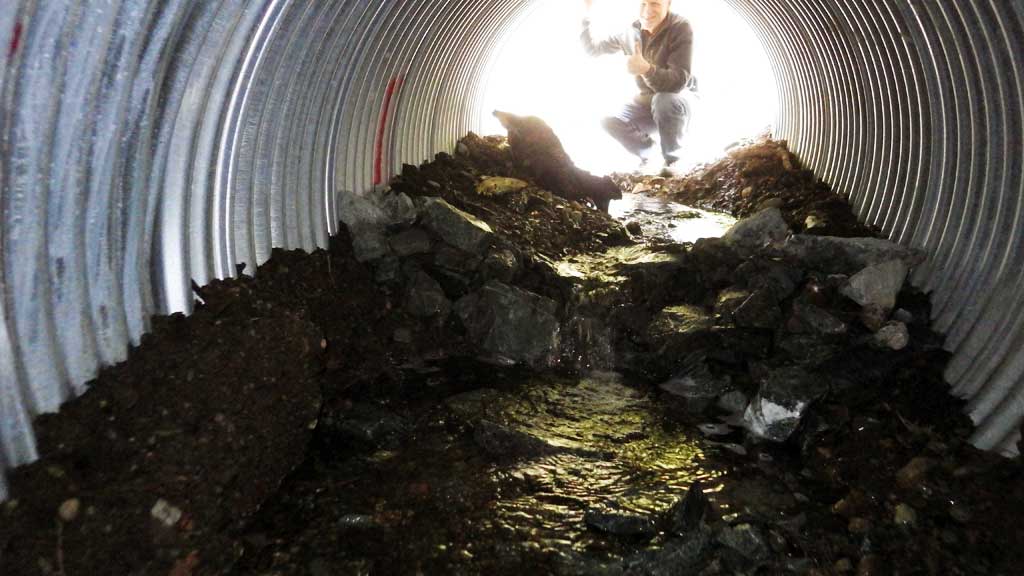

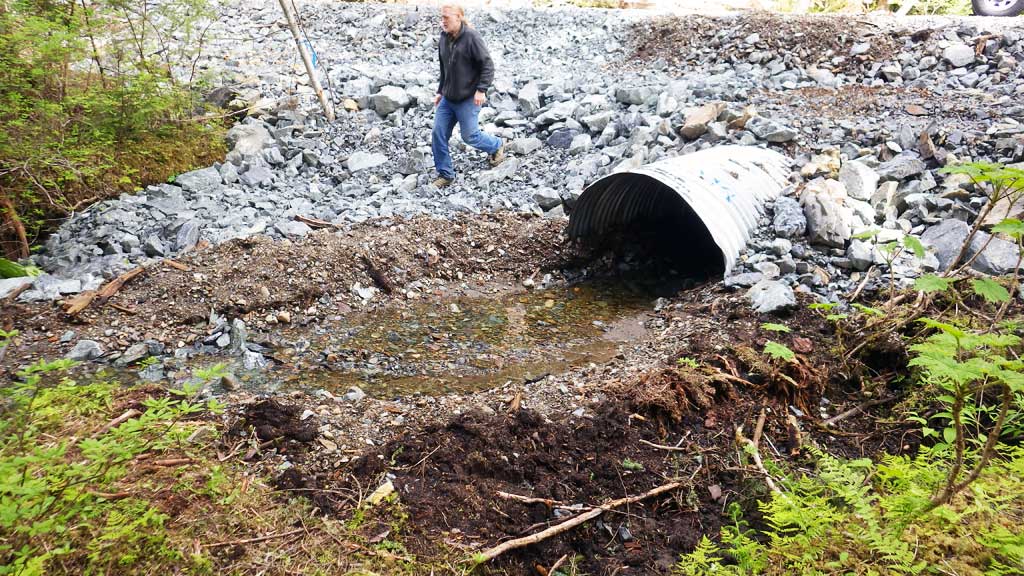

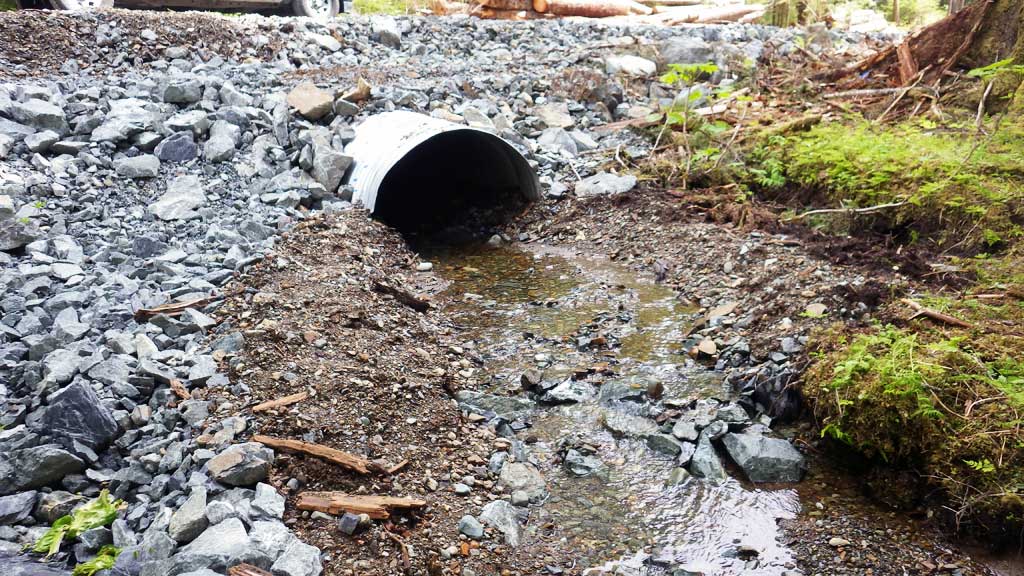

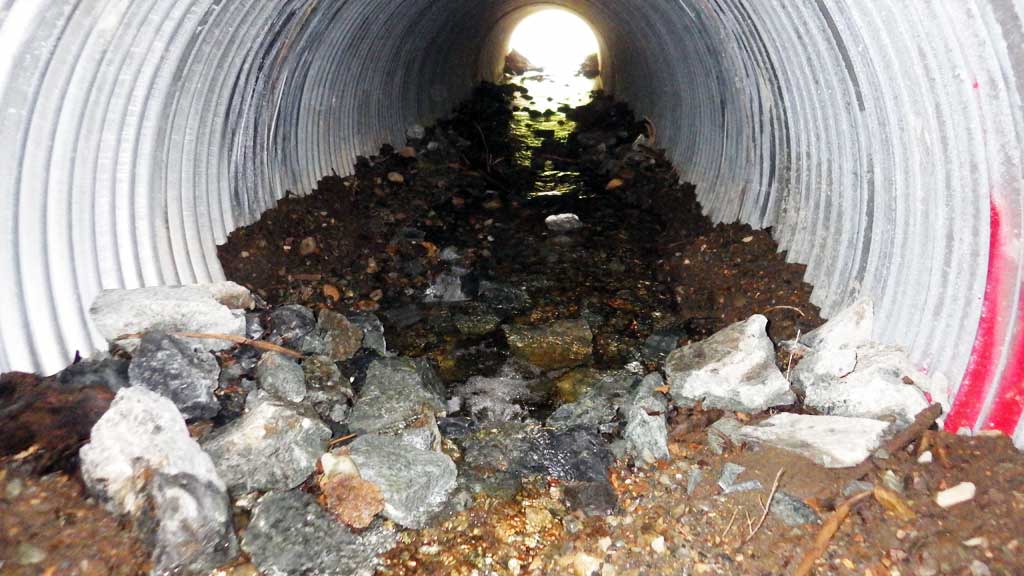

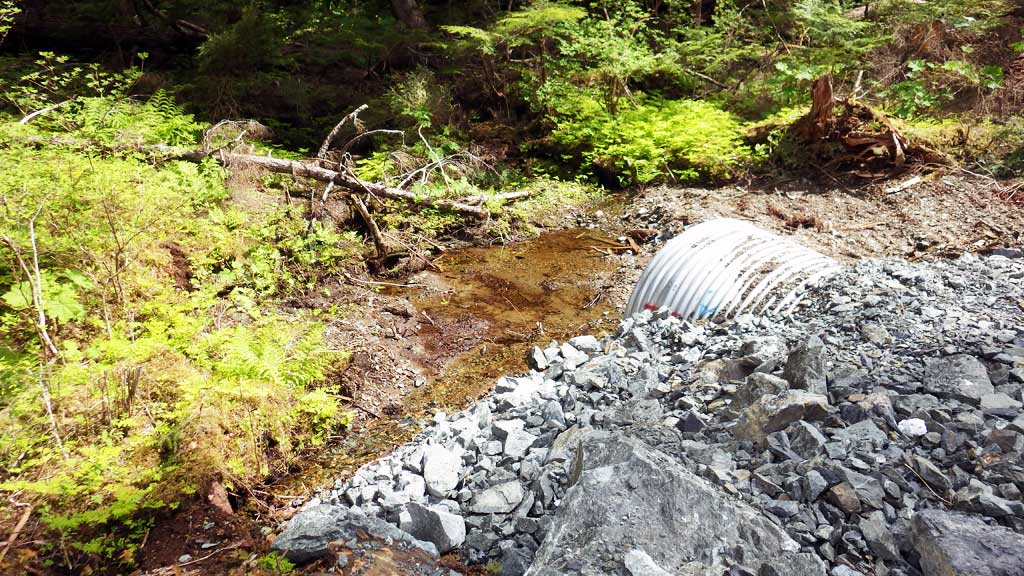

Comments: All culvert information taken from habitat permit and has not been verified. Culvert has sediment retainment baffles installed. Cuvlert width 5 ft, culvert height 3.3 ft to top of substrate, cuvlert length 52 ft, culvert gradient 7.1%. |
Stream Measurements
|
|
No stream width data available.
Elevations
No elevation data available.
Fish Sampling Efforts
No fish sampling occurred during this survey.
Fish Observations
No fish observations occurred during this survey.
Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
