Fish Passage Site 10303487

Coordinates (dec. deg.): 58.37120°, -134.61330°
Legal Description: C040S065E25
Region: Southeast
Road Name: Private

Datum: NAD83
Quad Name / ITM: Juneau B-2
AWC Stream #: 111-50-10490-2020-3008
Stream Name: Casa Del Sol Tributary

Elevation:

Site Comments: Site is about 200 feet downstream from site 10303049 on the Glacier Highway.

Survey Date: Feb 26, 2016

Survey UPDATE-CDS01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gregory Albrecht

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:

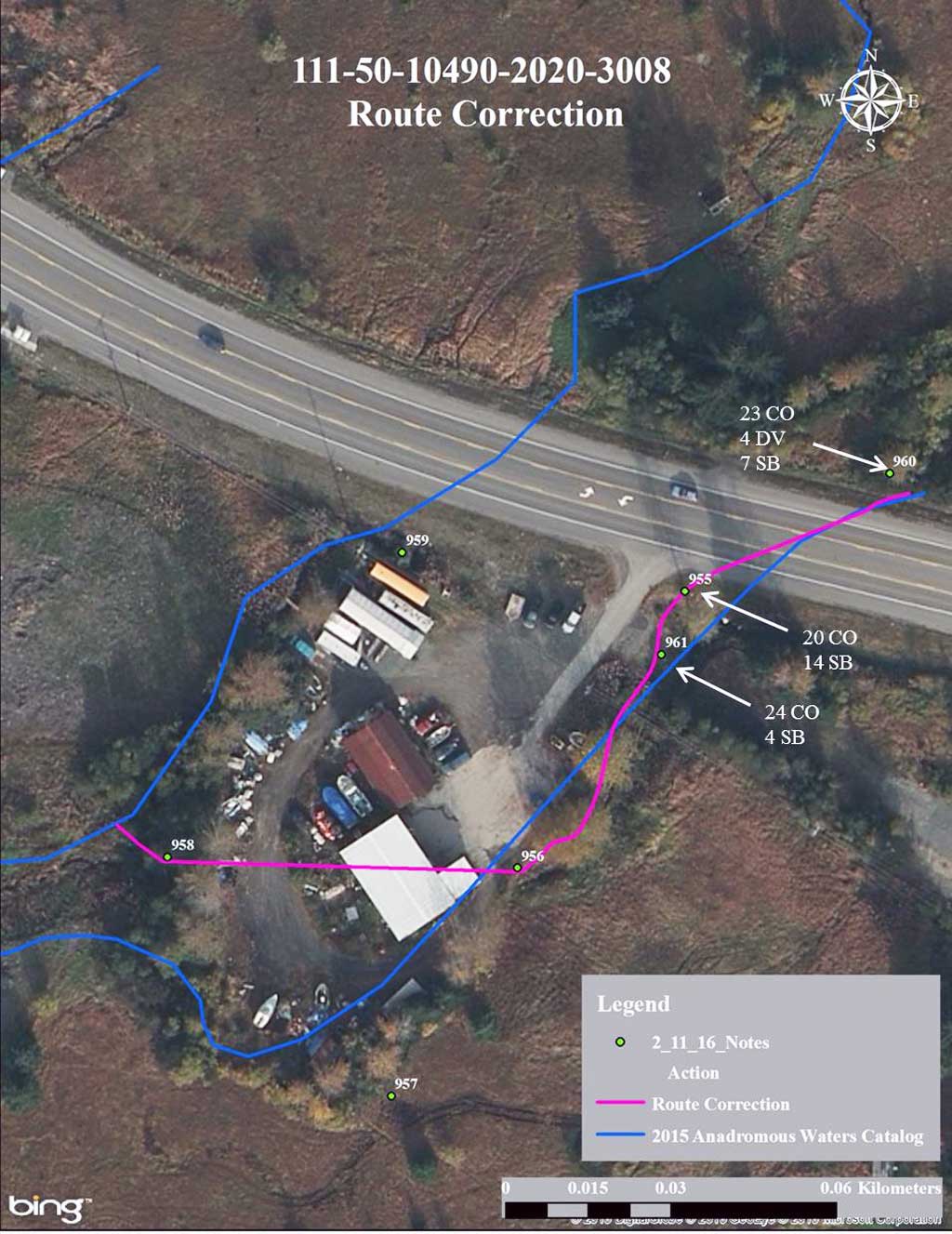

Comments: Site submitted by Greg Albrecht HBIII, Juneau. Culvert runs under a building and lot on private property. Old AWC lines showed this creek running around property, correction has been submitted. Beaver dam debris was observed at outlet and may have caused water to back up and flow around property at one time. Culvert was installed prior to this creek being added to the AWC. Coho and Dolly Varden captured above culvert.

Culvert Measurements

ID: 1 Structure Type: Circular pipe Fish Passage Rating: Black

Length(ft):

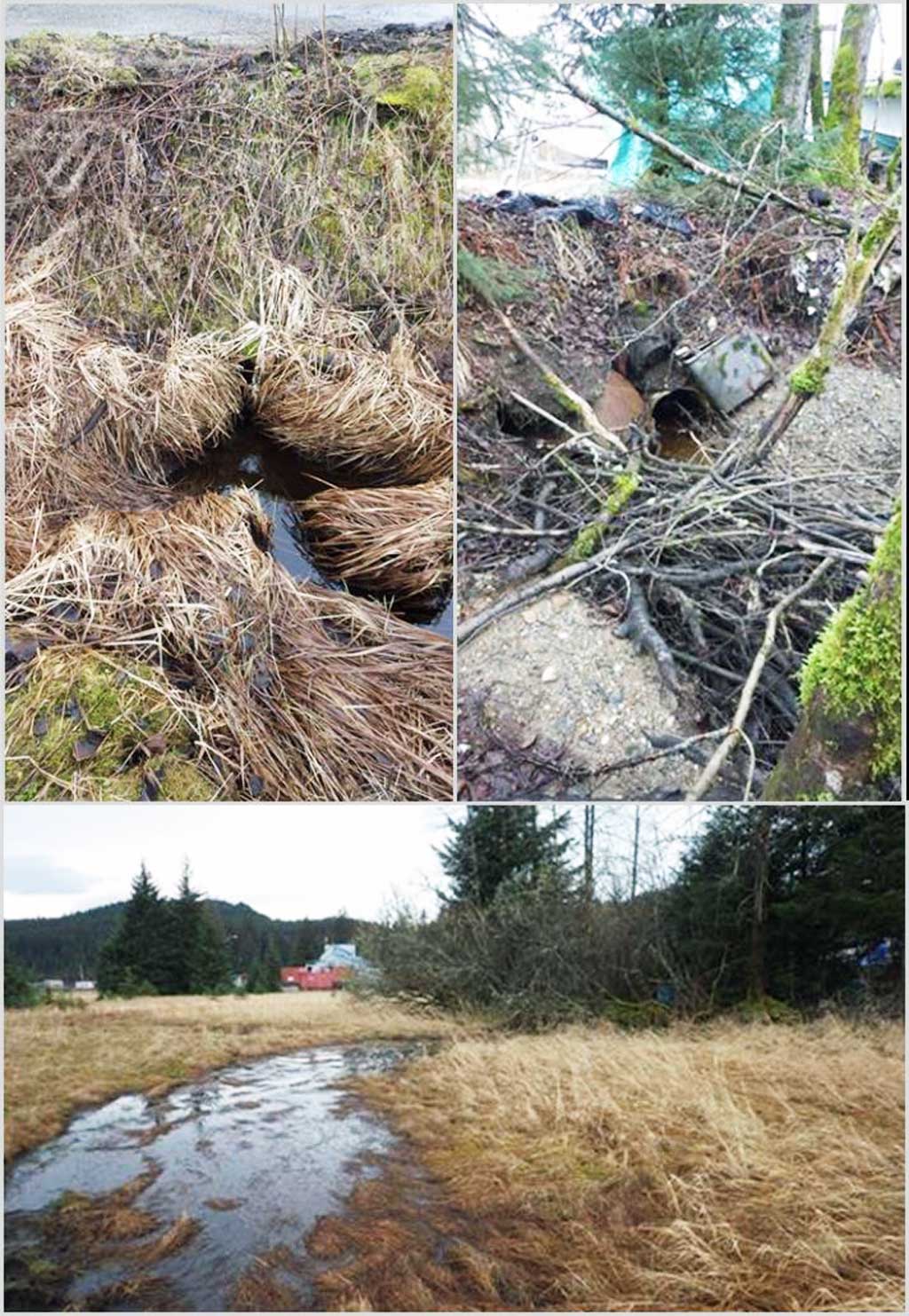

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert length is estimated from satillite imagery at 214 ft. Culvert diameter estimated at 1.5 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Photos
