Fish Passage Improvement site 10303024

Fish Passage Site 10303024

Coordinates (dec. deg.): 58.36602°, -134.61705°
Legal Description: C040S065E25
Region: Southeast

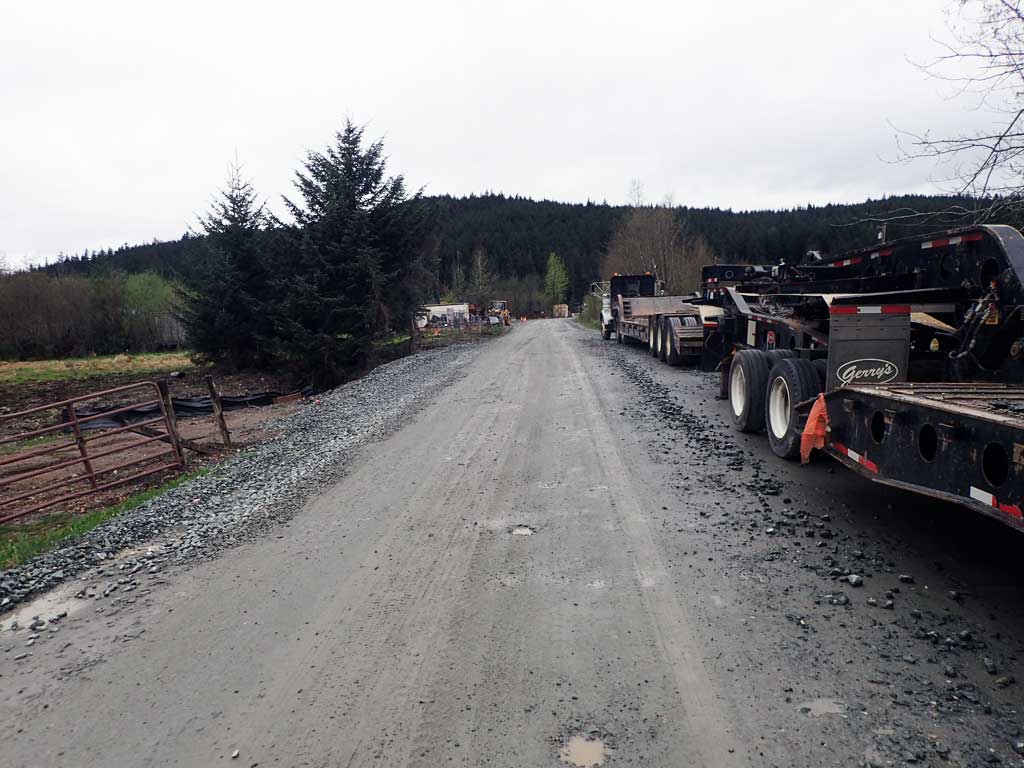

Road Name: Crazy Horse Road

Datum: NAD83
Quad Name / ITM: Juneau B-2
AWC Stream #:
Stream Name: Casa del Sol Creek

Elevation:

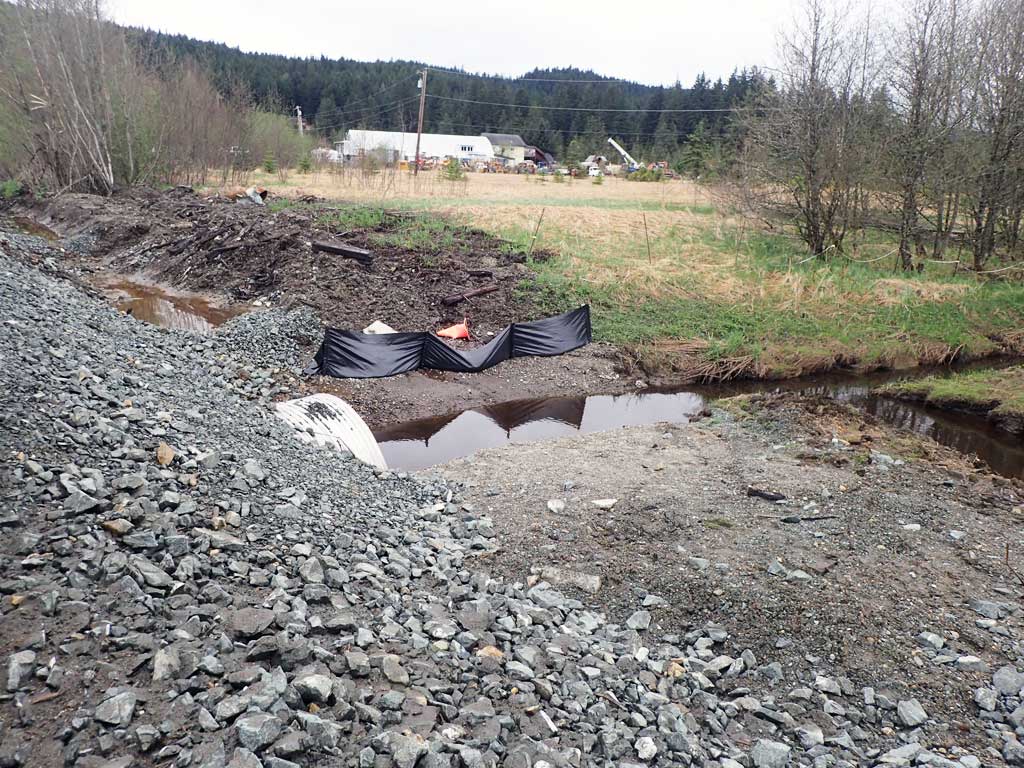

Site Comments: Downstream is horse pasture, then golf course. Upstream runs through meadows.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-3024

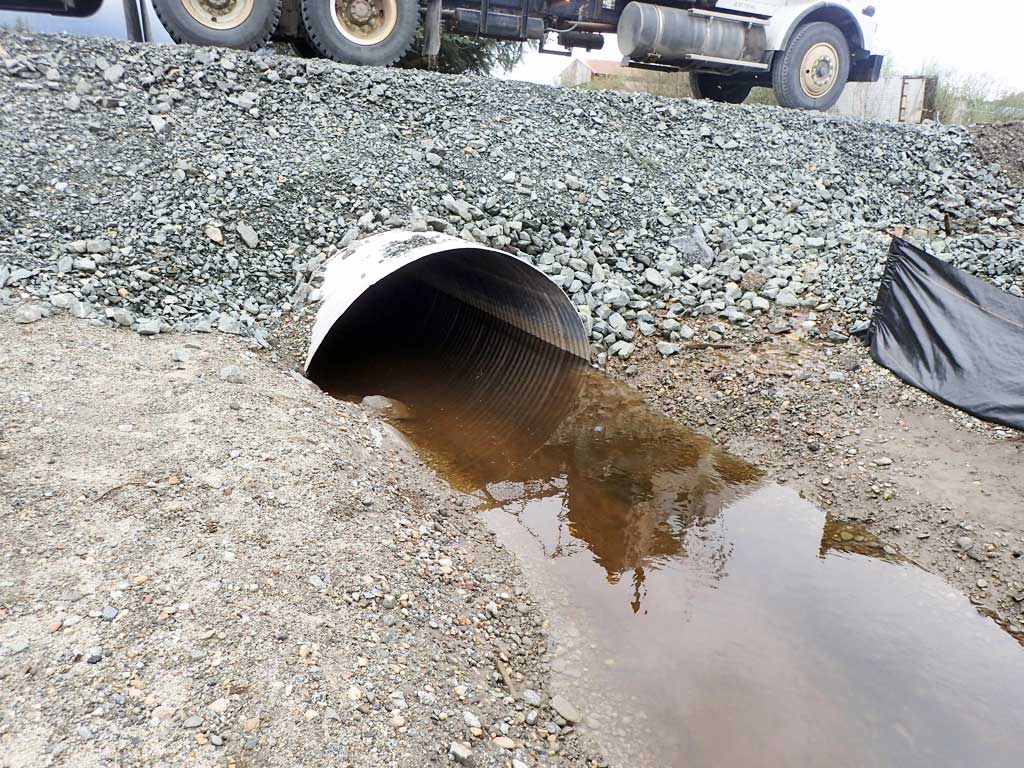

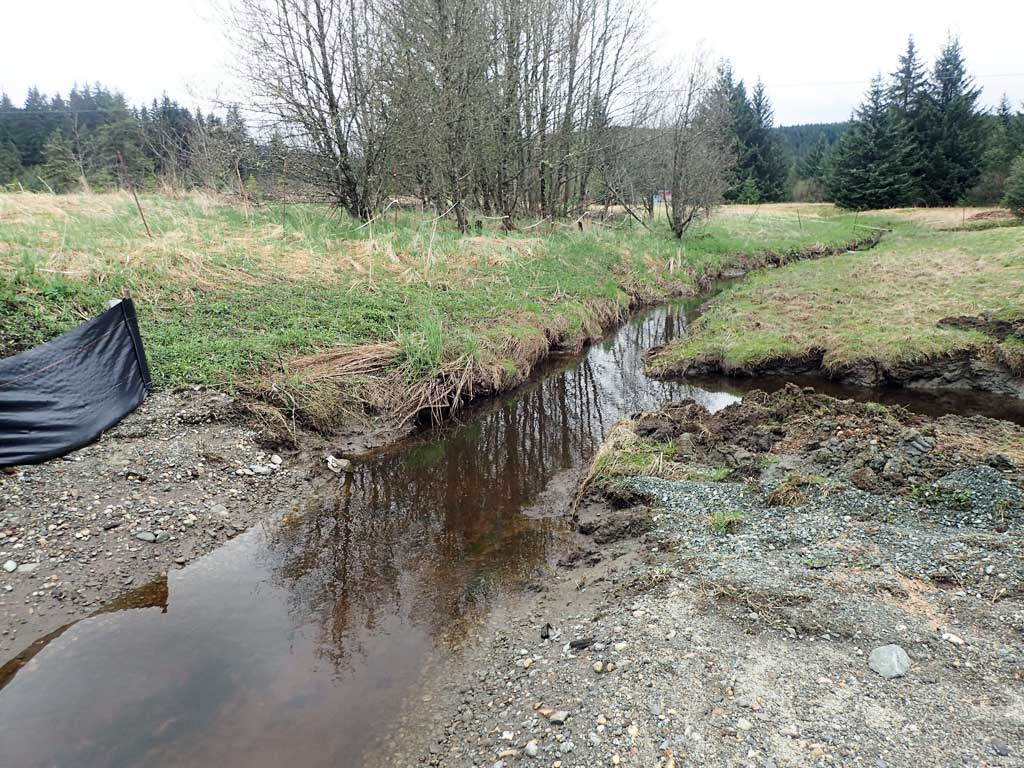

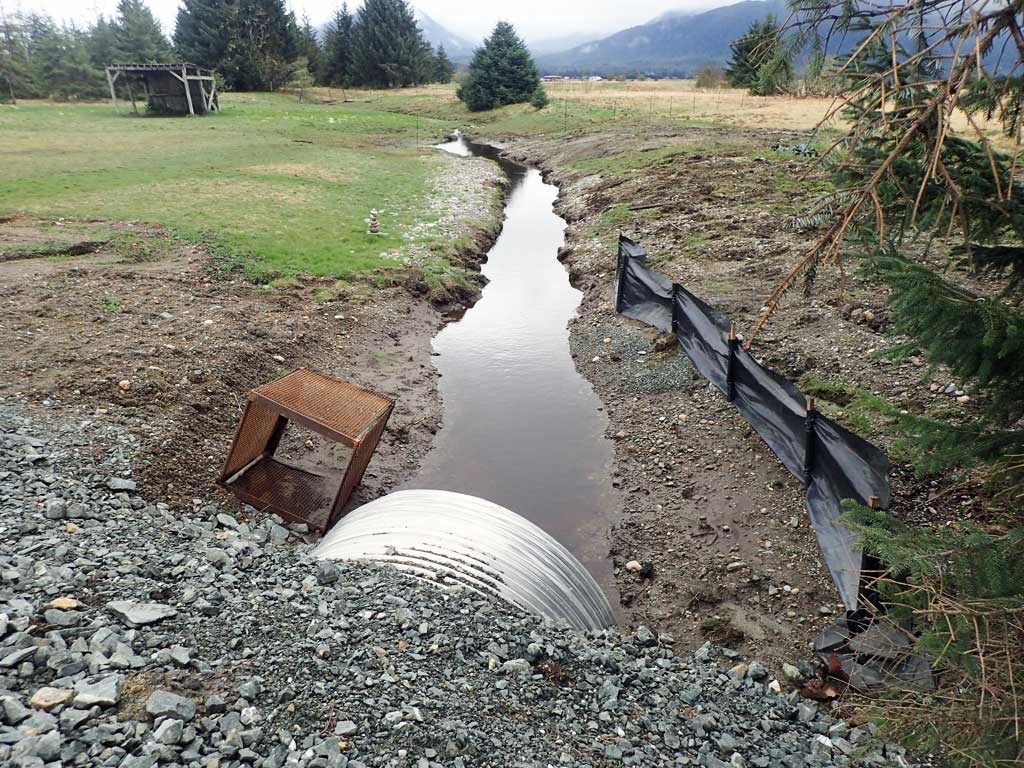

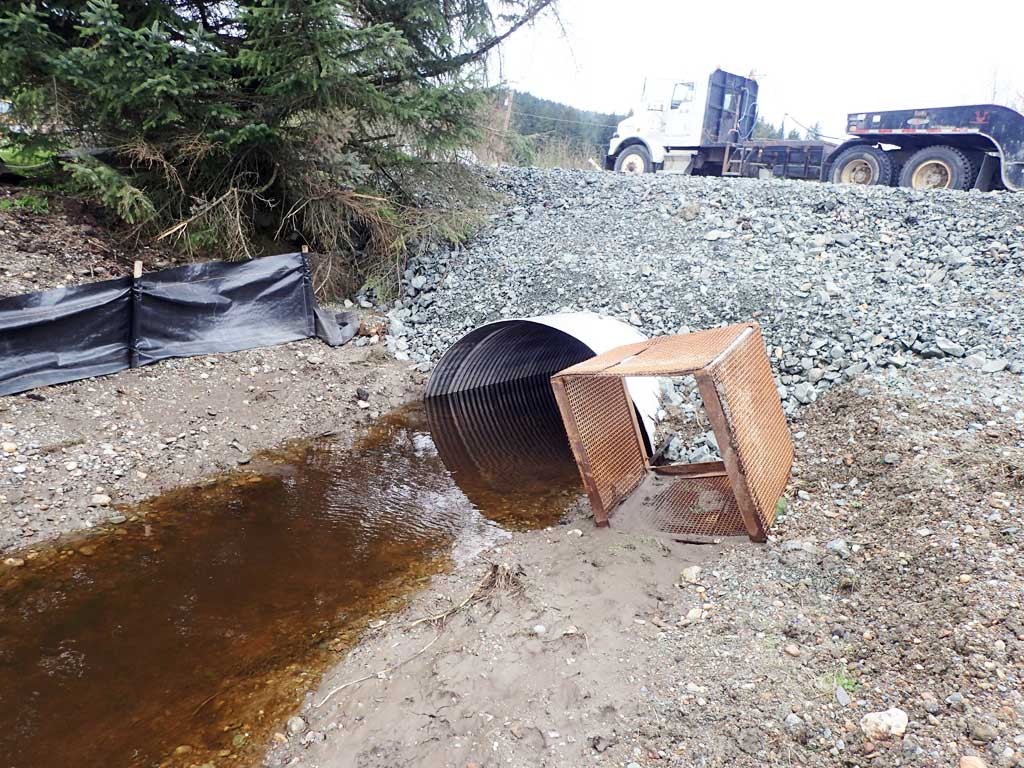

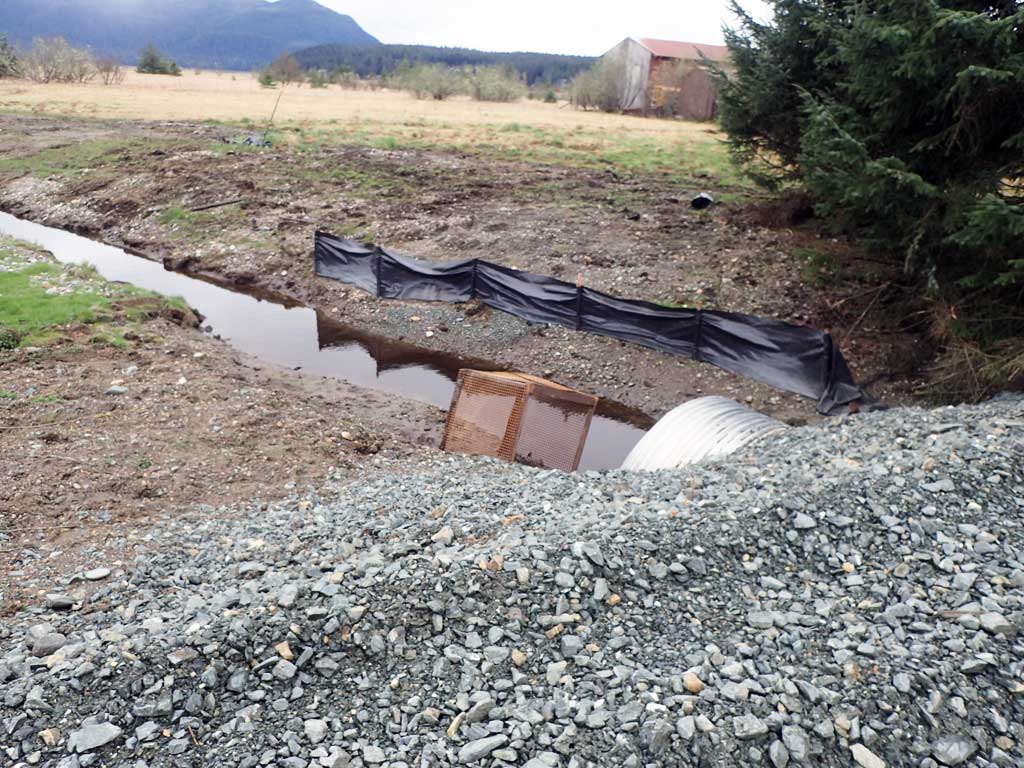

site photos

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year: 2017

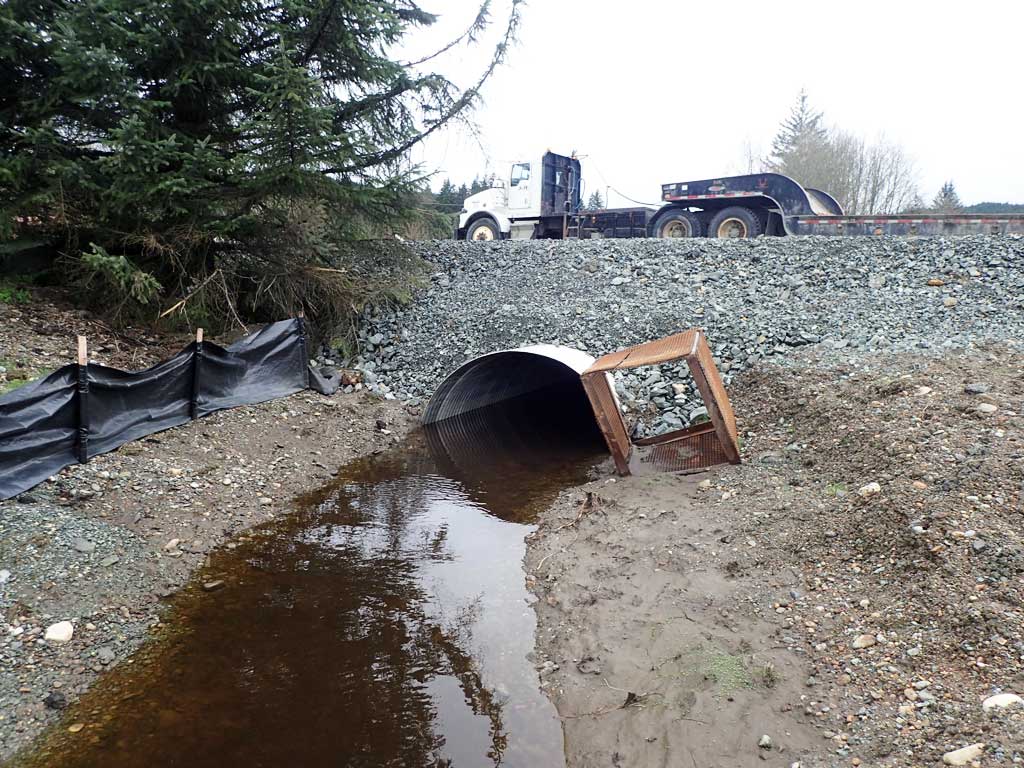

Comments: Culvert has been replaced. Site visited May 11th for site photos, but site still needs full site reassessment. Water level appeared to be flat through culvert and culvert size near OHW width.

Culvert Measurements

ID: 1

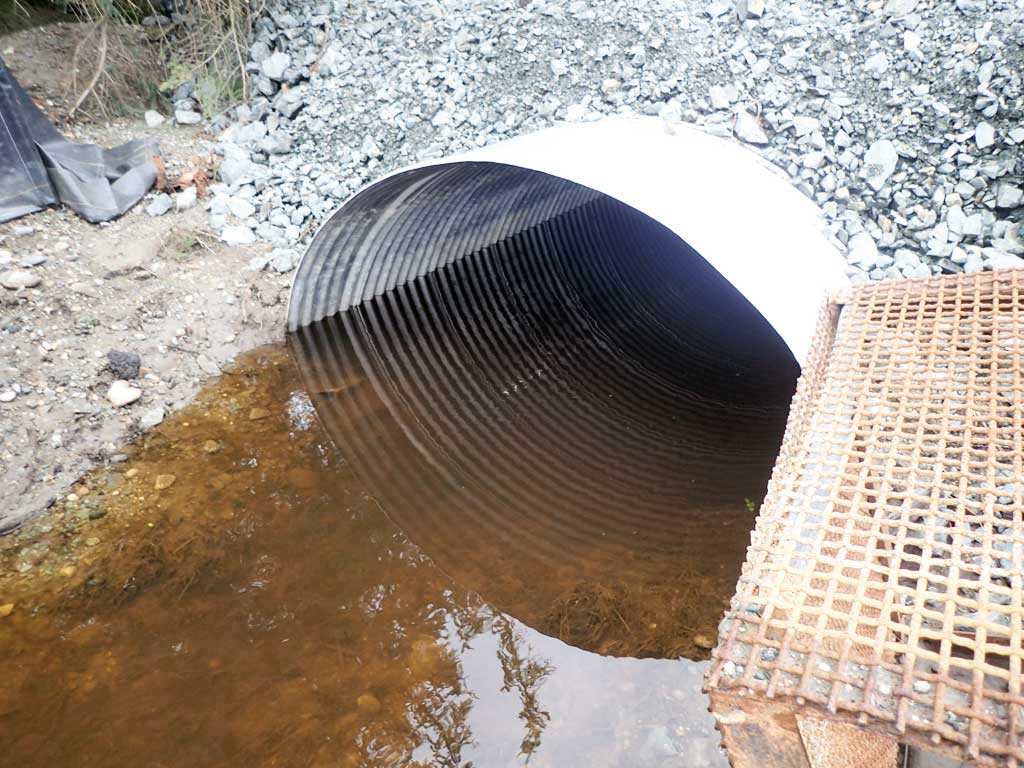

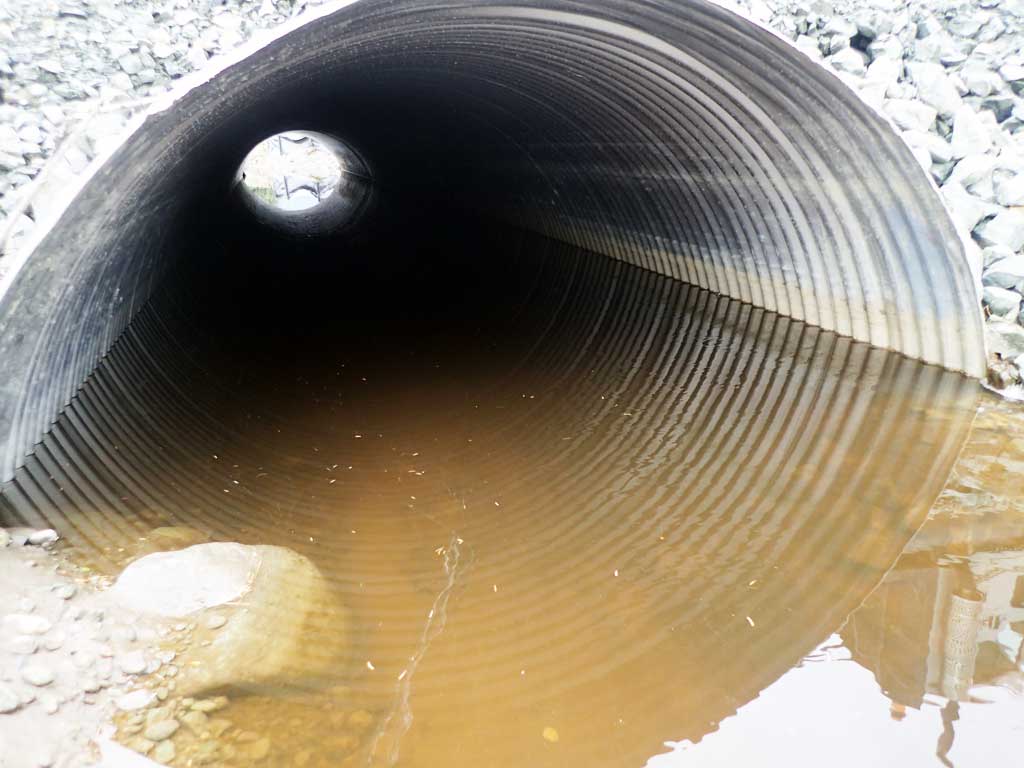

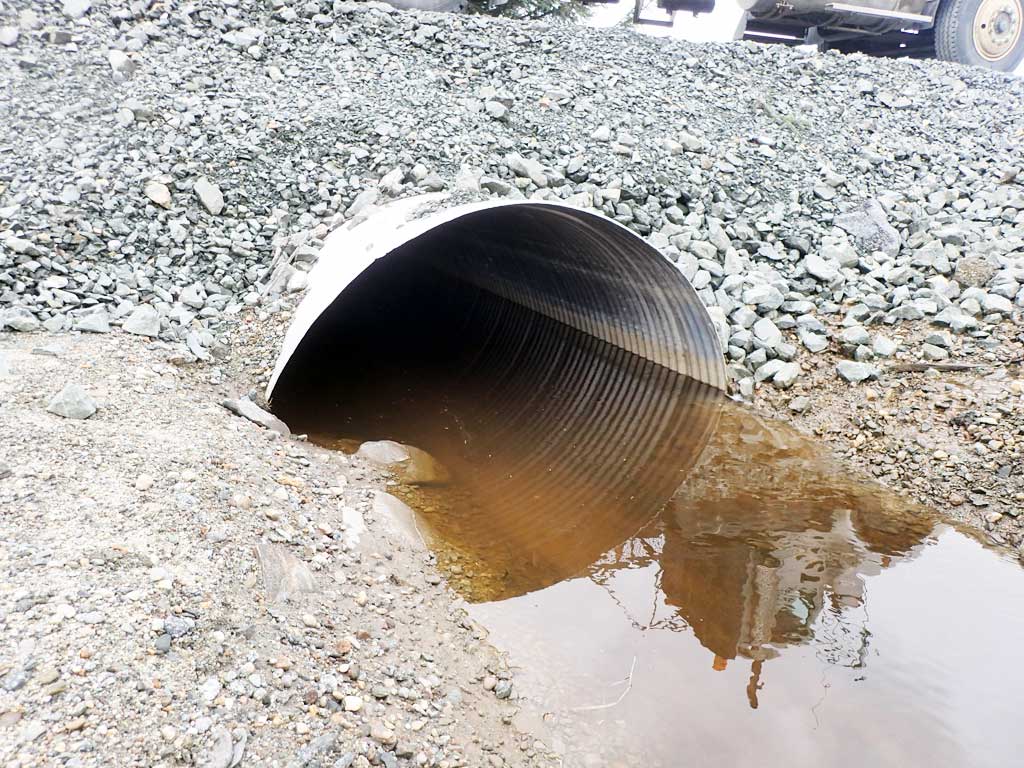

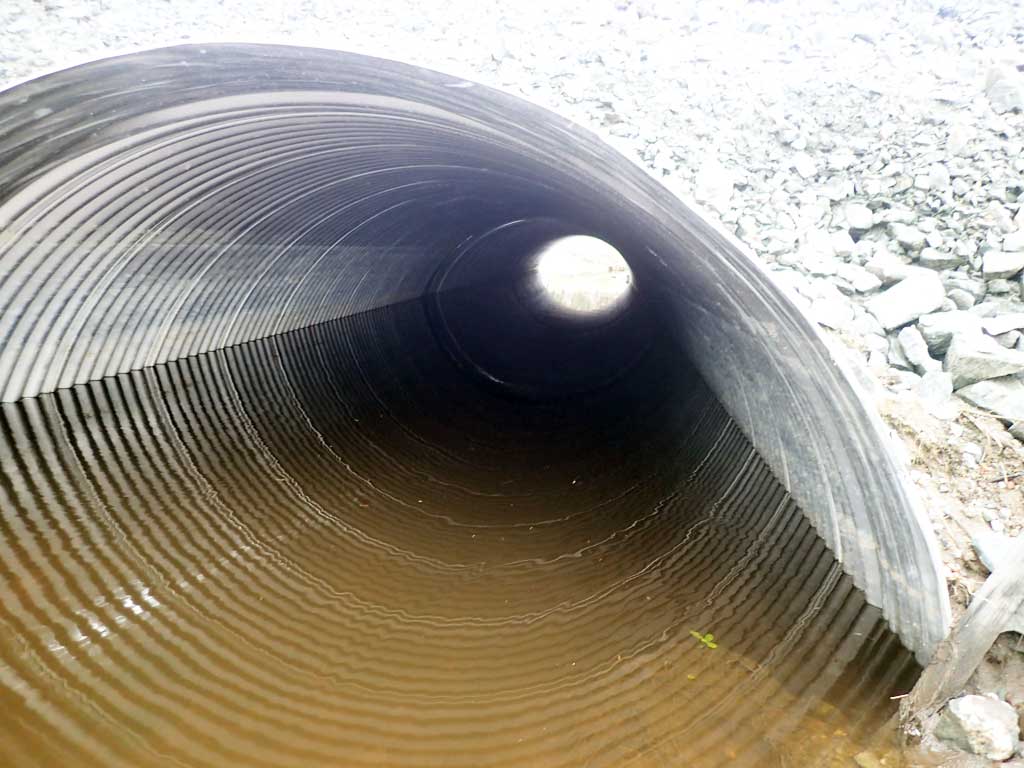

Structure Type: Circular pipe (Corrugated aluminum)

Fish Passage Rating: Green

Length(ft):

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.):

Corrugation Width(in.):

Condition Rating(1-5): 5

Approach Angle:

Sedimentation At Inlet: No

Inlet Substrate:

Outlet Substrate:

	Inlet	Outlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?: Maybe

Baffles Present: No

Embedded?: Yes

Embedded Depth(ft): 3.0

Outfall Height: 0.0

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

Comments: All culvert measurements taken from site plans and have not been verified. Culvert width 8 ft. Culvert height 5 ft to top of substrate, substrate depth 3 ft. Culvert length 60 ft. Culvert gradient 0%.

Culvert Observations:
