Fish Passage Improvement site 10302907

Fish Passage Site 10302907

Coordinates (dec. deg.): 59.17089°, -135.38731°
Legal Description: C031S060E19
Region: Southeast
Road Name: Cannery Lane

Datum: NAD83
Quad Name / ITM: Skagway A-2
AWC Stream #: 115-32-10230
Stream Name: Cannery Creek

Elevation:

Site Comments: On road leading to Some Things Fishy gift shop.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-MUD06

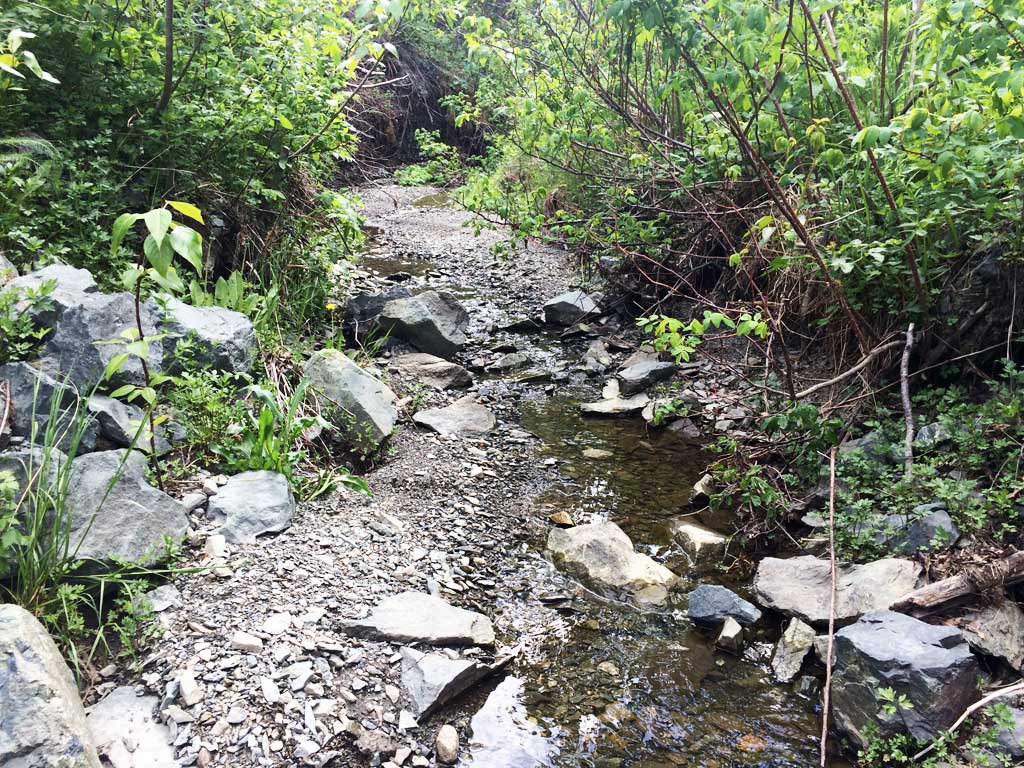

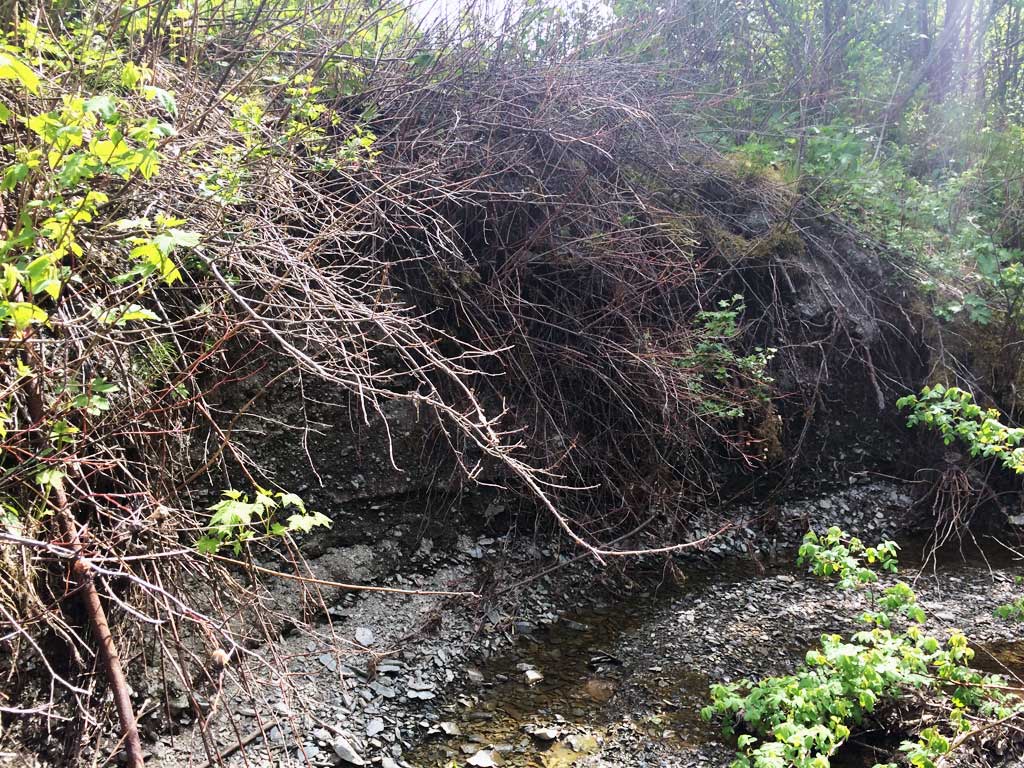

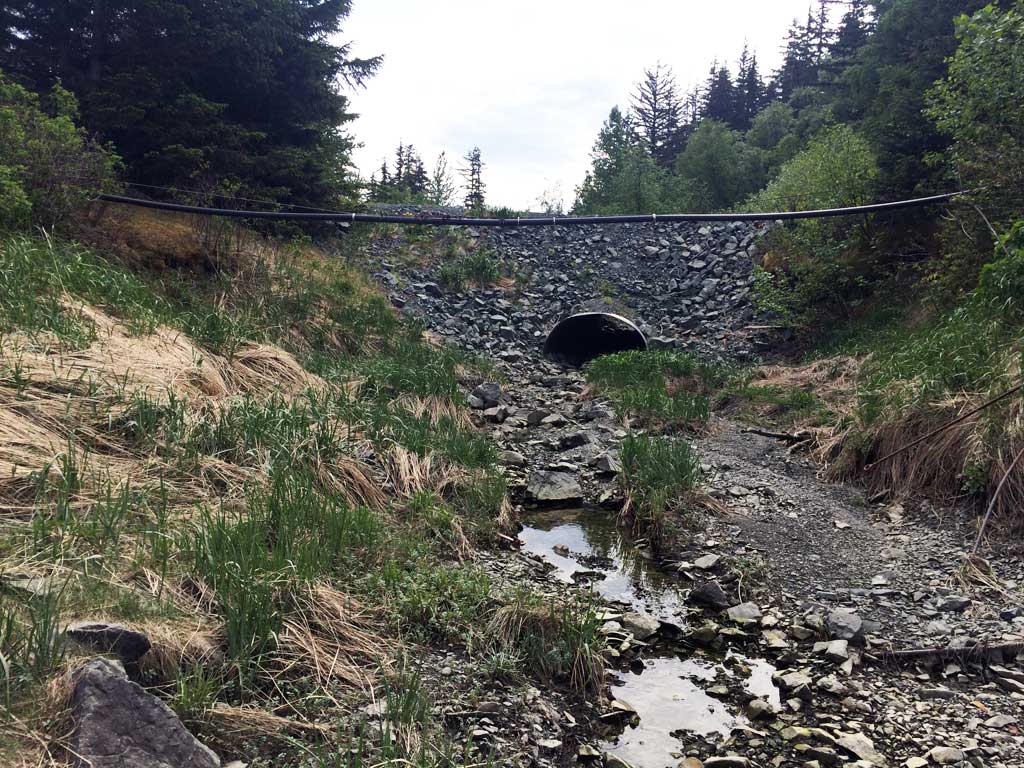

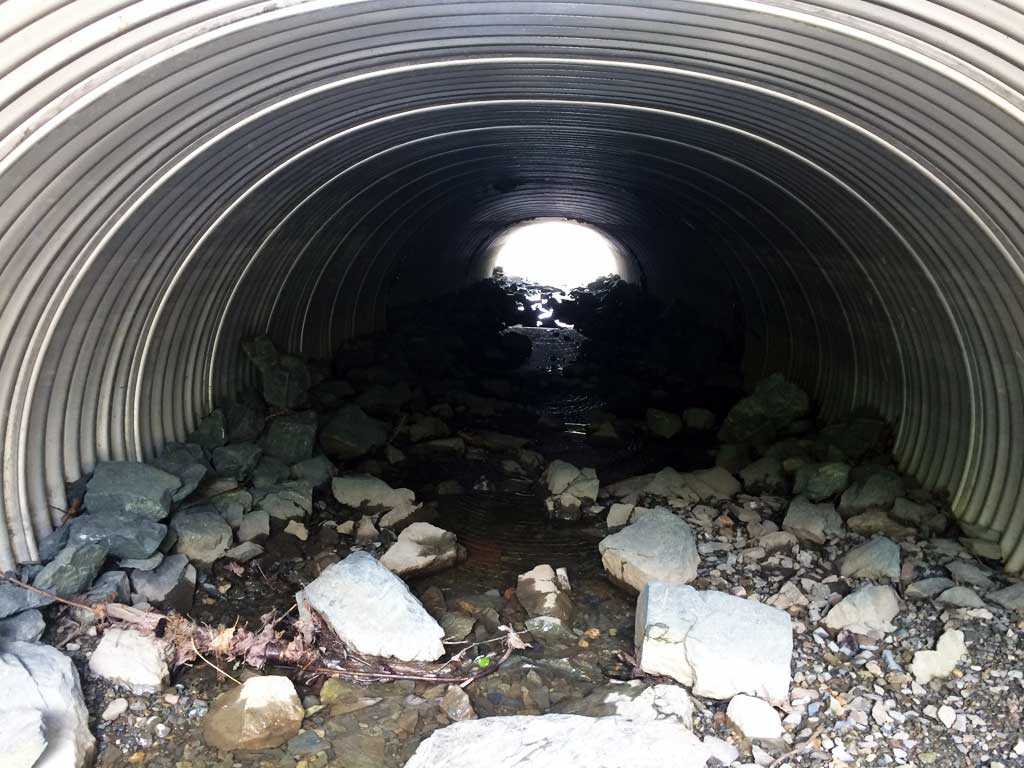

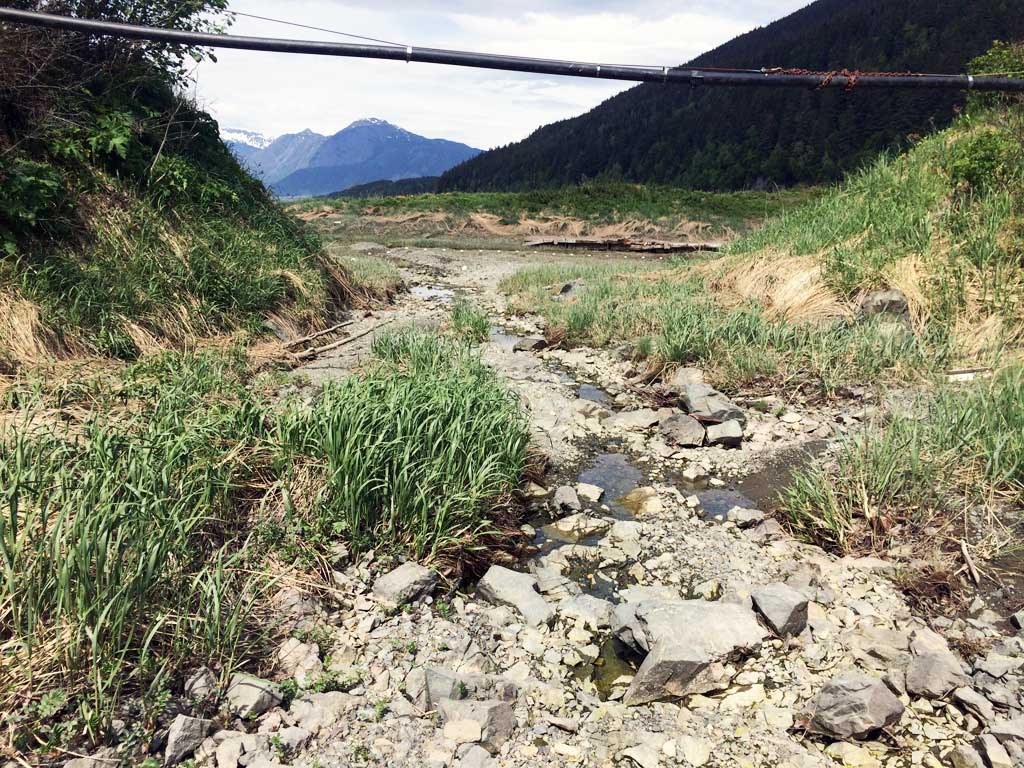

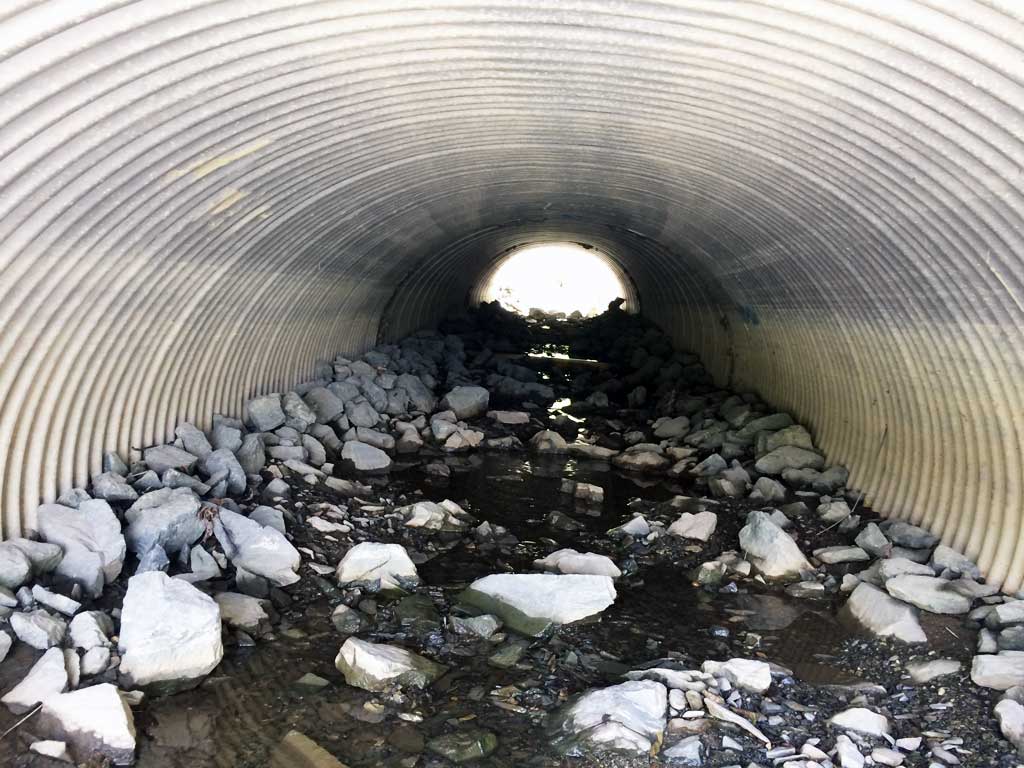

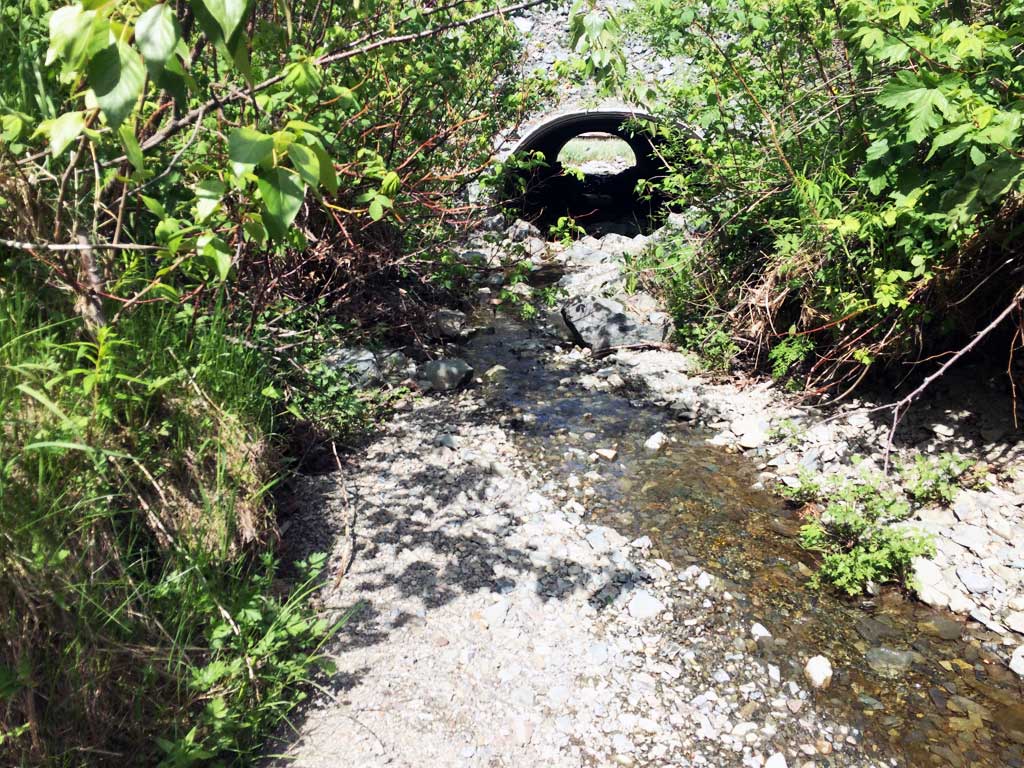

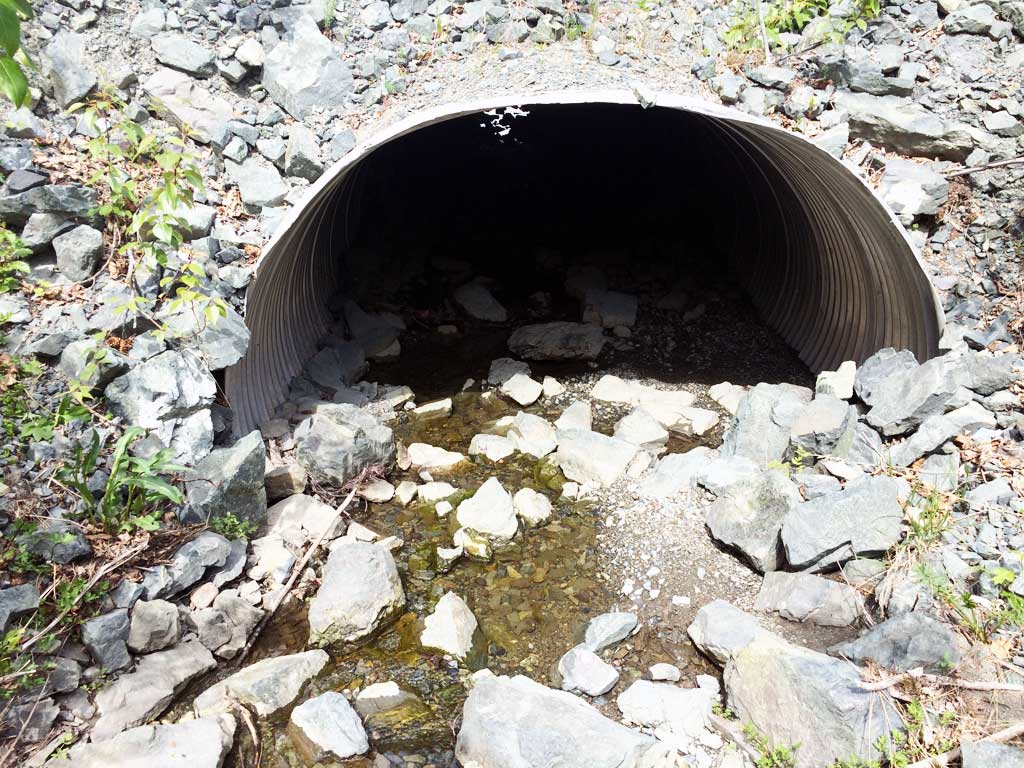

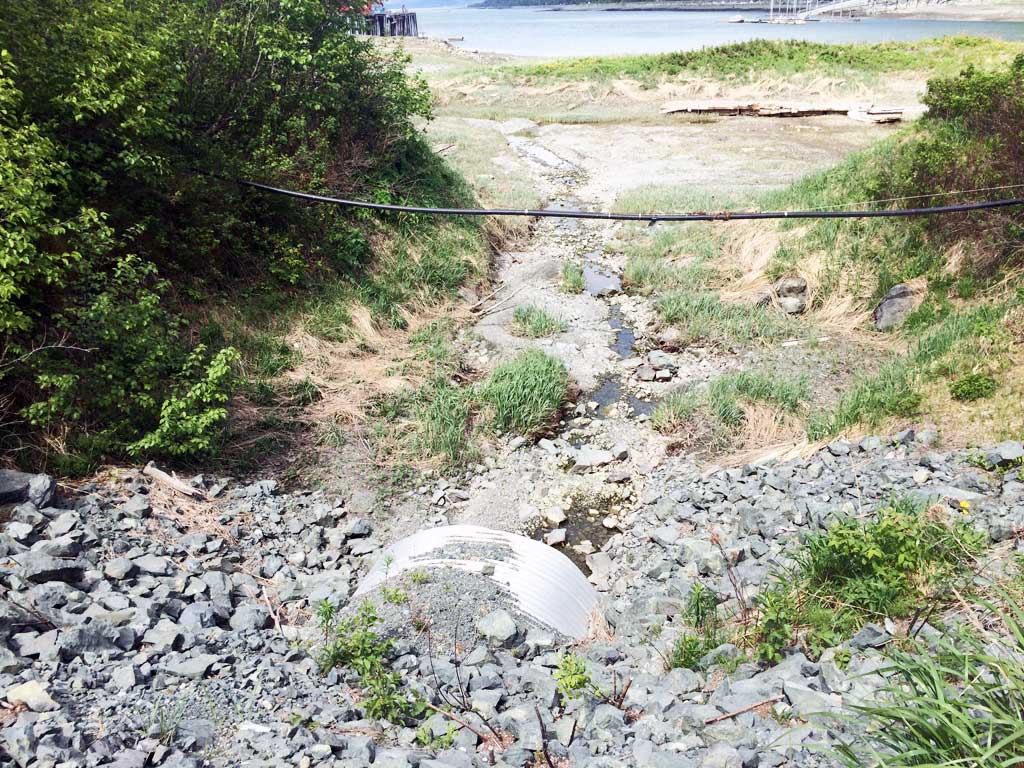

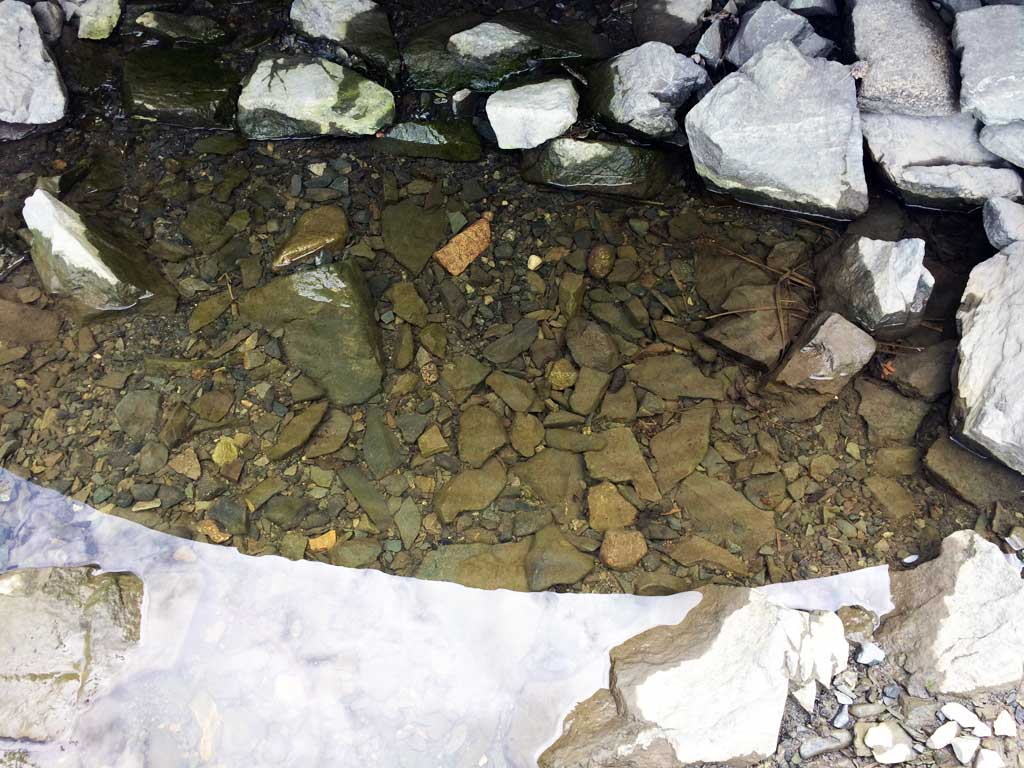

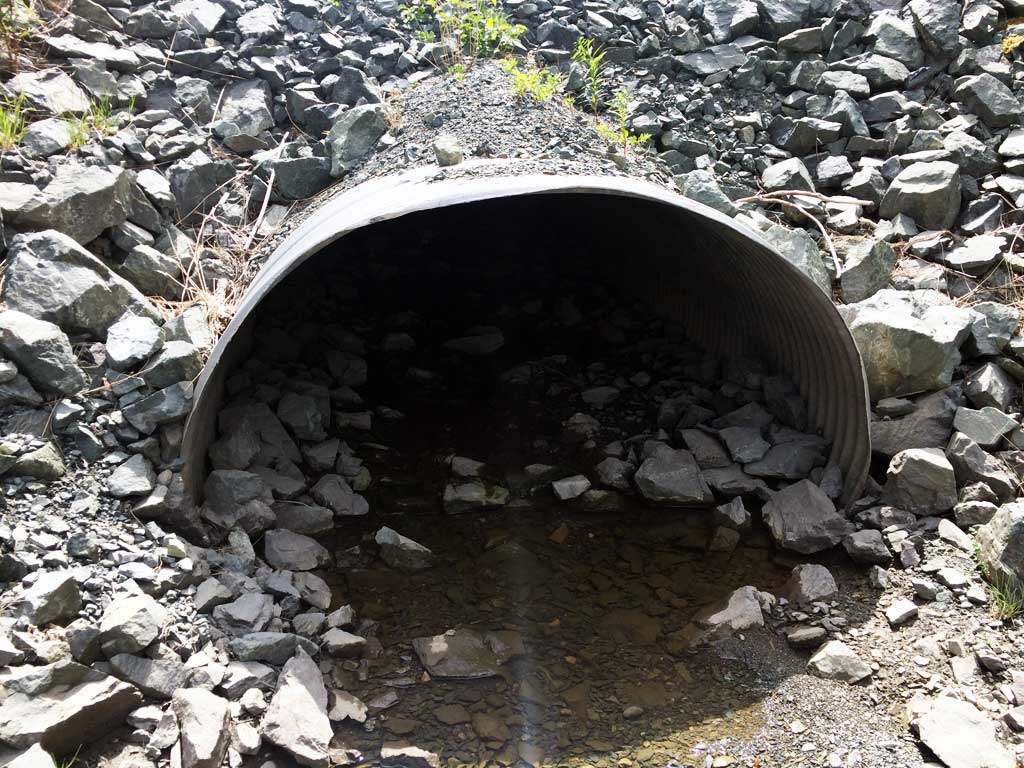

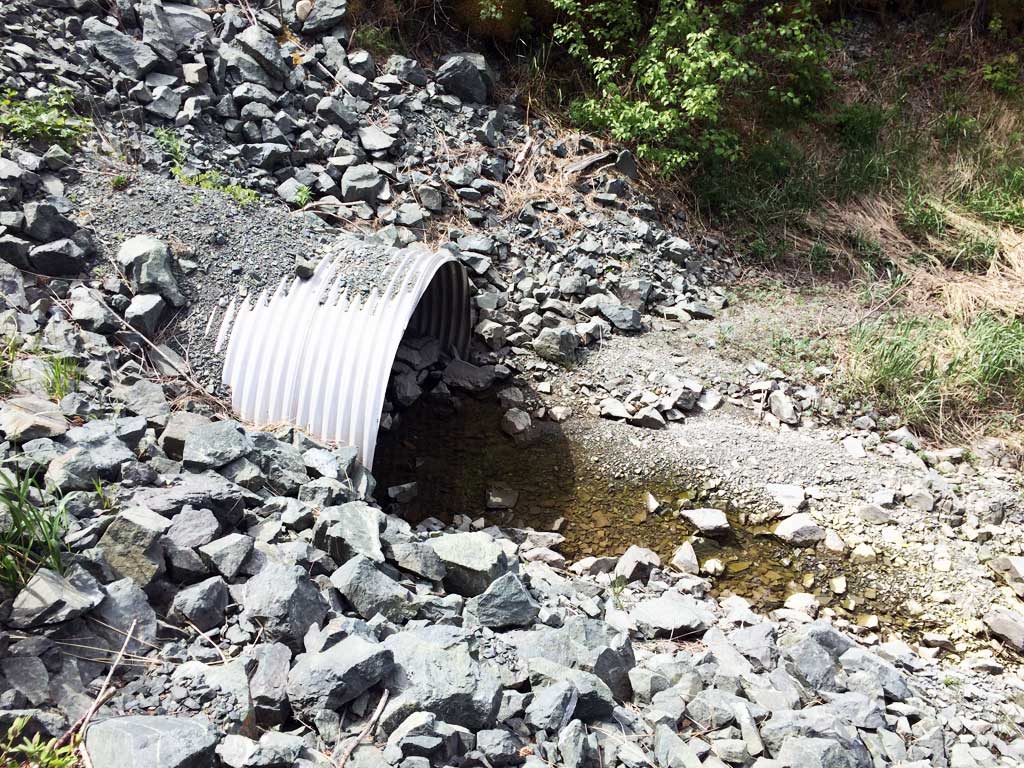

site photos

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Green

Tidal: Yes
Backwatered:

Step Pools:
Construction Year: 2014

Comments: Site has been replaced in April 2014. Photos provided by USFWS. Site needs to be resurveyed. New photos added from a May 2017 site visit.

Culvert Measurements

ID: 1

Structure Type: Pipe-arch (Corrugated aluminum)

Fish Passage Rating: Green

Length(ft):

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.): 1.0

Corrugation Width(in.): 3.0

Condition Rating(1-5): 5

Approach Angle:

Sedimentation At Inlet: No

Inlet Substrate: Gravel

Outlet Substrate: Gravel

	Inlet	Outlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?: No

Baffles Present: No

Embedded?: Yes

Outfall Height:

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

Comments: All measurements taken from site plans and are not surveyed measurements. Culvert dimensions are without substrate. Culvert does have baffles to hold substrate. Cuvert width 7.9 ft. Culvert height 5.6 ft. Substrate depth 2 ft. Culvert length 60 ft. Culvert gradient 4%.
